1５

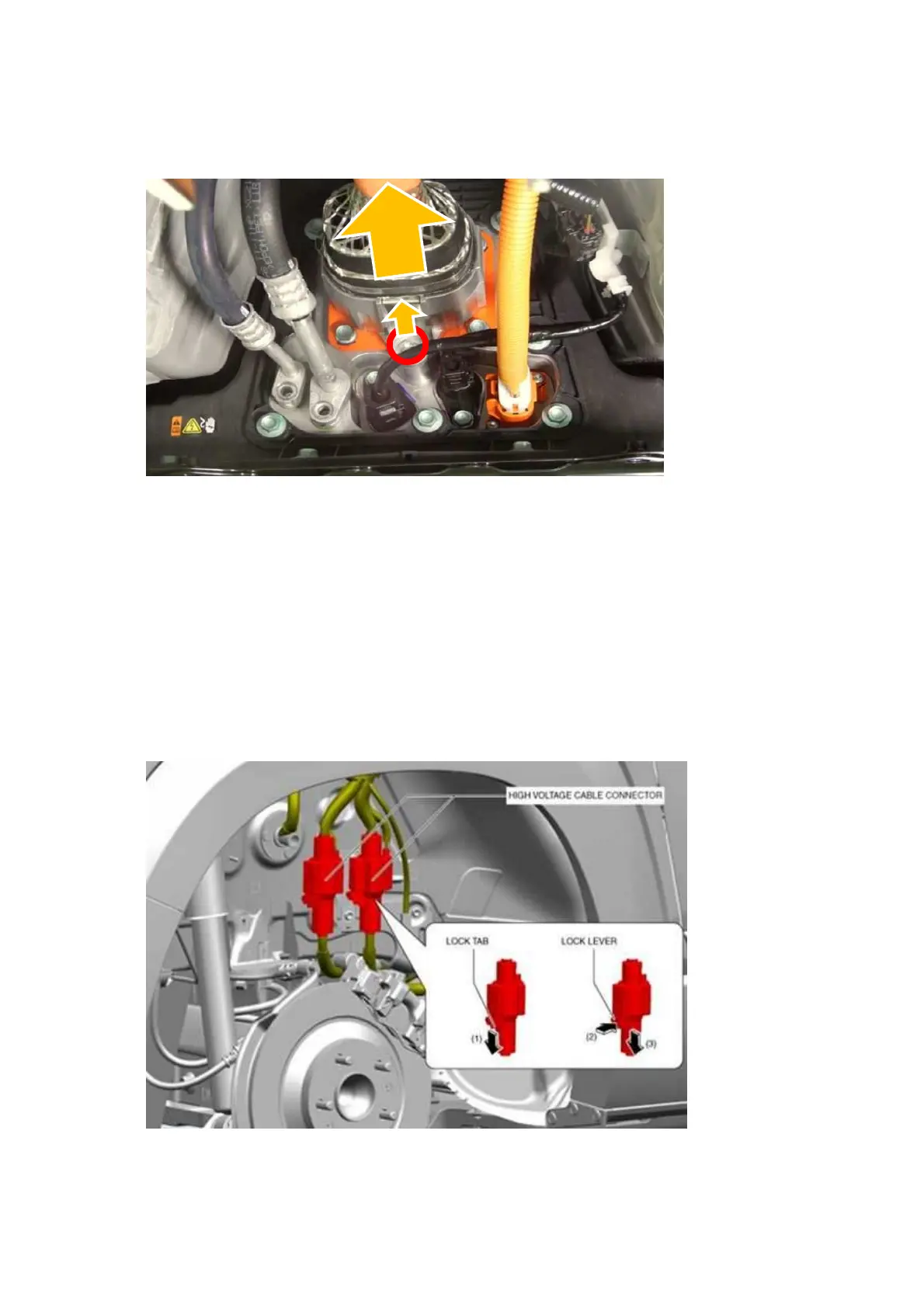

Disconnect the high voltage cable (high voltage battery side).
・
After disconnecting the high voltage cable, wear insulating gloves, wrap the terminals
with electrical tape, and then insulate.
16) Remove the rear wheel and tire (RH).
17) Remove the rear mudguard (RH).
18) Wear insulating gloves and disconnect the high voltage cable connectors using the following
procedure.
・
After disconnecting the high voltage cable connectors, wear insulating gloves and wrap
the terminals with electrical tape to insulate them.
(1) Pull out the lock tab.
(2) Pull out the connector while pressing the lock lever.
20
