Climate Control System
Form No. 8R09-EA-02G
▼
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed

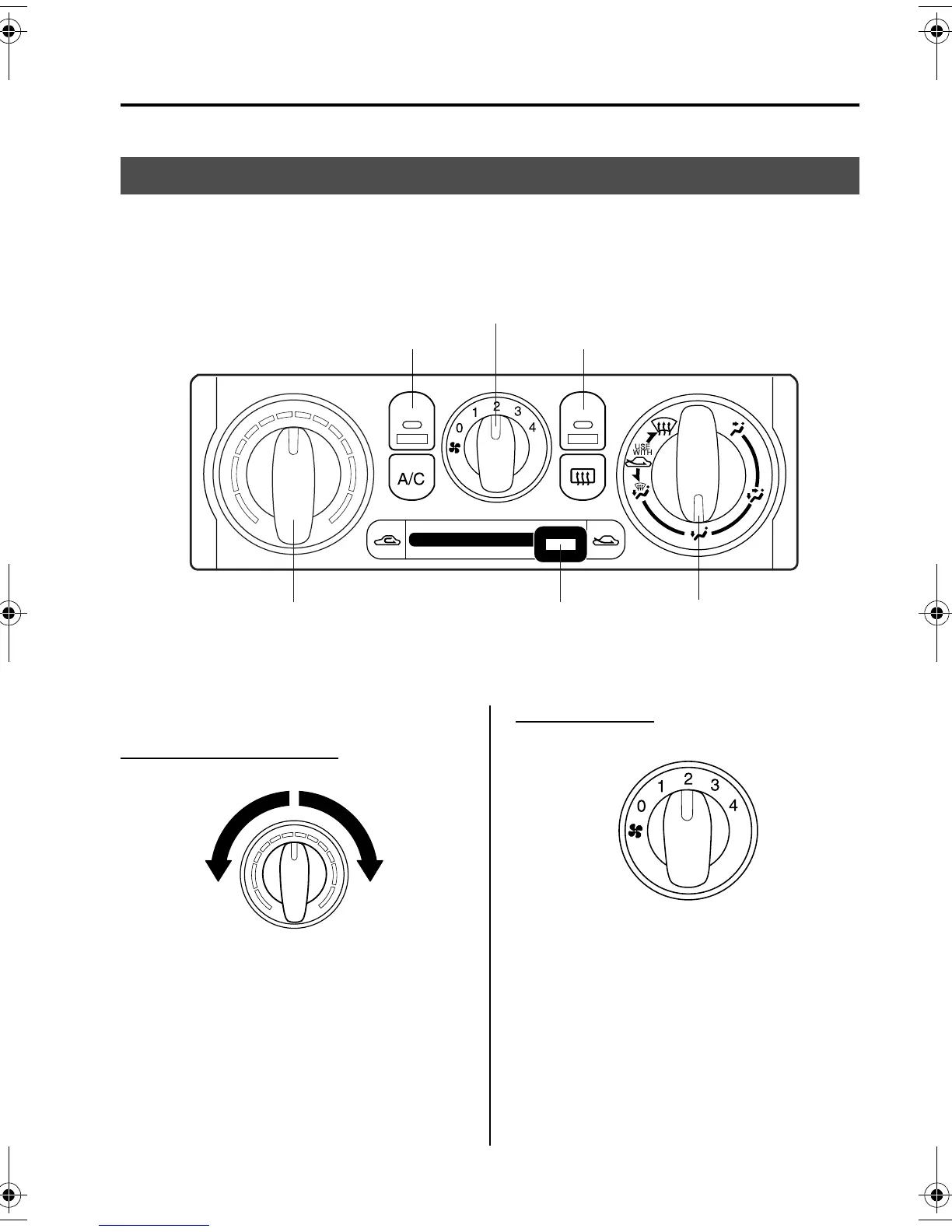

Control Panel
A/C switch
Fan control dial
Rear window defroster switch
Temperature control dial Air intake selector Mode selector dial
(page 5-34)
HotCold
