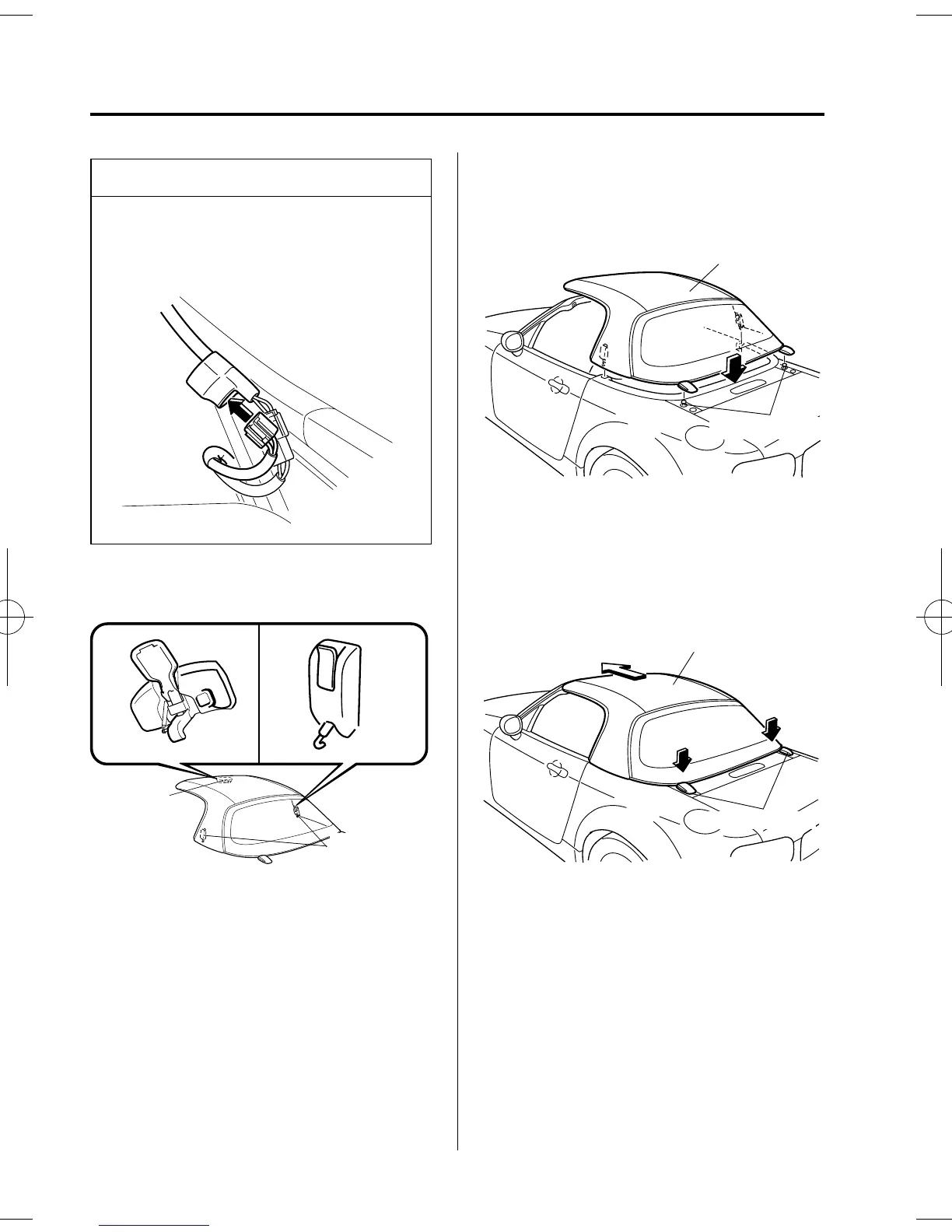

NOTE
Connect the convertible top's rear
window defroster coupler into the
holder so that it does not rattle.
7. Make sure the top latch and the side
latches on the hardtop are unlocked.
Top latch
assembly
Side latch
assembly
8. Align the rear deck latches with the
rear deck studs and set the hardtop
squarely onto the body.
Hardtop
Rear deck stud
9. Slide the hardtop forward while
pressing down on the rear deck latc hes
to lock the latches, and then verify that
they are secure by attempting to lift the
rear of the hardtop.
Hardtop
Rear deck latch
3-50
