qFuse Panel Description

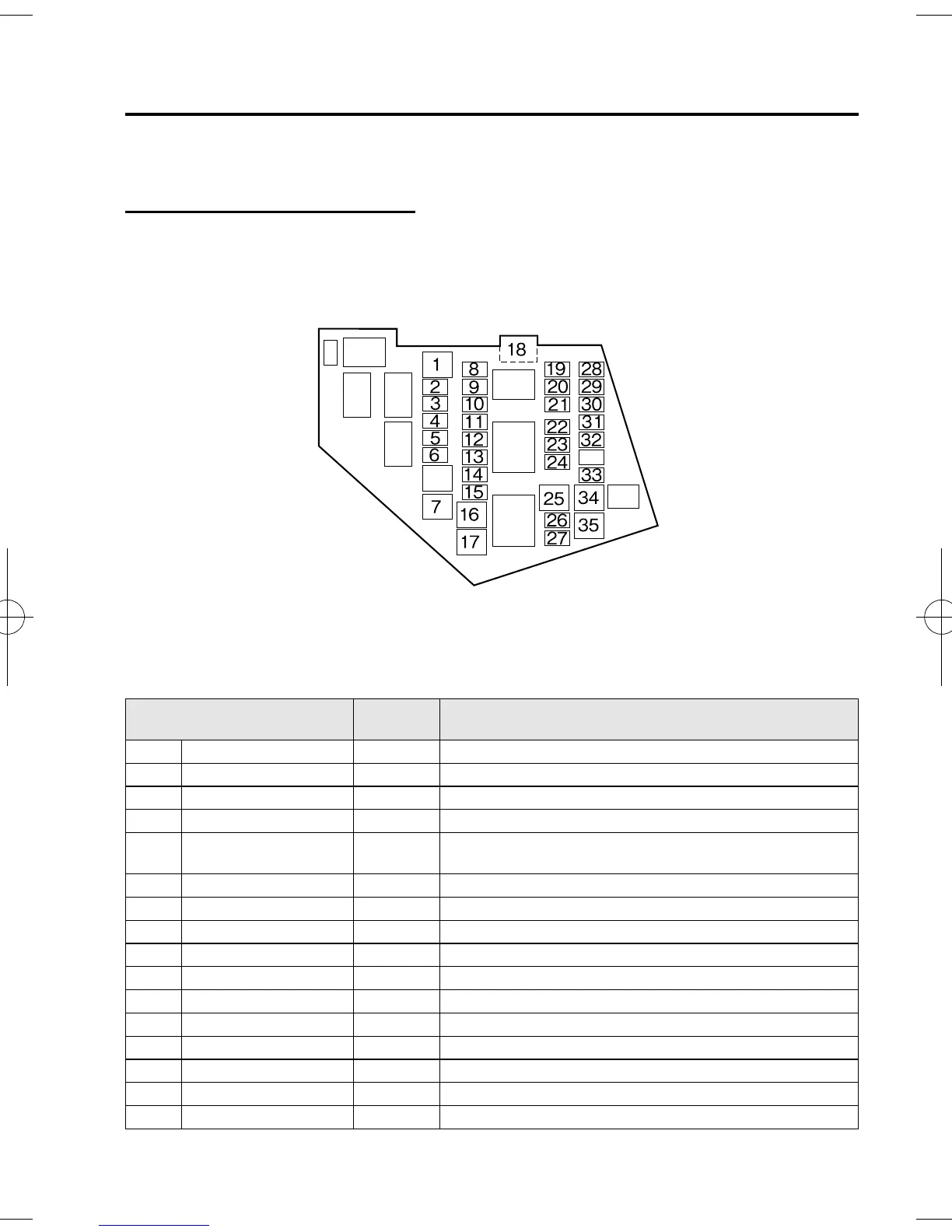

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 7.5 A Cooling fan
3 DEFOG 20 A Rear window defroster
4 H/CLEAN 20 A ―
5 ROOM 15 A
Overhead lights, Luggage compartment light, For protection of
various circuits
6 IG KEY2 15 A For protection of various circuits
7 HEATER 40 A Air conditioner
í
8 ABS 30 A ABS
9 FOG 15 A Front fog lights
í
10 R.FOG 7.5 A ―
11 ―― ―
12 ―― ―
13 MAG 7.5 A Air conditioner
í
14 ST 20 A Starter
15 TAIL 15 A Taillights, Parking lights, License plate lights, Illumination
16 ABS 40 A ABS
Maintenance and Care
Owner Maintenance
8-45
í
Some models.
