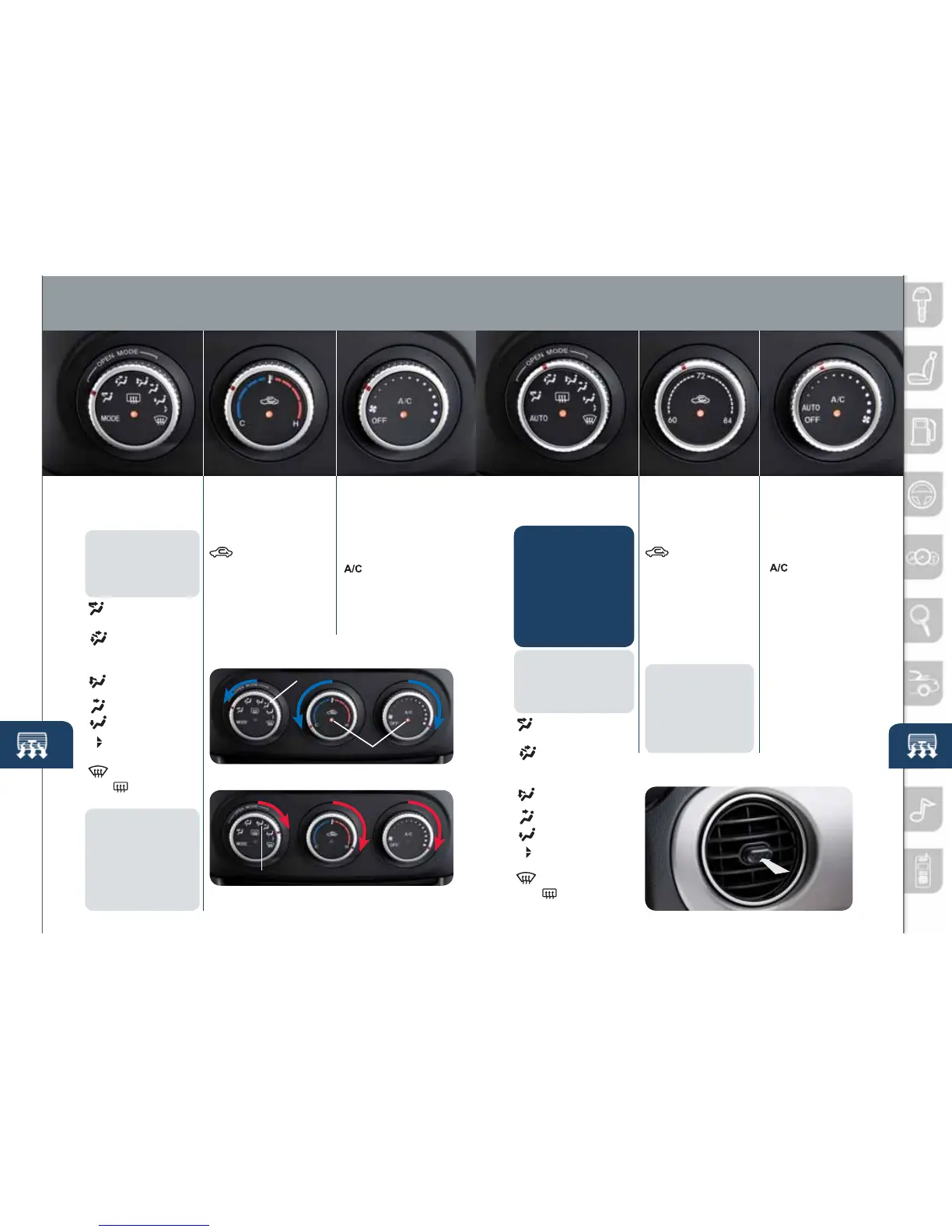

Mazda MX-5 - Manual Climate Control; Automatic Climate Control

21 22
Mode Selector Dial
Rotate the dial to
select airow mode.
NOTE: Turn the mode
selector dial to an OPEN
MODE position for
maximum comfort while
the roof is open.
Dashboard vents
(Open Mode)
Dashboard and
oor vents
(Open Mode)
Floor vents
(Open Mode)
Dashboard vents
Floor vents
Defroster and
oor vents
Defroster vents
Push
to defrost
the rear window.
NOTE: When set to
maximum cold position,
the dashboard vents
or dashboard and oor
vents will turn the A/C
on and recirculated
air will be selected for
maximum cooling.
Mode Selector Dial
Rotate the dial to select
airow mode.
AUTO: Place the Mode
Selector Dial and the
Fan Control Dial in the
AUTO position. The
airow mode and the
amount of airow will be
automatically controlled
in accordance with the
set temperature.
NOTE: Turn the mode
selector dial to an OPEN
MODE position for
maximum comfort while
the roof is open.
Dashboard vents
(Open Mode)
Dashboard and
oor vents
(Open Mode)
Floor vents
(Open Mode)
Dashboard vents
Floor vents
Defroster and
oor vents
Defroster vents
Push
to defrost
the rear window.
Automatic Climate Control
Automatic temperature
control always works,
even if the AUTO
indicator light is turned
off when changing
the fan speed or air
ow mode.
Manual Climate Control
Fan Control Dial
Rotate the dial to set
desired fan speed.
Rotate dial to OFF to
turn system off.
Push to
manually turn air
conditioning on
or off.
Temperature
Control Dial
Rotate the dial for
temperature control.
Push to recirculate
cabin air to
reduce outside
odors and improve
cooling (indicator
on) or receive fresh
air (indicator off).
Temperature
Control Dial
Rotate the dial for
temperature control.
Push to
recirculate cabin
air to reduce
outside odors
and improve
cooling (indicator
on) or receive
fresh air
(indicator off).
Fan Control Dial
• Rotate the dial to set
desired fan speed.
• Rotate dial to OFF to
turn system off.
Push to
manually turn air
conditioning on
or off.
Outer Vents
Push button to open/close outer vents only.
Best Cooling Settings (with top open)
Best Heating Settings (with top closed)
Indicator ON (automatically)
(with top closed)
(with top open)
