POWER WINDOW SYSTEM

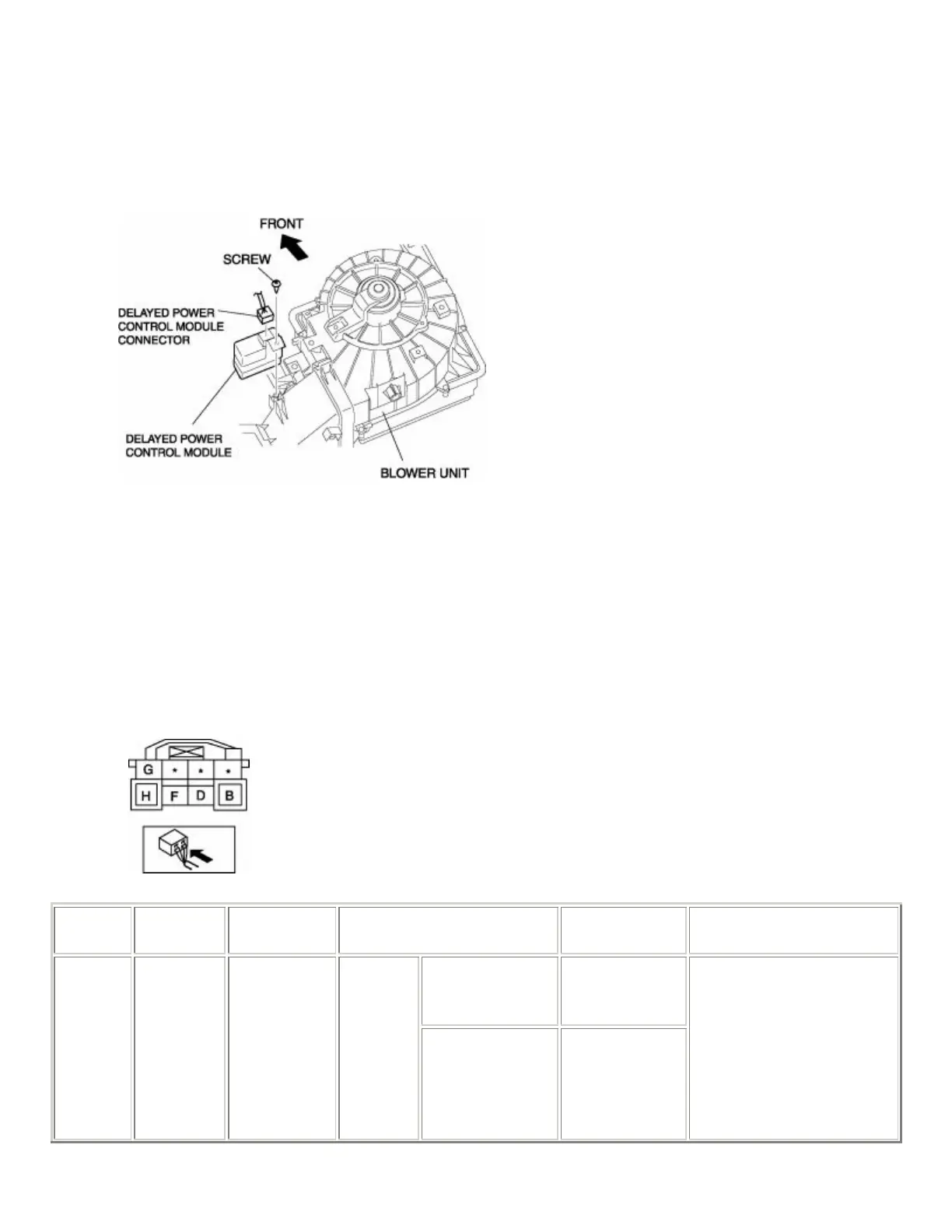

DELAYED POWER CONTROL MODULE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the delayed power control module connector.
3. Remove the bolt and then remove the delayed power control module.
4. Install in the reverse order of removal.
DELAYED POWER CONTROL MODULE INSPECTION
1. Measure voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts
under "Inspection item(s)".
Terminal Voltage Table (Reference)
Terminal
Signal
name
Connected
to
Test condition
Voltage
(V)/Continuity
Inspection item(s)
Turn the ignition
switch to the ON
position.
B+
B
Door
open/close
Power
window main
switch
Door
switch
pressed.
Within 40 s
after turning the
ignition switch to
the LOCK
position
B+
• Power window
main switch (See
POWER
WINDOW MAIN
SWITCH
INSPECTION )
