FRONT DOOR TRIM
FRONT DOOR TRIM REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.

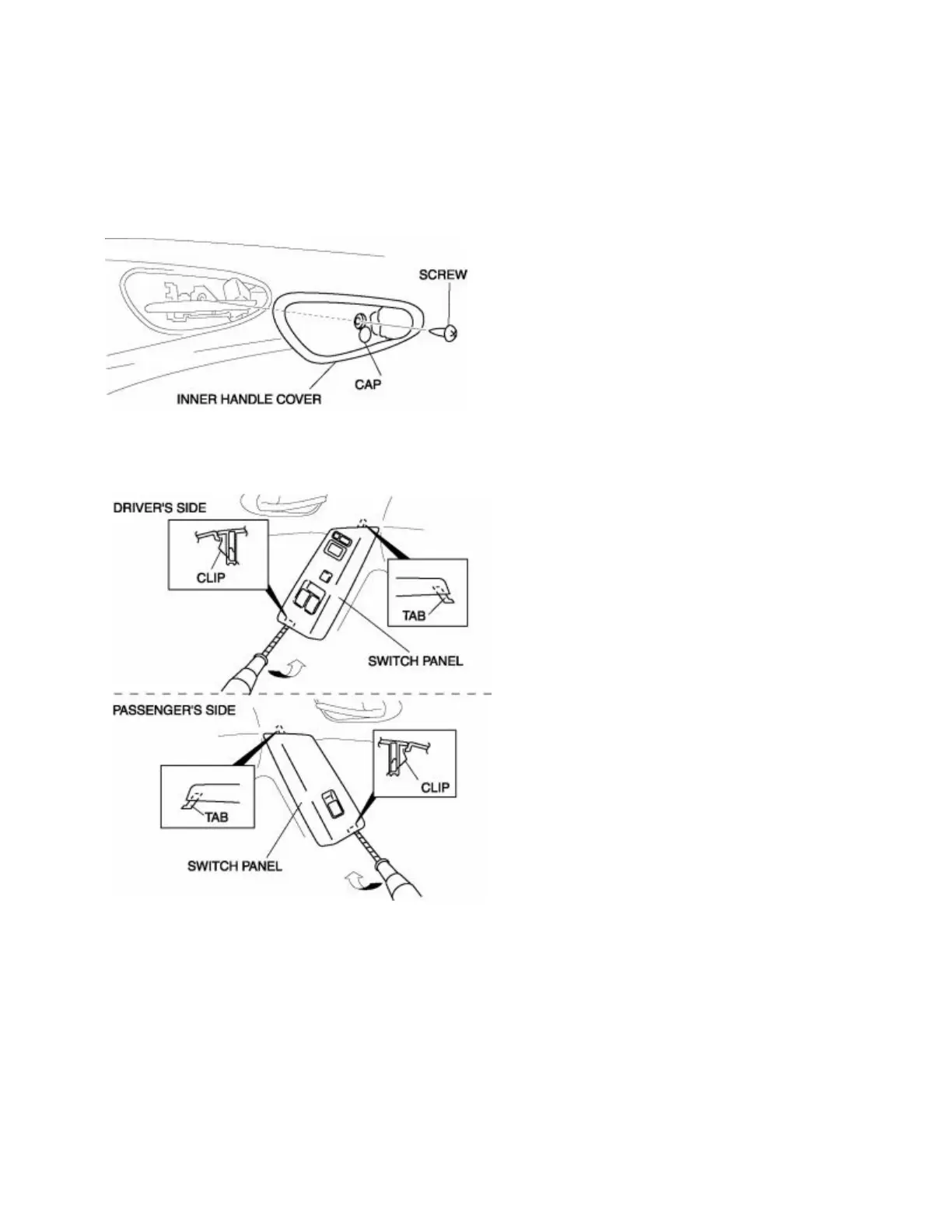

2. Using a small flathead screwdriver, open the cap and remove the screw, then remove the inner handle
cover.
3. Remove the inner garnish.(See INNER GARNISH REMOVAL/INSTALLATION .)
4. Using a flathead screwdriver, pry up the rear part of the switch panel and detach the clip.
5. Remove the switch panel from the front door trim keeping the tab from catching.
6. Disconnect the power window main switch connector, the power mirror switch connector, and the power
window subswitch connector.
7. Remove the screws.
