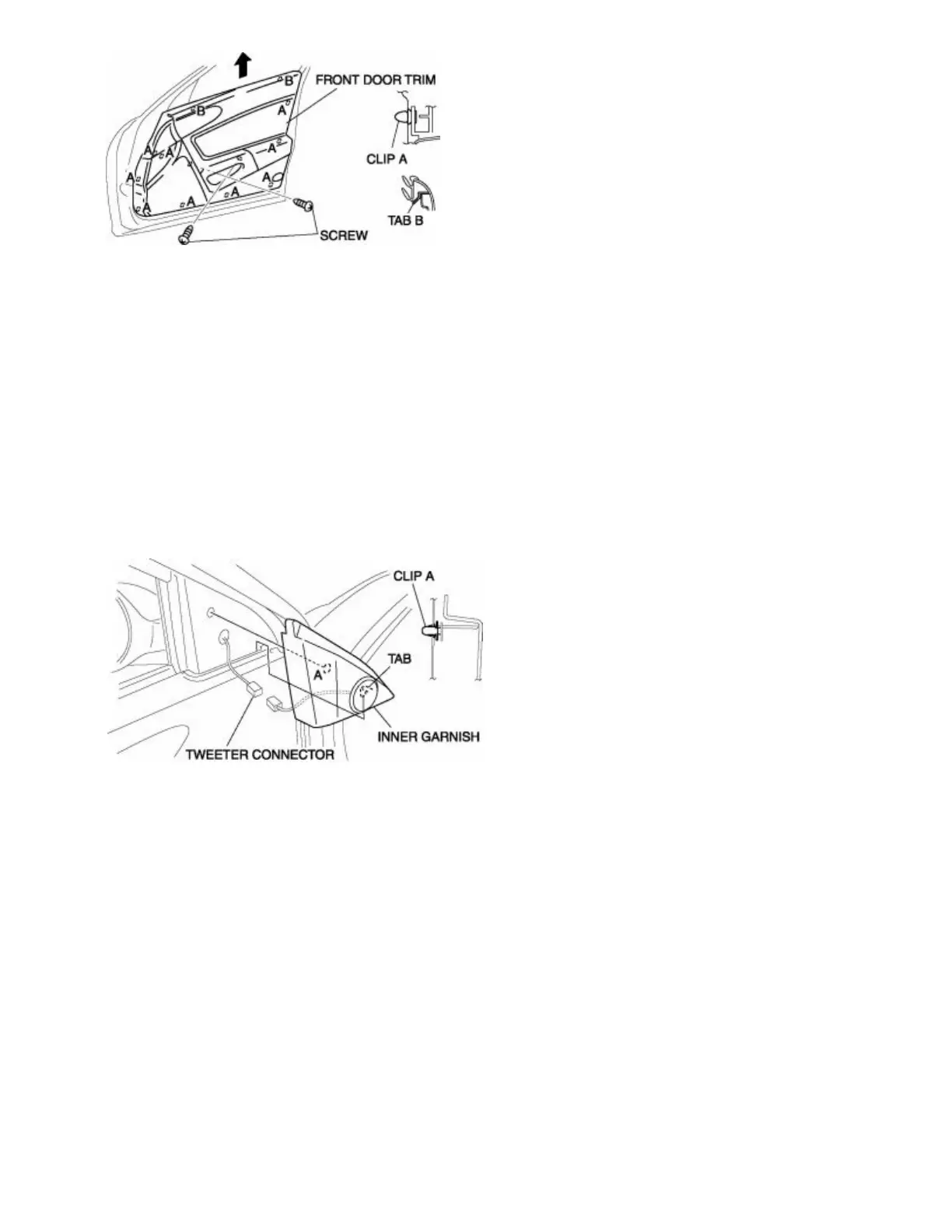

8. Detach clips A from the front door using a fastener remover.
9. Pull the front door trim upward, then detach tabs B from the front door.
10. Remove the courtesy light.(See COURTESY LIGHT BULB REMOVAL/INSTALLATION .)
11. Remove the front door trim.
12. Install in the reverse order of removal.
INNER GARNISH
INNER GARNISH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Pull the inner garnish outward and detach clip A.
3. Detach the tab.
4. Disconnect the tweeter connector and remove the inner garnish.
5. Install in the reverse order of removal.
