FRONT SIDE TRIM
FRONT SIDE TRIM REMOVAL/INSTALLATION
1. Remove the inner scuff plate.(See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
2. Partially peel back the seaming welt.

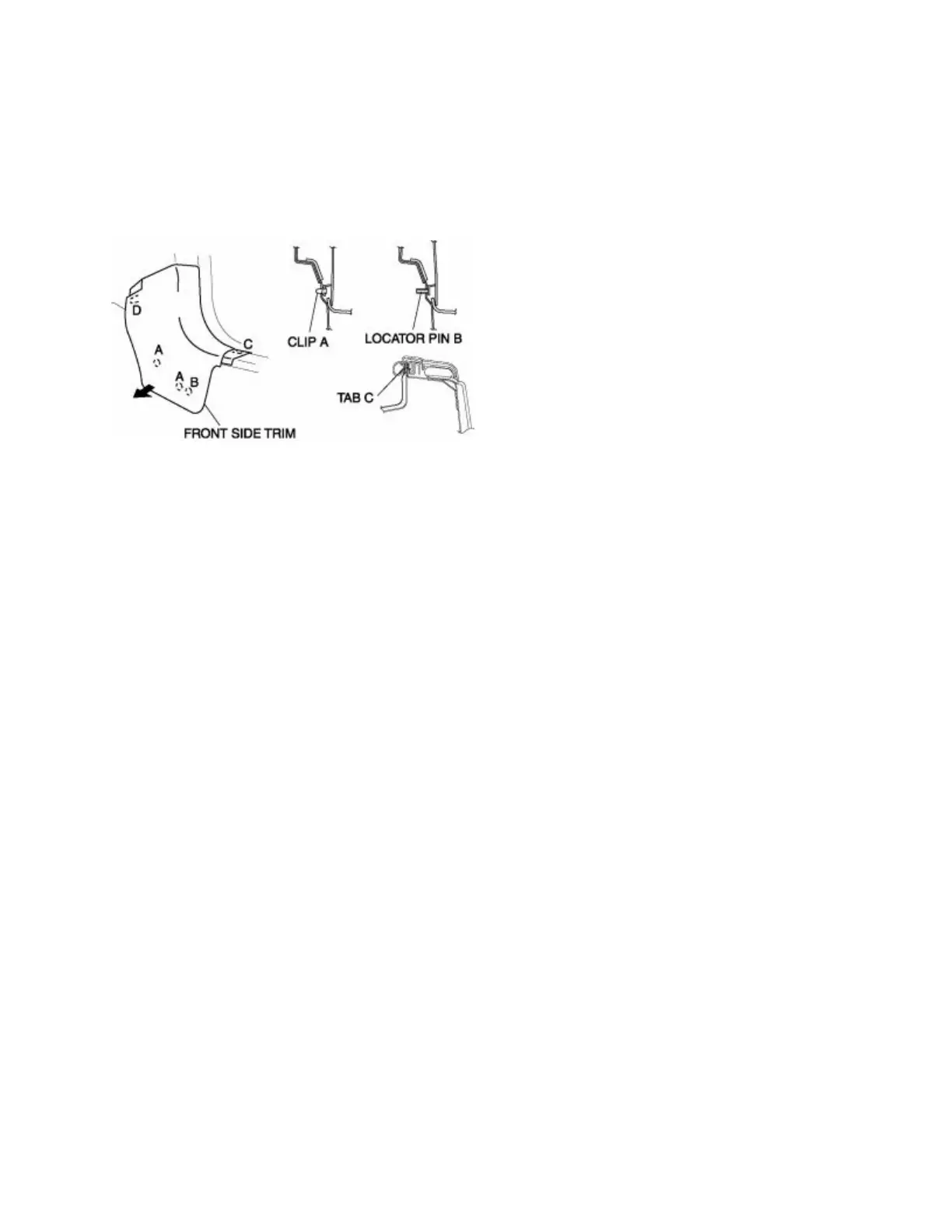

3. Pull the front side trim in the direction of the arrow and detach clips A and locator pin B.
4. Detach the tab D, then remove the front side trim.
5. Install in the reverse order of removal.
