REAR SIDE TRIM
REAR PACKAGE TRIM REMOVAL/INSTALLATION
1. Remove the following parts:
a. Rear seat(See REAR SEAT REMOVAL/INSTALLATION .)
b. Inner scuff plate(See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
c. Tire house trim(See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
d. Rear pillar trim(See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
2. Remove the rear package side trim fasteners.

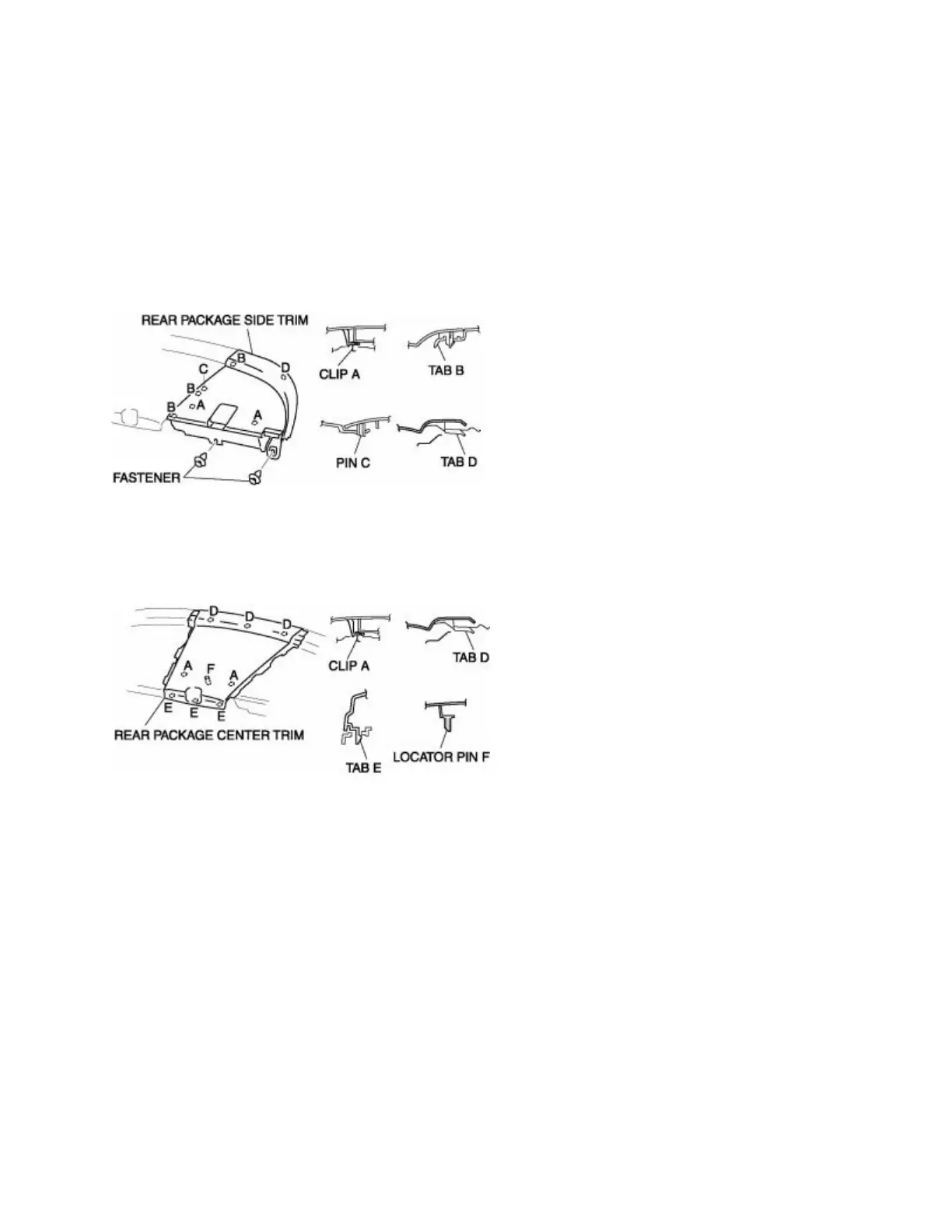

3. Pull the rear package side trim upward and detach clips A from the body.
4. Detach tabs B and pin C from the rear package center trim.
5. Detach tabs D from the body and remove the rear package side trim.
6. Pull the rear package center trim upward and detach clips A, tabs E, and locator pin F from the body.
7. Detach tabs D from the body and remove the rear package center trim.
8. Install in the reverse order of removal.
