PILLAR TRIM

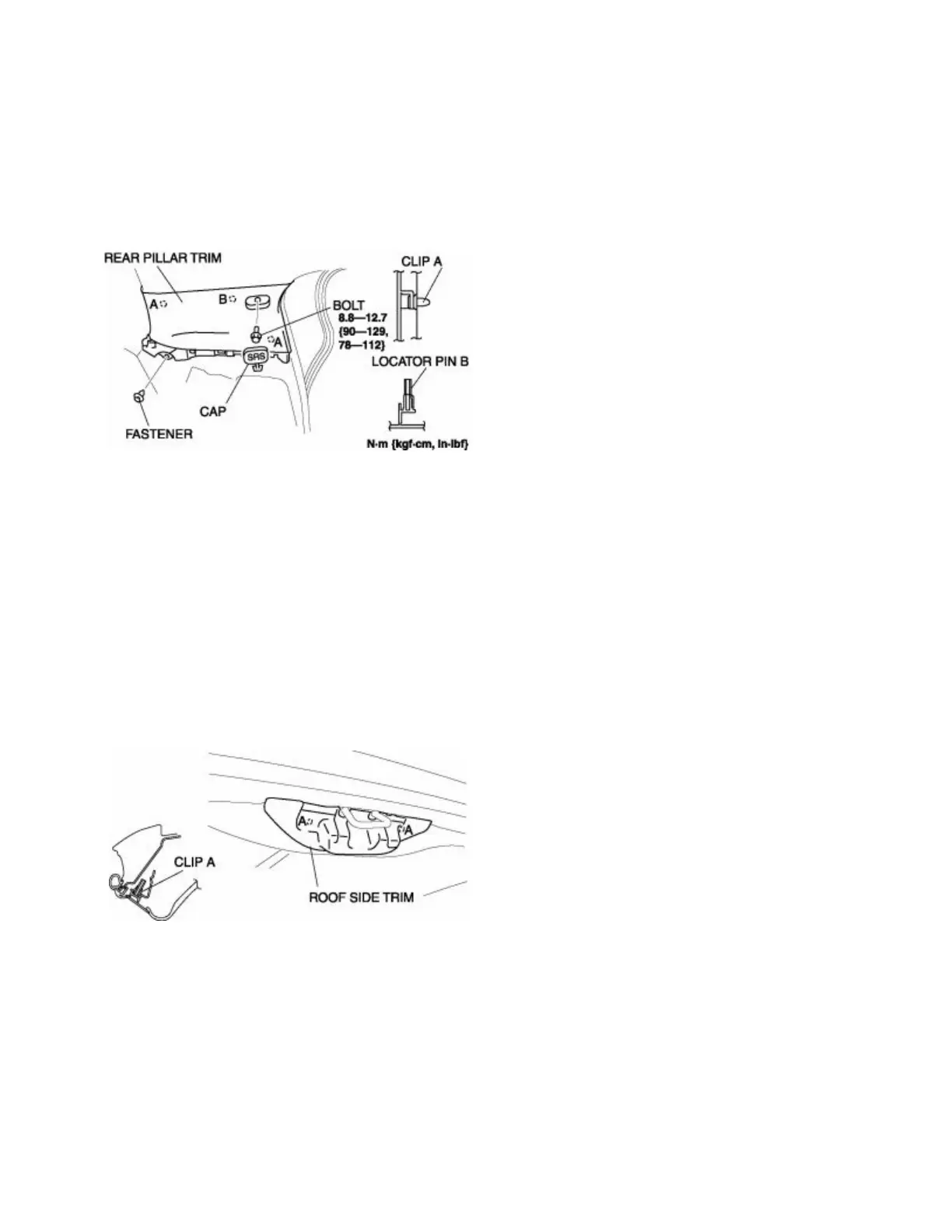

REAR PILLAR TRIM REMOVAL/INSTALLATION
1. Remove the rear seat.(See REAR SEAT REMOVAL/INSTALLATION .)
2. Remove the inner scuff plate.(See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
3. Remove the tire house trim.(See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4. Remove the cap using a fastener remover.(Vehicles with curtain air bags)
5. Remove the bolt.(Vehicles with curtain air bags)
6. Remove the fastener.
7. Detach clips A and locator pin B, using a fastener remover, and remove the rear pillar trim.
8. Install in the reverse order of removal.
HEADER TRIM
ROOF SIDE TRIM REMOVAL/INSTALLATION
1. Partially peel back the seaming welt.
2. Pull the roof side trim outward, detach clips A, and then remove the roof side trim.
3. Install in the reverse order of removal.
