SCUFF PLATE
INNER SCUFF PLATE REMOVAL/INSTALLATION

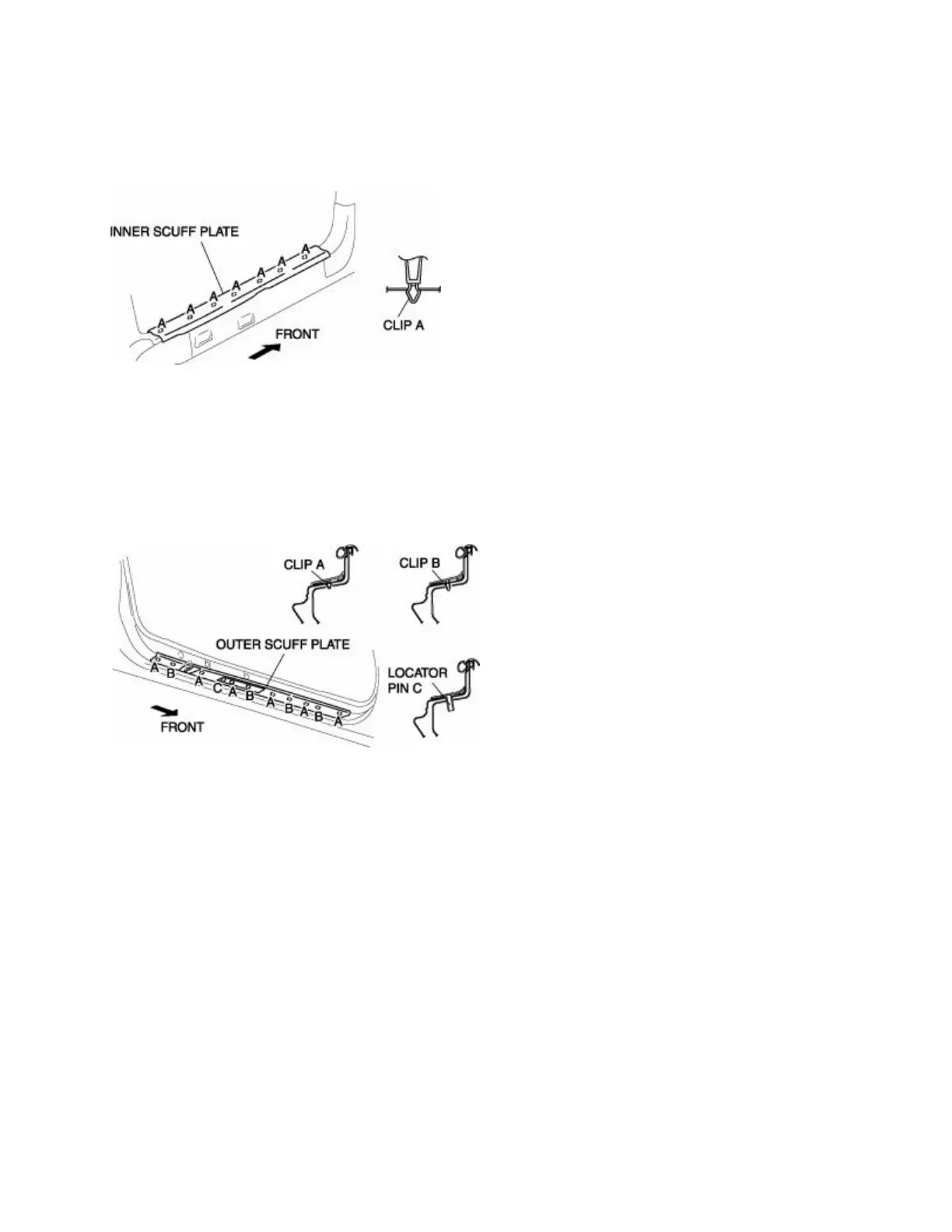

1. Pull the inner scuff plate upward, detach clips A from the body, and then remove the inner scuff plate.
2. Install in the reverse order of removal.
OUTER SCUFF PLATE REMOVAL/INSTALLATION
1. Pull the outer scuff plate upward, detach clips A, B, and locator pin C from the body, and then remove
the outer scuff plate.
2. Install in the reverse order of removal.
