REAR SIDE TRIM
TIRE HOUSE TRIM REMOVAL/INSTALLATION
1. Remove the rear seat.(See REAR SEAT REMOVAL/INSTALLATION .)
2. Remove the inner scuff plate.(See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
3. Partially peel back the seaming welt.

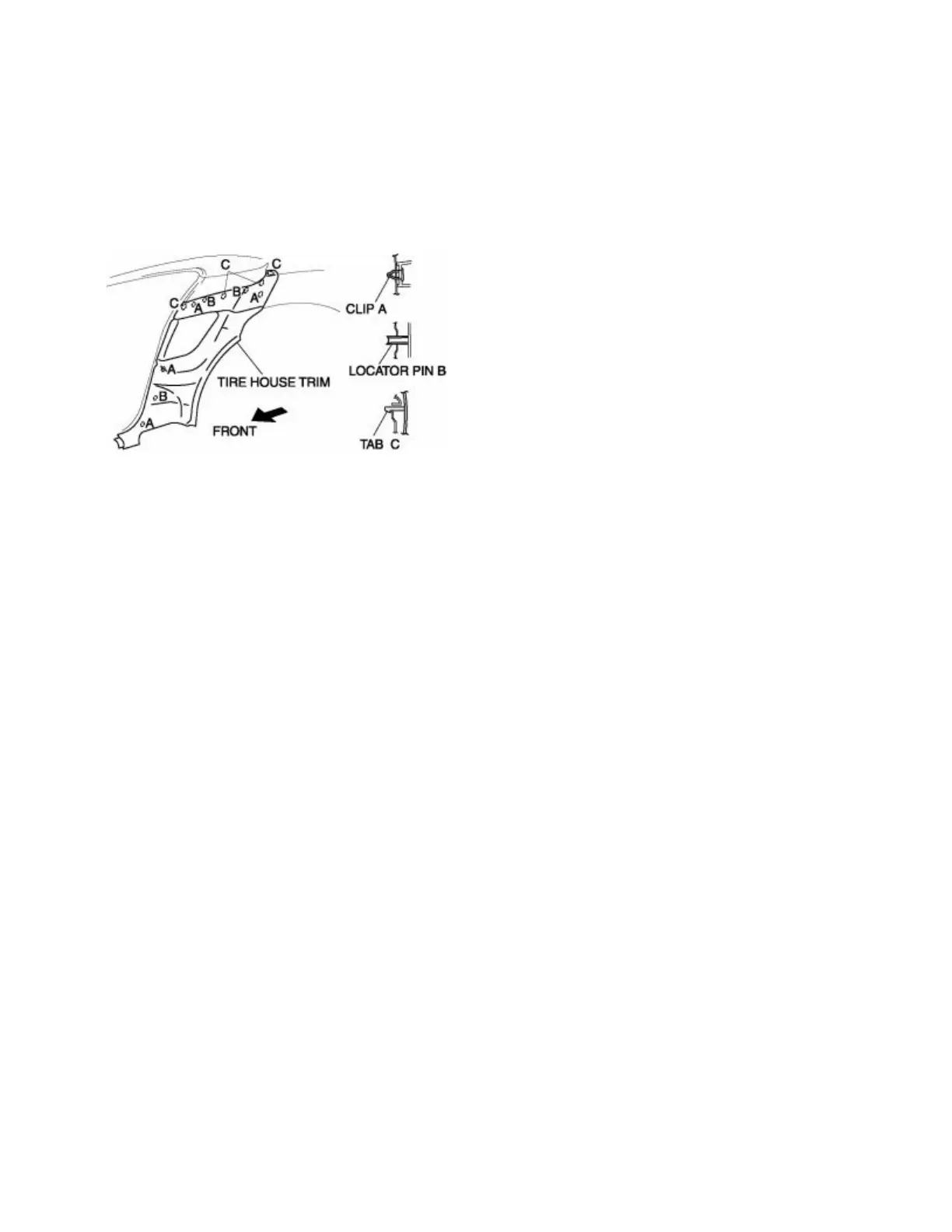

4. Pull the tire house trim outward and detach clips A and locator pins B.
5. Detach tabs C and remove the tire house trim.
6. Install in the reverse order of removal.
