HEADLINER

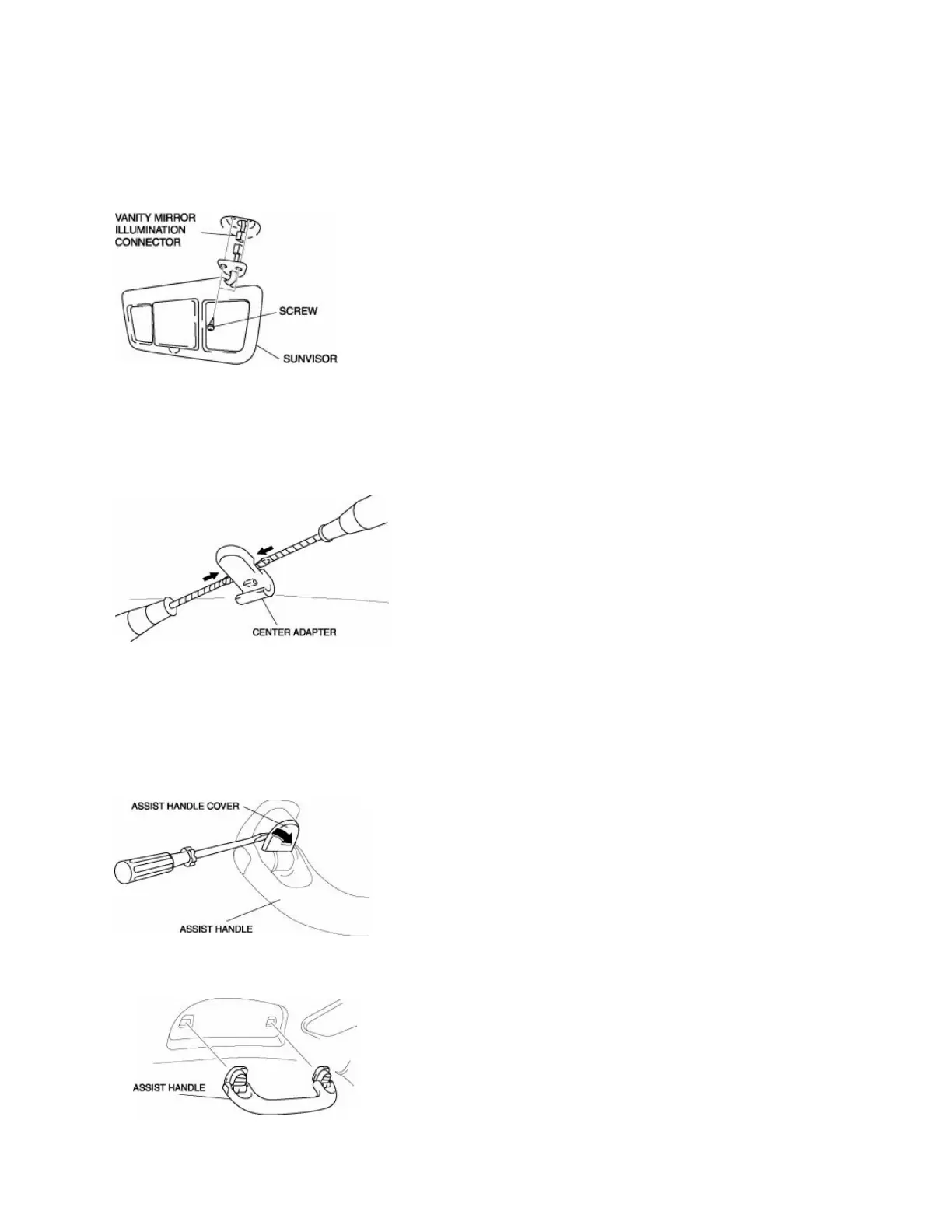

SUNVISOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the screws.
3. Disconnect the vanity mirror illumination connector.
4. Remove the sunvisor.
5. Press the center adapter tabs in the directions of the arrows using two tape-wrapped flathead
screwdrivers and remove it.
6. Install in the reverse order of removal.
ASSIST HANDLE REMOVAL/INSTALLATION
1. Insert a flathead screwdriver into the assist handle notch and remove the assist handle cover.
2. Pull the assist handle outward and remove it.
3. Install in the reverse order of removal.
