POWER SEAT
FRONT TILT MOTOR INSPECTION

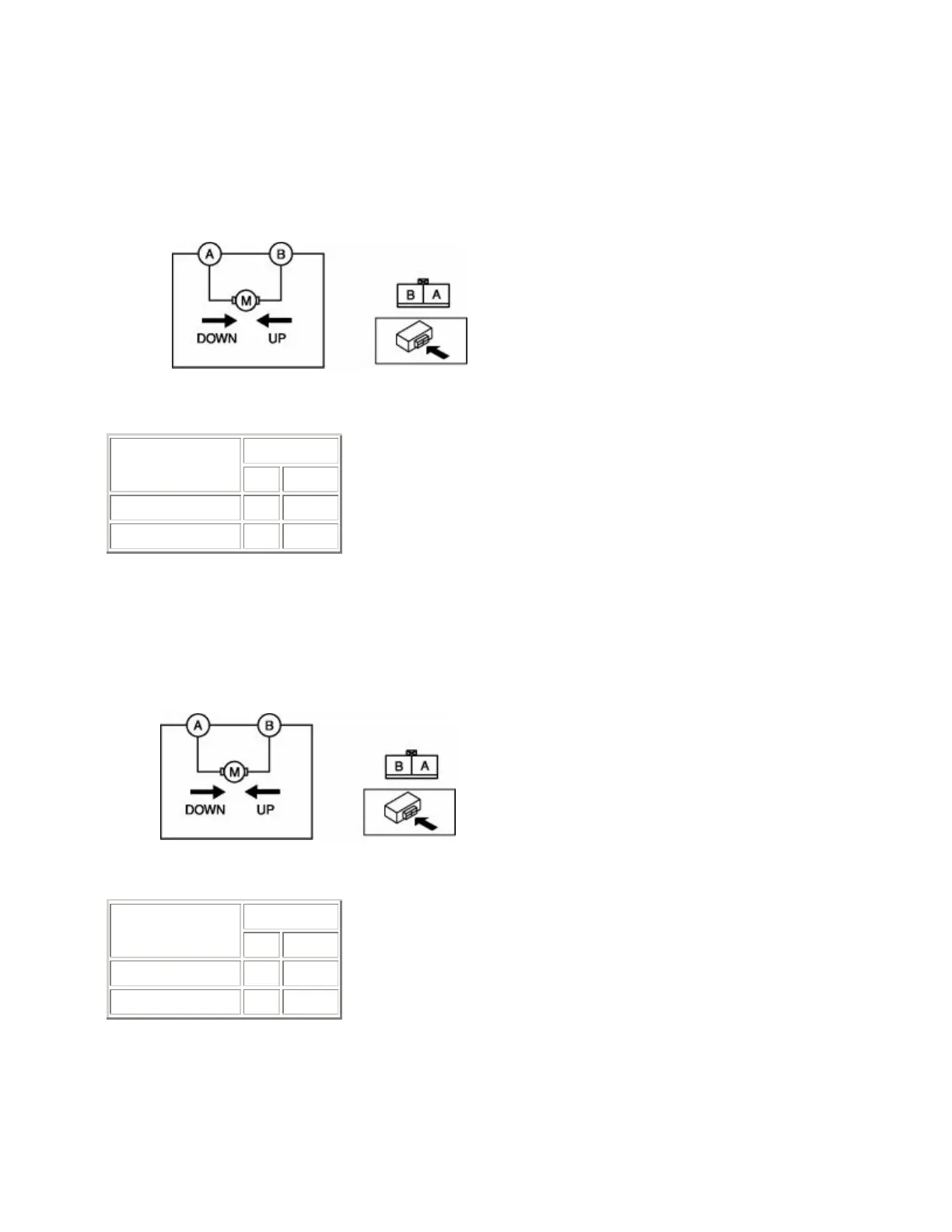

1. Disconnect the front tilt motor connector.
2. Connect battery positive voltage to front tilt motor terminal A or B, then verify that the front tilt motor
operate as shown in the table.
• If the front tilt motor does not operate as indicated in the table, replace the front tilt motor.
Connection
Motor operation
B+ GND
Up B A
Down A B
REAR TILT MOTOR INSPECTION
1. Disconnect the rear tilt motor connector.
2. Connect battery positive voltage to rear tilt motor terminal A or B, then verify that the rear tilt motor
operate as shown in the table.
• If the rear tilt motor does not operate as indicated in the table, replace the rear tilt motor.
Connection
Motor operation
B+ GND
Up B A
Down A B
