FLASHER CONTROL MODULE

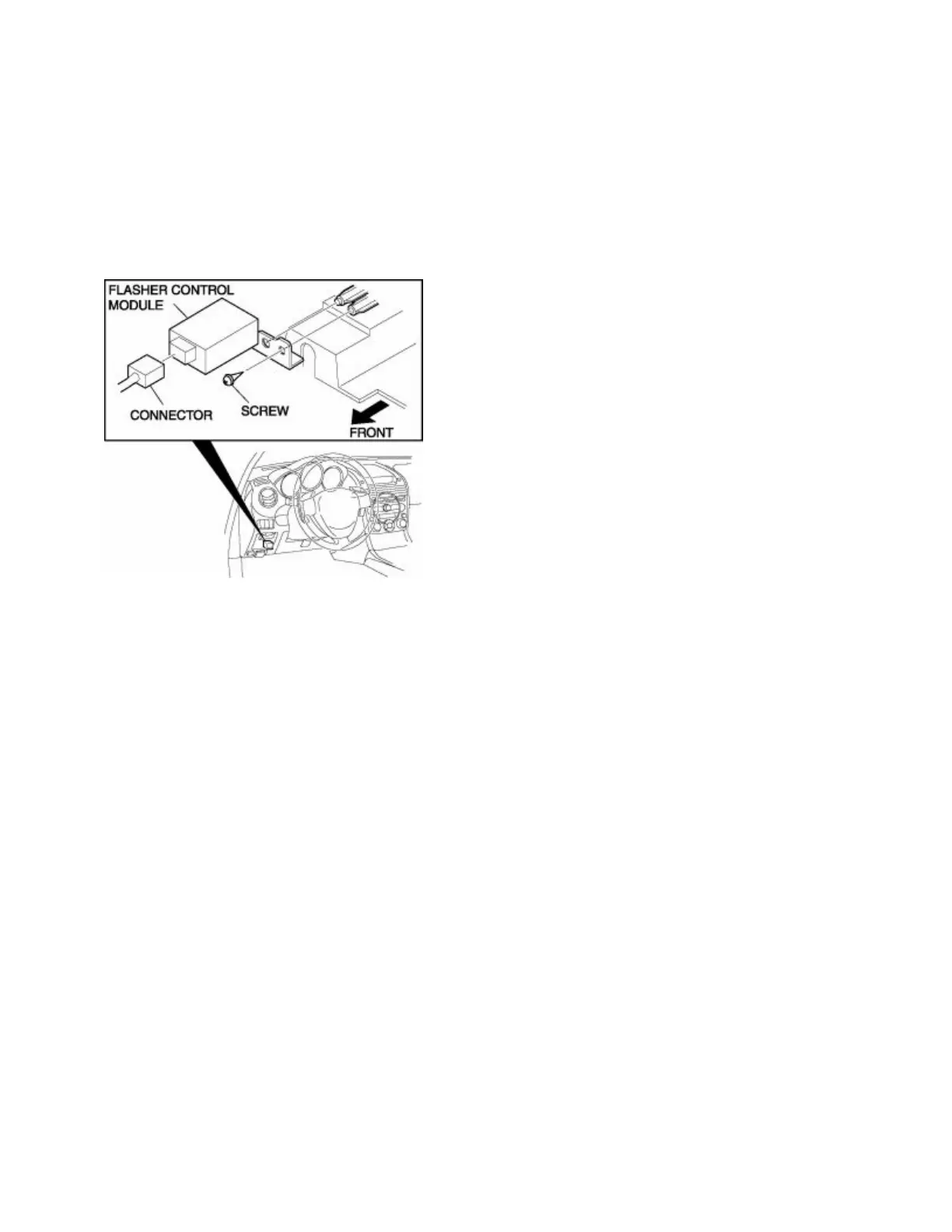

FLASHER CONTROL MODULE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the connector.
3. Remove the screw and then remove the flasher control module.
4. Install in the reverse order of removal.
FLASHER CONTROL MODULE INSPECTION
1. Remove the flasher control module with the connector still connected.
2. Measure the voltage at each terminal (other than terminal F).
• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts
under "Inspection item(s)".
3. Disconnect the flasher control module connector.
To Next Page
