FUEL-FILLER LID

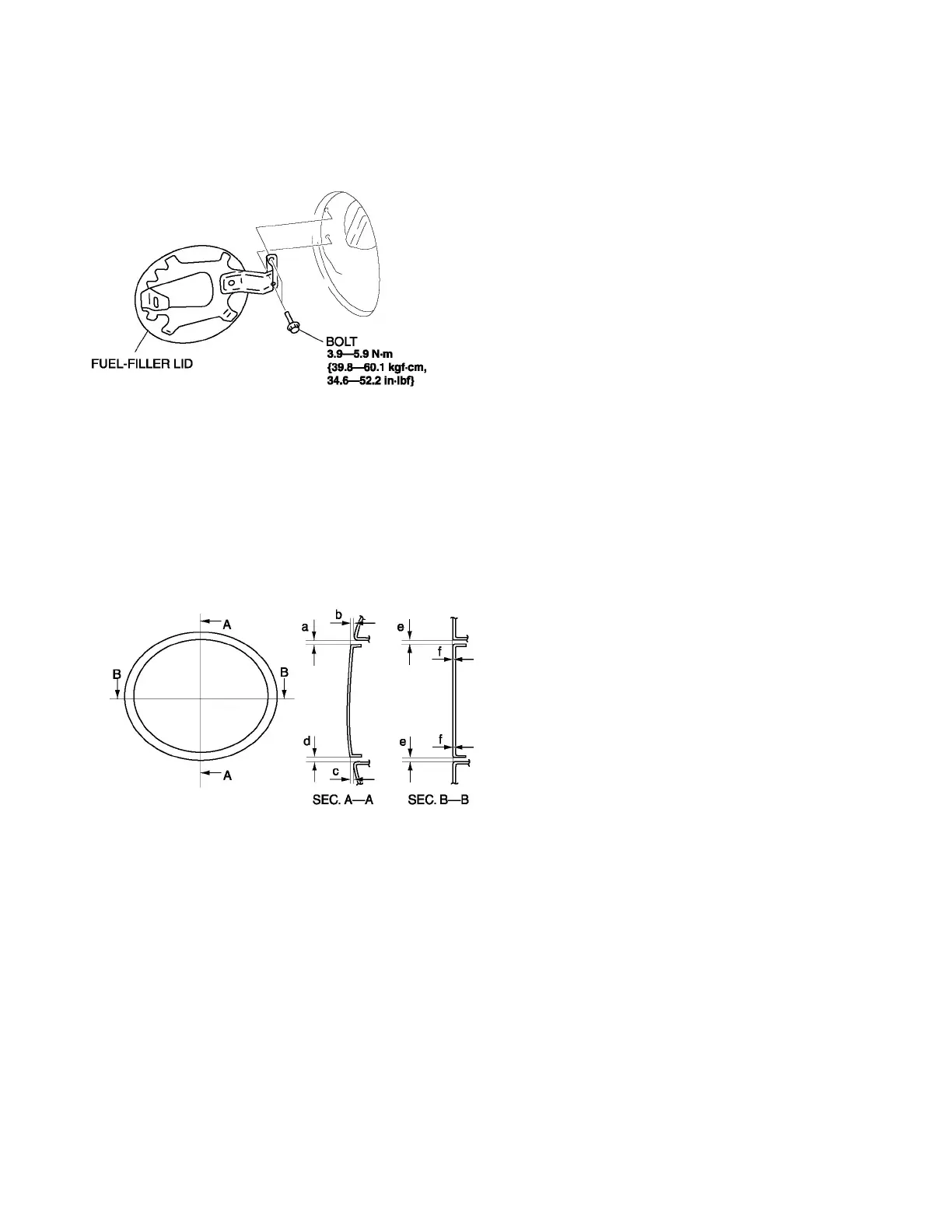

FUEL-FILLER LID REMOVAL/INSTALLATION
1. Remove the bolts.
2. Remove the fuel-filler lid.
3. Install in the reverse order of removal.
4. Adjust the fuel-filler lid.
FUEL-FILLER LID ADJUSTMENT
1. Measure the gap and height difference between the fuel-filler lid and the body.
2. Loosen the fuel-filler lid installation bolts, and adjust the fuel-filler lid.
Standard clearance
o a: 1.73.7 mm {0.070.14 in}
o b: −0.51.5 mm {−0.010.05 in}
o c: −1.01.0 mm {−0.030.03 in}
o d: 1.83.8 mm {0.080.14 in}
o e: 1.73.7 mm {0.070.14 in}
o f: −0.81.2 mm {−0.030.04 in}
3. Tighten the bolts.
