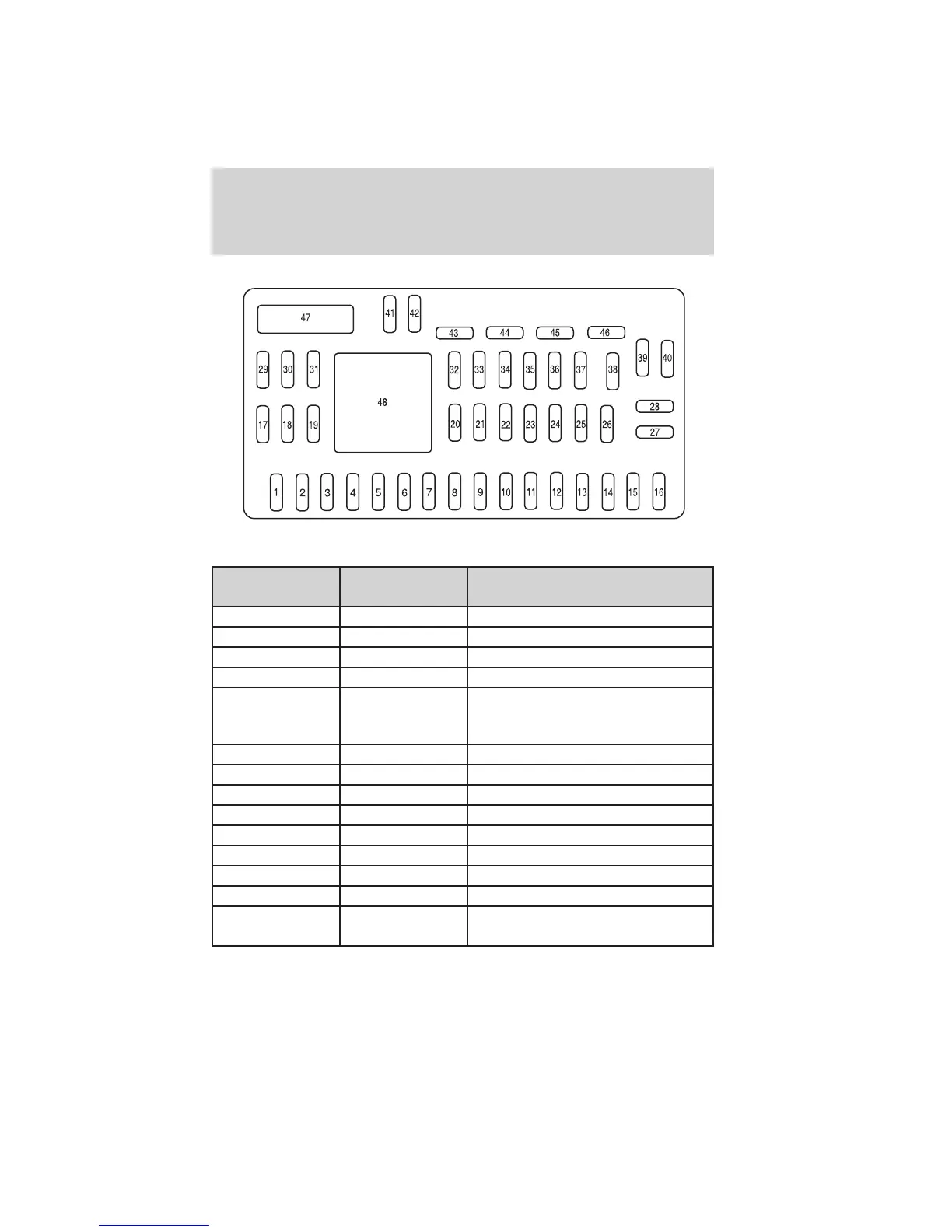

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protective Circuits
1 30A Not used (spare)
2 15A Brake on/off switch
3 15A Not used (spare)
4 30A Moon roof
5 10A Brake-shift interlock (BSI),
Passenger compartment fuse
panel
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 5A Not used (spare)
14 10A FCIM (radio buttons), Front
display module
Roadside Emergencies
221
2011 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
