MAXX-LINK MLX-100 BRIDGING MODULE APPLICATIONS
INPUT
LEVEL
PHASE BOOST
PARAMETRIC BASS EQ
BANDWIDTH FREQUENCY
0.2V 180 +10 dB 100Hz0.9V 0 0dB 30Hz
MAXX-LINK
MLX-100
SUBSONIC
FILTER
24 dB/OCT
LOW PASS
FILTER
24 dB/OCT
OUTPUT
LEVEL
MODE
ON
SLAVE
OFF
MASTER
RED - CLIP
GREEN - 9V
TEST TONE
65Hz
35Hz250Hz 1V 9V
5V
7V3V
15Hz35Hz
INPUT
INPUT
LEFT
RIGHT
FULL RANGE
BR-1 REMOTE
CONTROL
MASTER OUT
SLAVE IN
BRIDGING OUTPUTS
A B C D E
+ + + + +
- - - - -
GND REM
+12V
Signal From Source Unit
(RADIO/CD PLAYER)
MASTER
INPUT
LEVEL
PHASE BOOST
PARAMETRIC BASS EQ
BANDWIDTH FREQUENCY
0.2V 180 +10 dB 100Hz0.9V 0 0dB 30Hz
MAXX-LINK
MLX-100
SUBSONIC
FILTER
24 dB/OCT
LOW PASS
FILTER
24 dB/OCT
OUTPUT
LEVEL
MODE
ON
SLAVE
OFF
MASTER
RED - CLIP
GREEN - 9V
TEST TONE
65Hz
35Hz250Hz 1V 9V
5V
7V3V
15Hz35Hz
INPUT
INPUT
LEFT
RIGHT
FULL RANGE
BR-1 REMOTE
CONTROL
MASTER OUT
SLAVE IN
BRIDGING OUTPUTS
A B C D E
+ + + + +
- - - - -
GND REM
+12V
SLAVE
LEVEL
BYPASS
NORMAL
RED - CLIP
GREEN - 9V
-20dB 0dB
-6dB

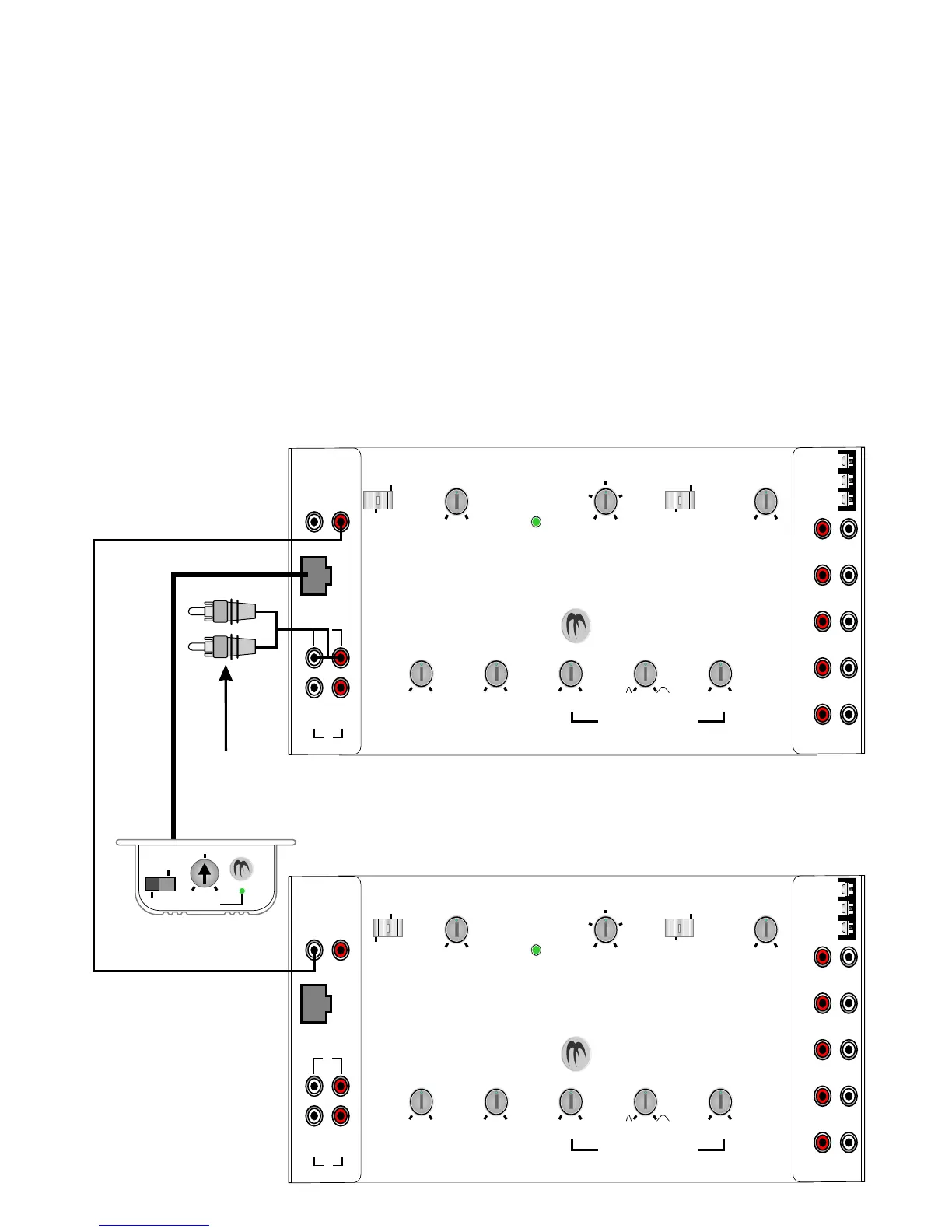

Linking 2 MLX-100s using Master/Slave operations
This application illustrates the method of linking 2 MLX-100’s using the Master/Slave features.
1. Connect the full range RCA outputs from the headunit to the MLX-100 #1’s inputs.
2. Connect a single RCA from MLX-100 #1’s MASTER OUT to MLX-100 #2’s SLAVE IN.
3. Swicth MLX-100 #1 into MASTER MODE and MLX-100 #2 in SLAVE MODE.
4. Adjust MLX-100 #2 as follows:
- The LOW PASS FILTER should be turned to 250Hz.
- The OUTPUT LEVEL should be turned to 1V.
- The SUBSONIC FILTER should be turned to 15Hz.
- The INPUT LEVEL should be at the 12 o’clock position.
- The PHASE should be turned to 0.
- The BOOST should be turned to 0dB.
- The Bandwidth should be turned all the way to the right.
- The FREQUENCY should be turned to 100Hz.
5. Connect POWER, GROUND and REMOTE to each MLX-100.
Now MLX-100 #1 controls MLX-100 #2 and you can run up to 10 linked pairs of amplifiers. Match all amplifiers as instructed
in the future application instructions.
#1
#2
3
