WIRING & INSTALLATION
4
INSTALL THE UNIT
Please note: This unit requires a minimum 6-3/4” mounting depth which
includes space for the electrical/speaker plugs and any A/V input and output
connections.
1. Cut or utilize a mounting opening 7”(H) x 2” W).

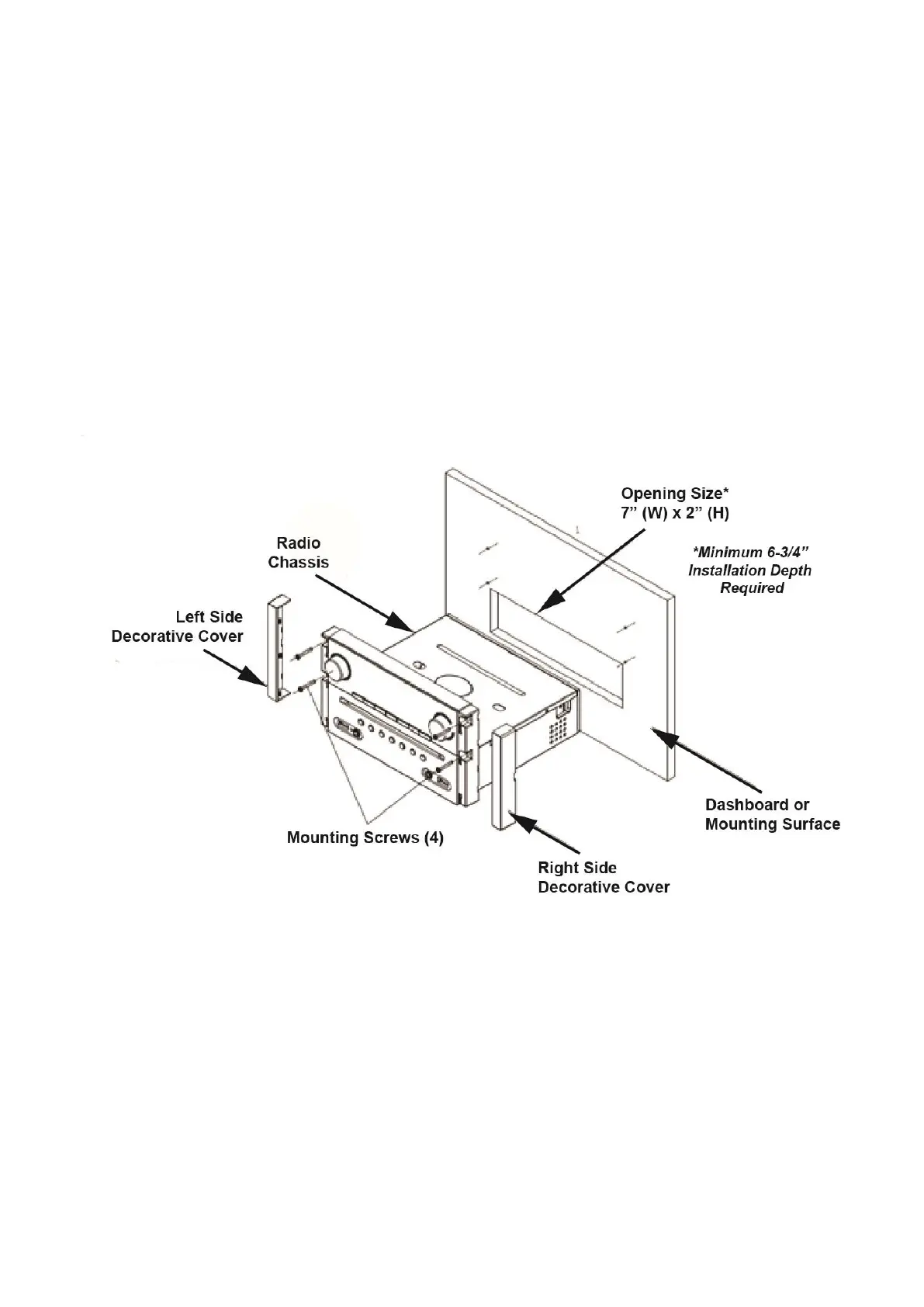

2. Remove the left and right decorative covers as shown in the diagram.
3. Insert the unit into the mounting opening.
4. Attach the unit using the four (4) supplied mounting screws.
5. Replace decorative side covers over mounting screws.
