McCulloch 14592RB - Decals

13
WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
MAX
+
_
90N
MAX
+
_
150N
14
14
11
13
6
17
21
2
12
1
10
4
REPAIR PARTS
TRACTOR- -MODEL NO. 14592RB (BA14592RBD), PRODUCT NO. 964 77 25-02

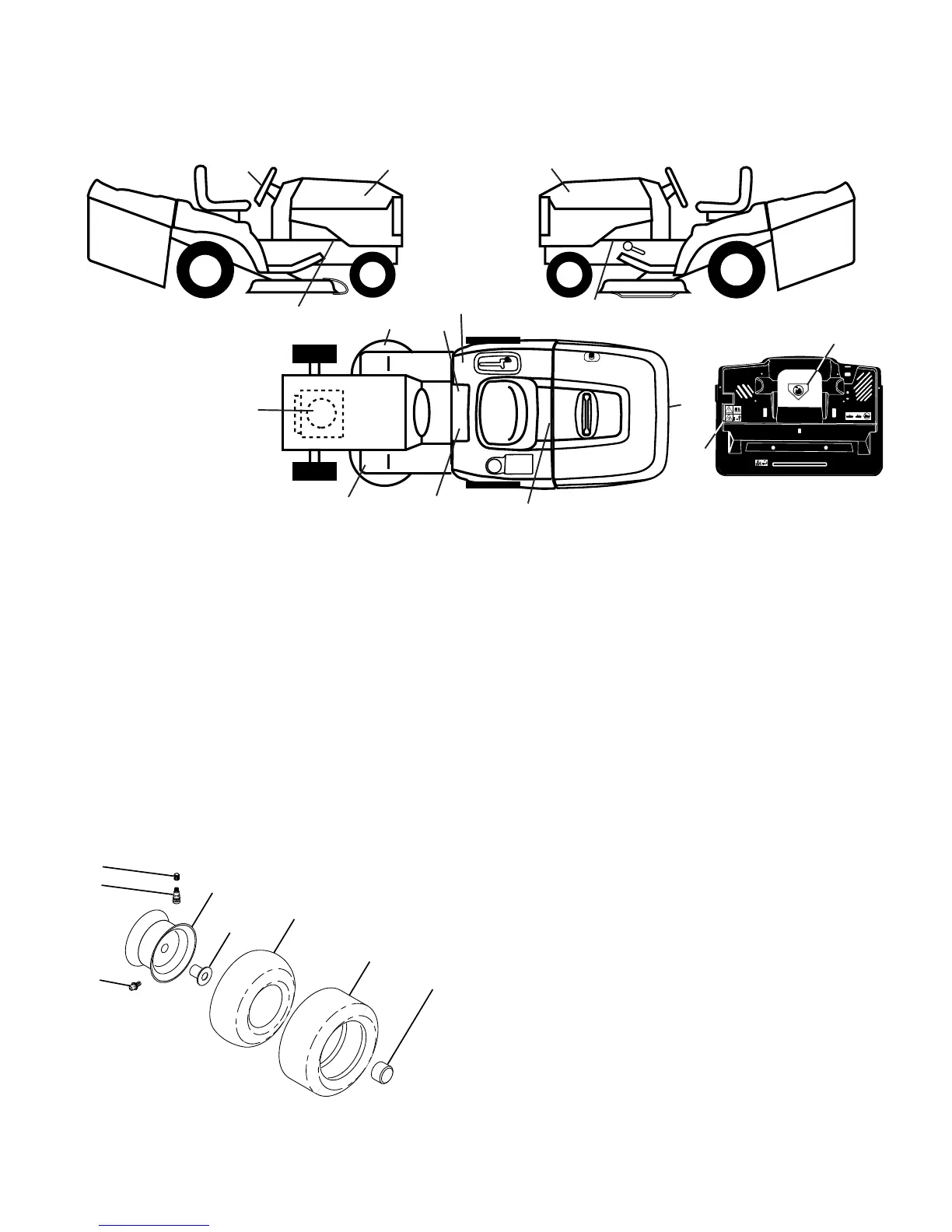

DECALS
1 532 14 54-98 Decal Read Owner’s Manual Sym
2 532 18 47-67 Decal Hp Engine
3 532 18 96-91 Decal Hood
4 532 18 96-97 Decal Steering
6 532 18 04-32 Decal Fender 100 OB/CE
9 532 18 95-73 Decal Fender
10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal Mower Cut Finger Symbol
12 532 15 97-37 Decal Brake/Clutch Symbol Lt
13 532 18 04-35 Decal Warn Back Plate CRD
14 532 15 97-36 Decal Chassis Hot Muffl er
17 532 14 08-37 Decal Saddle Brake Parking
21 532 16 62-86 Decal Hex Belt Sch 92 CRD
— 532 18 10-90 Pad Footrest RH
— 532 13 83-11 Decal Lift Handle
— 532 18 26-21 Decal Bagger Frame
— 532 18 10-91 Pad Footrest LH
— 532 18 52-30 Manual Operator's (Euro)
— 532 18 52-32 Manual Operator's (Scand)
— 532 18 52-35 Manual Operator's E-Block
— 532 18 94-01 Manual Parts
1 532 05 91-92 Cap Value Tire
2 532 06 51-39 Stem Value
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 18 33-37 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
8 532 18 33-38 Rim Asm 8" rear Service
9 532 10 62-68 Tire R Ts 18 x 9.5-8 Service
10 532 12 49-26 Tube Rear 9 5 x 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
3 3
9
