McCulloch 32cc Trimmer
7

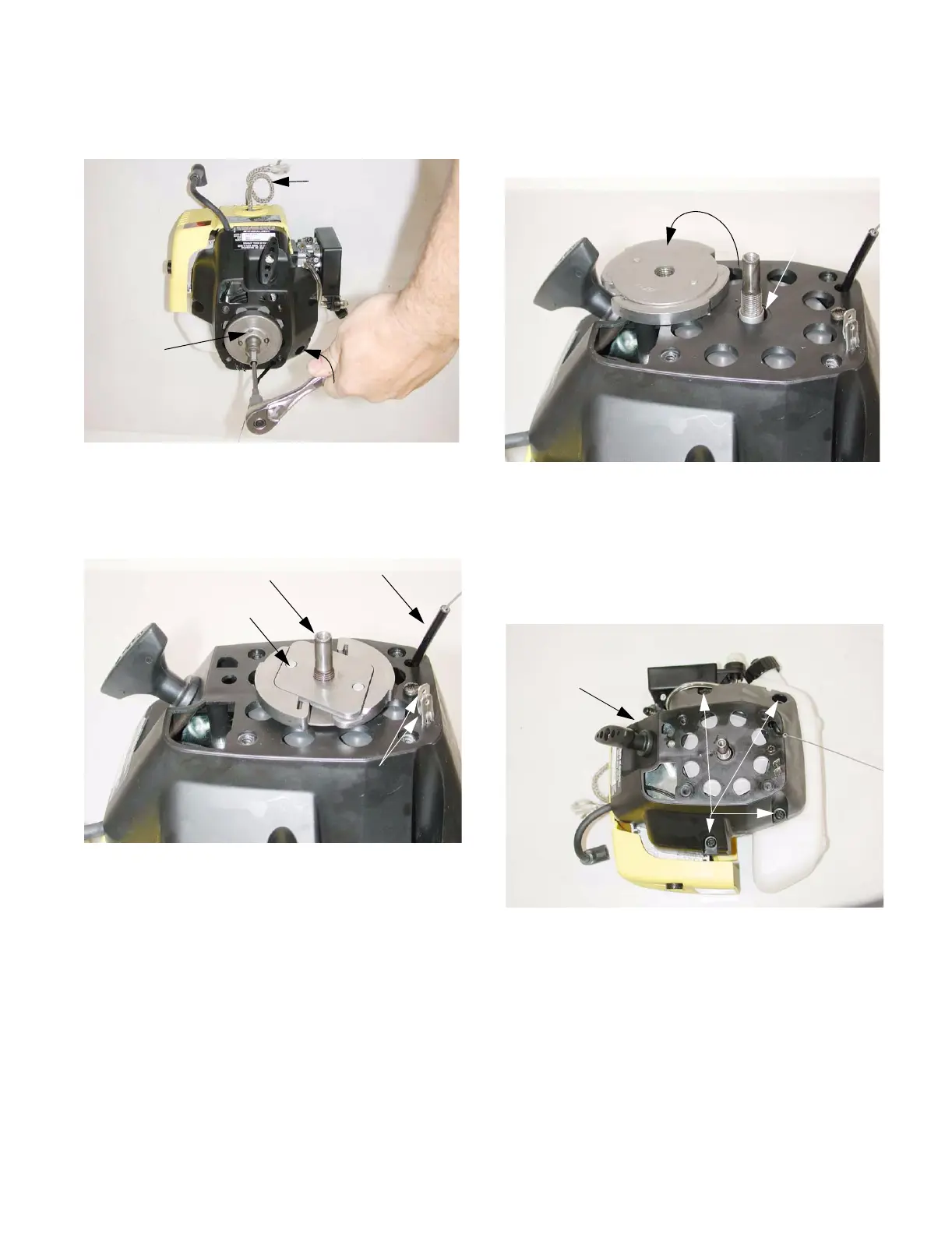

3.16. Remove the clutch drum using a T-25 driver.
See Figure 3.16.
3.17. After the clutch drum is removed, the clutch rotor
can be removed using MTDSW clutch removal
tool # 791-180919. See Figure 3.17.
NOTE: a hammer and soft drift can be used if
the MTDSW tool is unavailable.
Figure 3.16
Clutch drum
Recoil rope used
as a piston stop
Figure 3.17
Crankshaft
Clutch rotor
Spade terminals
for stop switch wires
Throttle cable
3.18. The flat side of the clutch rotor seats against a
tube that surrounds the crankshaft.
See Figure 3.18.
3.19. With the clutch rotor removed, the starter hous-
ing can be removed.
3.20. Take out the four screws holding the starter
housing to the engine using a T-25 driver.
See Figure 3.20.
Figure 3.18
Flat side of clutch rotor
faces starter housing
Tube
Figure 3.20
Starter housing
Screws
