McCulloch 3cc Series User Manual

5

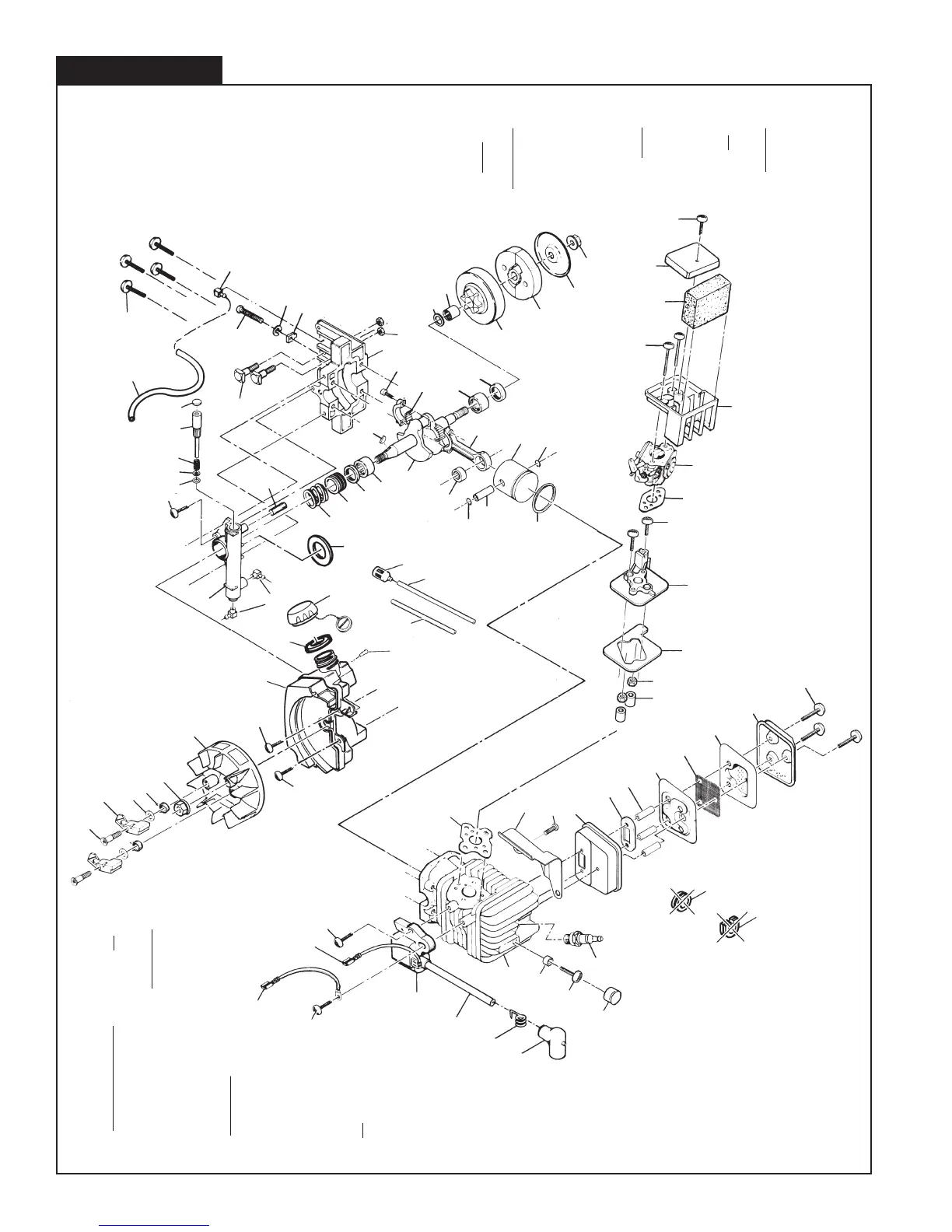

FIGURE 2
POWERHEAD ASSEMBLY
1 A
301304 Oil Pump Asy 1
2 B 322182 . Fitting 2
3 A
301084 . Kit, Gear/Plunger Asy 1
4 A 110582 .. Washer 1
5 - -- -- .. O-Ring 1
6 -
-- -- .. Spring 1
7 - -- -- .. Pin, Dowel 1
8 B 322187 .. Plug, Oil Pump 1
9 A
111226 . Screw, 10-24 x .62 Tr Hd Torx 2
10 A 224814 Worm Gear 1
11 A 224840 Spring, Compression 1
12 A
300295 Seal, Foam, Oil Pump 1
13 A 300288 Connecting Hose 1
14 A 301284 Short Block Asy 1
15 A
83856-01 Bolt, Bar 2
16 B 300257 Fitting 1
17 A 111083 Screw, 12-24 x 1.0 Hx Wshr Hd 4
18 C
323923 Baffle, Air 1
19 A 111054 Screw, 10-24x.625 1
20 A 110676 Nut, Hx 1/4-28 Flange 2
21 - -- -- Crankshaft/Bearing Asy 1
22 A 213282 . Bearing, C’shaft 2
23 A 83859 . Seal, C’shaft Oil 2
24 - -- -- Connecting Rod/Bearing
1
25 - -- -- Screw, Conn Rod 2
26 - -- -- Set, Roller Pins 1
27 B 302220 Flywheel/Pawl Asy 1
28 A 300763-01 . Kit, Flywheel Pawls 2
29 A 216982 .. Spring, Starter Pawl 2
30 C 111131 .. Washer
, Sp .469 OD x .222 ID 2
31 - -- -- .. Pawls 2
32 A 322721 .. Pin, Starter Pawl 2
33 A 102164 Key, Flywheel 1
34 - -- -- Piston 1
35 - -- -- Bearing, Needle-Drawn Cup 1
36 - -- -- Pin, Piston 1
37 - -- -- Ring, Snap 2
38 - -- -- Piston, Ring 1
39 A 110961 Nut, Hx 5/16-24 1
40 A 217936 Screw, Tr 10-24 x .75 Torx 2
41 B 300555 Wire Asy, Ground 1
42 B 300556 Wire Asy, Stop Switch 1
43 A 302138 Ignition Asy 1
44 A 223884 . Kit, Plug Wire 1
45 A 102556 .. Connector 1
46 A 95266 .. Boot 1
47 B 110995 .. Grommet 1
48 B 215533-01 .. Grommet 1
49 A 322208 Spark Plug RDJ7Y 1
50 B
301045 Muffler Asy 1
51 - -- -- . Body 1
52 -
-- -- . Plate, Reinforcing 1
53 - -- -- . Spacer 3
54 - -- -- . Baffle, Inner Muffler 1
55 B
300286 . Screen, Spark Arrester 1
56 - -- -- . Baffle, Outer 1
57 - -- -- . Cover, Muffler 1
58 B
111093 . Screw, 10-24 x 1.75 Tr Hd Torx 3
59 A 300265 Gasket, Insulator 1
60 A 224820 Insulator, Carburetor 1
61 A
218315 Nut, Hx 10-24 2
62 A 322188 Spacer, Rubber 2
63 A 224850 Seal, Foam 1
64 B
217937 Screw, Tr 10-24 x 1.00 Torx 2
65 A 300293 Gasket, Carburetor 1
66 - FIGURE 4 Carburetor/Choke Asy 1
67 A
218083 Screw, Tr 10-24 x 2.0 Torx 2
68 C 224824 Box, Air Filter 1
69 A 224831 Filter, Air 1
70 B 224825 Shield, Carburetor 1
71 A 111055 Screw, 10-14 x .625 Plastite 1
72 A 268656-33 Gas Bar Adj Screw Nut & Ring 1
73 - -- -- . Ring, Retaining
1
74 - -- -- . Nut, Bar Adjusting 1
75 A 302768 Drum/Sprocket/Bearing Asy 1
76 A 91117 . Bearing 1
77 B 215259 Washer, Sprocket
1
78 A 301463 Kit, Clutch Asy 1
79 B 300276 Plate, Dust 1
80 A 111079 Nut, Clutch, 5/16-24 LH 1
81 A 301834 Fuel Tank Asy 1
82 A 300289 . Hose, Fuel Pickup 1
83 A 216985 . Filter, Fuel 1
84 A 322199 . Valve, Duckbill 1
85 A 300290 . Hose, Primer Retain 1
86 A 300564 Cap, Fuel Asy 1
87 - -- -- . Gasket, Fuel Cap 1
88 C 322200 Cover Cylinder 1
89 C 322201 Cover, Spacer 1
90 A 217936 Screw, 10-24x.75 Tr Torx 1
32cc piston and cylinder are no longer available;
for replacement parts the 38cc Shortblock Asy,
PN 301284, must be used
Contents of 38cc Shortblock Asy, PN 301284
Not used on these models
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
ITEM STK PART UNITS
NO. CODE NUMBER DESCRIPTION PER ASY
¡
¿¡
¡
¡
¡
¡
¡
¿¡
¡
¡
¿¡
¡
¡
¡
¡
¬
¬
¡
¿
¡
¡
¡
¬
4
FIGURE 2
POWERHEAD ASSEMBLY
––2
1––––3––
––9
––4
––5
––6
––7
––8
––27
27–
––28––
––29
––30
––31
––32
––43
43–
––44––
––44
––45
––46
––47
––48
––51
––52
––53
––54
50–––55
––56
––57
––58
––81
––82
81–––83
––84
––85
––86
86–
––87
17
16
72
73
74
20
15
8
13
3
6
4
5
9
7
14
25
23
26
21
22
23
35
10
11
12
83
82
85
84
86
1
2
81
37
36
38
34
37
22
76
75
78
79
80
71
70
69
67
68
66
64
65
60
63
61
62
58
57
54
56
55
53
52
51
19
18
59
49
88
9
46
89
43
41
42
40
90
44
32
31 30
29
39
9
27
87
40
45
48
14
47
30
24
77
––21
21–––22
––23
