McCulloch 96192004000 - Page 23

23
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4
01.11.001-B
4
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 174762
X431 SKID PLATE LH
2 178777X431 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18

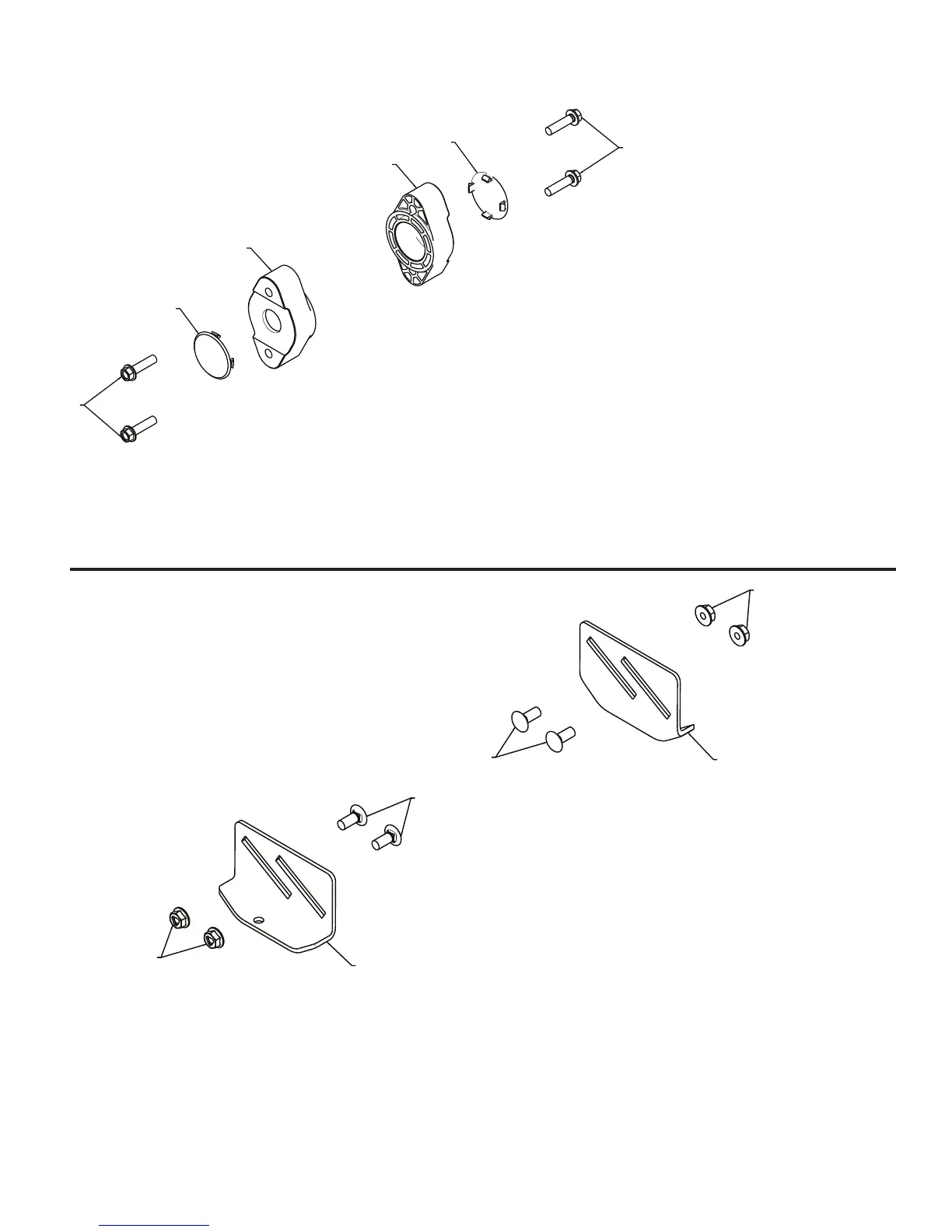

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
AUGER HOUSING / IMPELLER ASSEMBLY
1
1
2
3
2
3
01.07.024-B
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
