McCulloch 96192004000 - Bag of Parts

36
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
01.14.009-A
1
1 422663 SAFETY IGNITION KEY

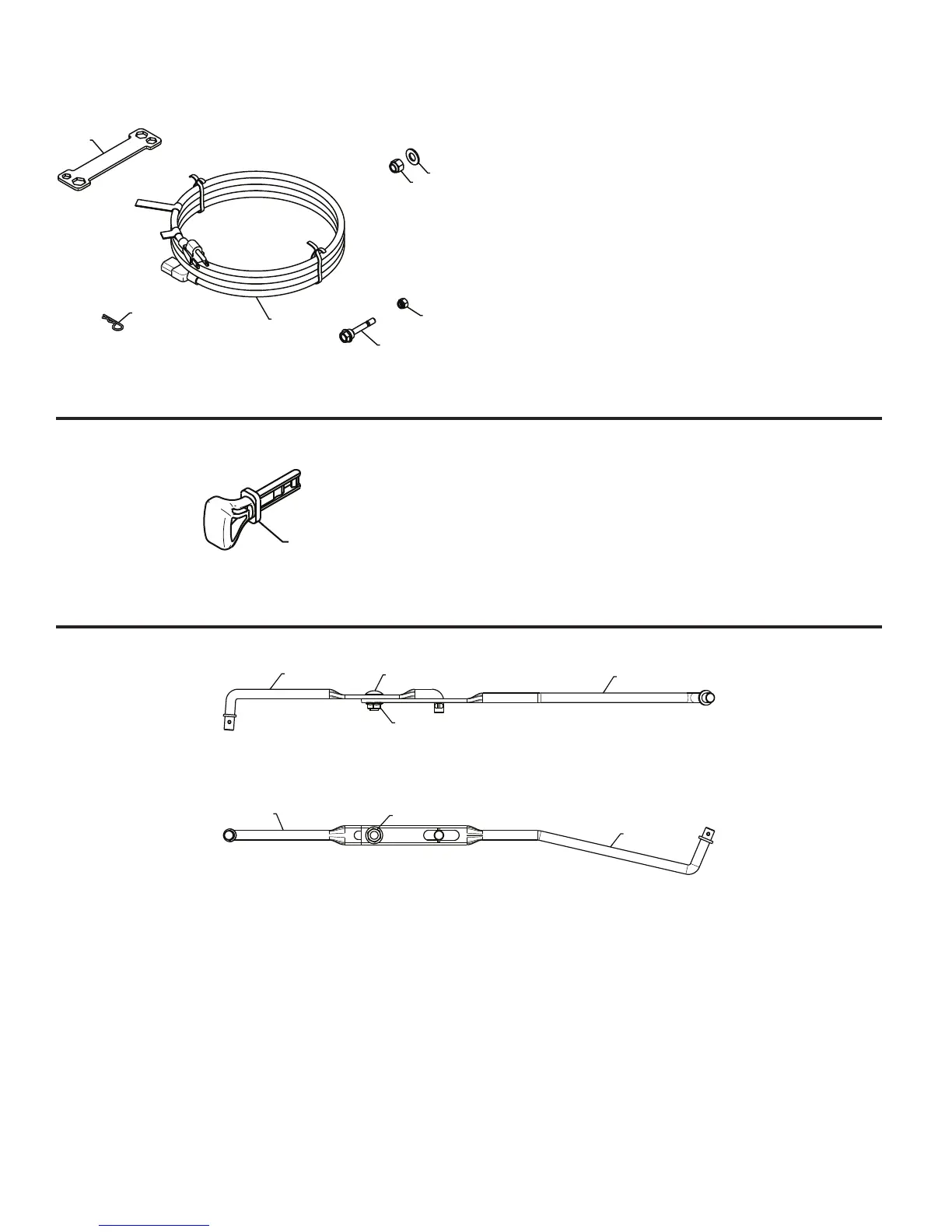

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
1
2
2
3
01.14.012-A
4
4
1 180445 SHIFTER ROD TOP
2 187716 SHIFTER ROD BOTTOM
3 72270505 CARRIAGE BOLT 5/16-18 X .75
4 155377 NUT 5/16-18
1
2
3
4
5
6
7
01.14.004-B
1 198563 POWER CORD
2 169675 RETAINER PIN
3 180684X008 WRENCH
4 73800600 LOCKNUT 3/8−16
5 19131316 WASHER 3/8
6 192090 SHEAR BOLT 1/4−20 X 1−3/4
7 73800400 LOCKNUT 1/4−20
