35
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)

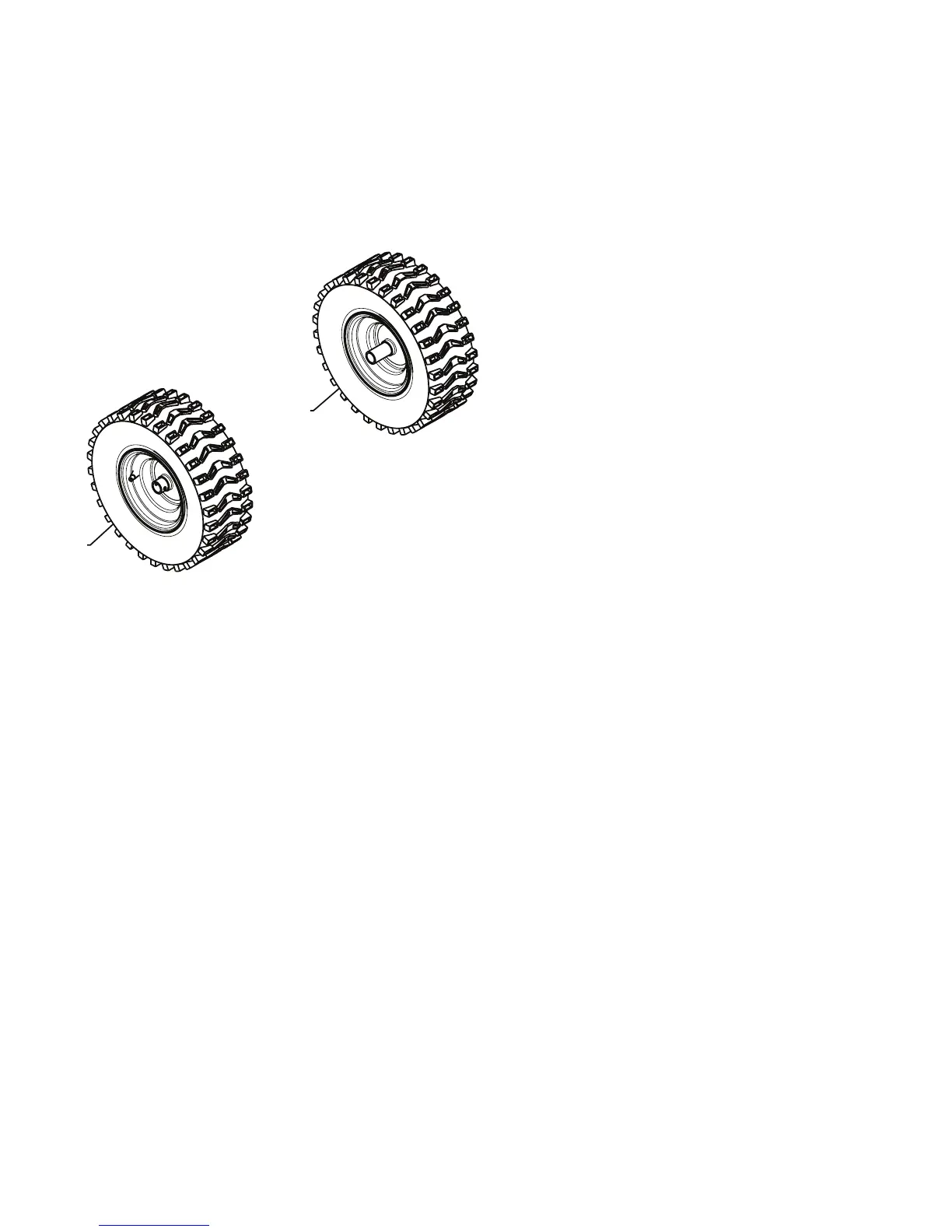

WHEELS
KEY PART
NO. NO. DESCRIPTION
1
2
01.06.012-A
1 433665X421 WHEEL ASSEMBLY LH
2 433666X421 WHEEL ASSEMBLY RH
