32
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1a
1b
1b
4
3
3
4
5
6
6
7
5
2
01.03.005-B
1 188226 (assy of 1a,1b) AXLE ASSEMBLY
1a 179352 AXLE SHAFT
1b 184206 ROLL PIN 3/16
2 402691 SPROCKET
3 174697 THRUST WASHER
4 179830 BEARING
5 17490508 BOLT 5/16−18 X .500
6 155443 CLIK PIN
7 189282 SQUARE KEY

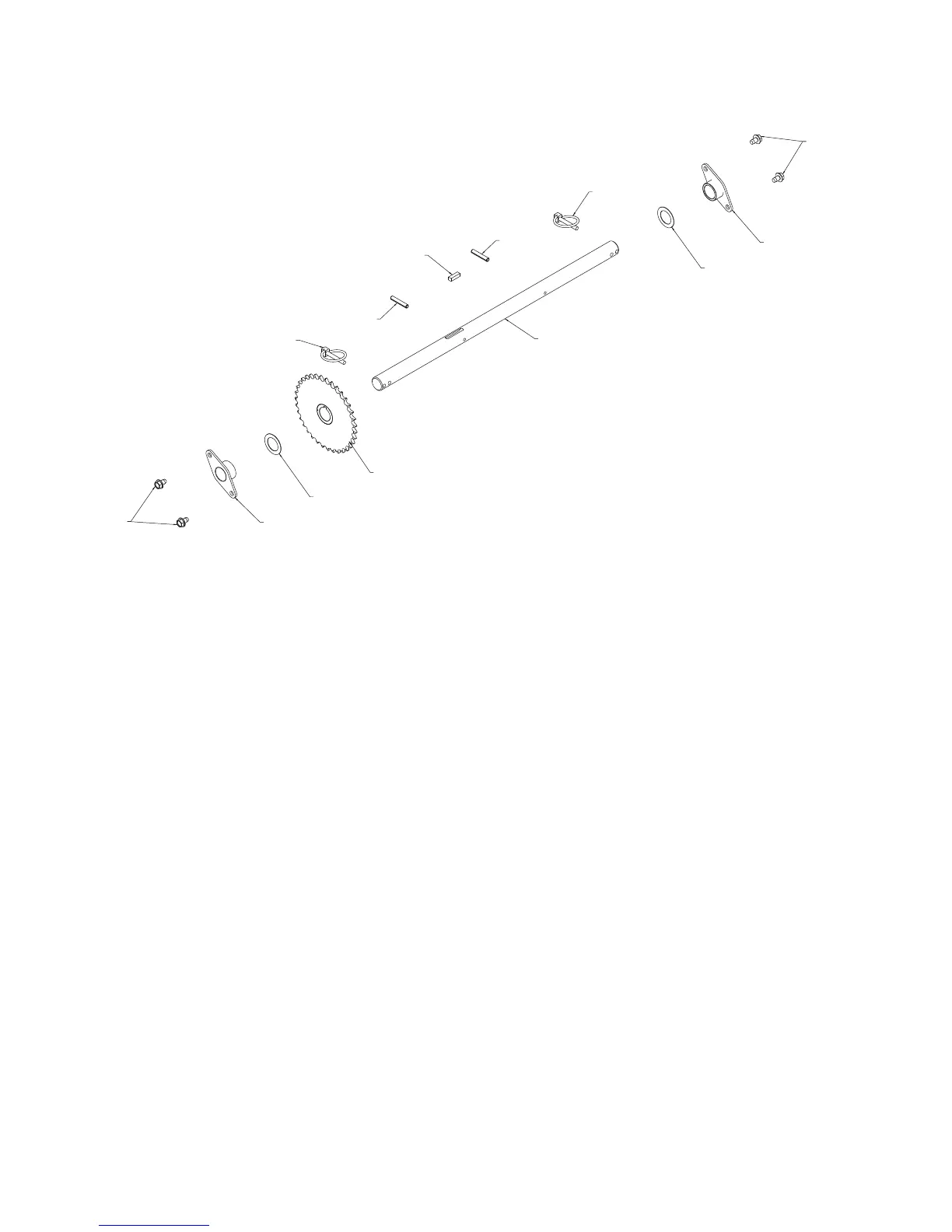

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
DRIVE
