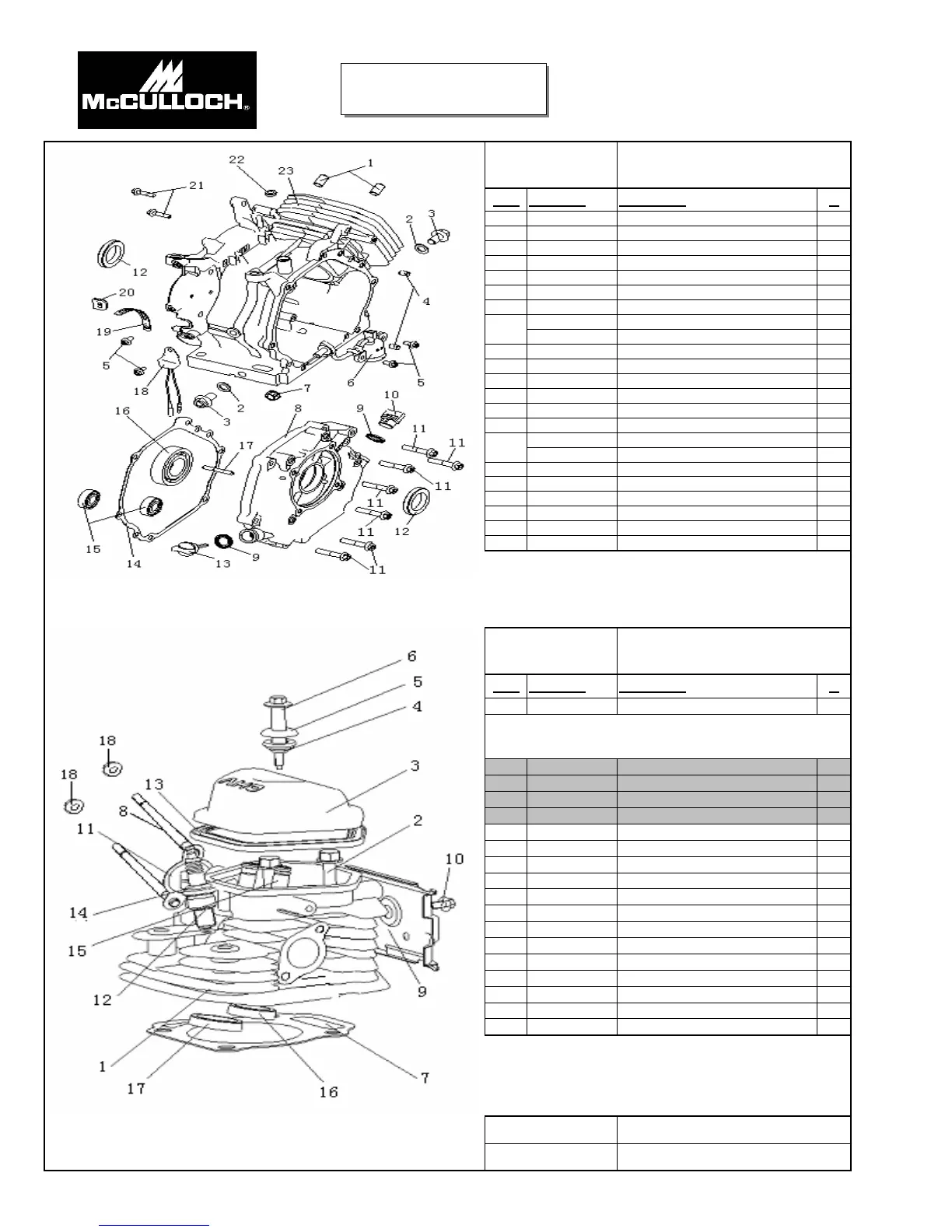

McCulloch FG6000MKUD-C - Crankcase Assembly; Cylinder Head Assembly

A1
No. Parts No. Description Q
1 014206Q01F000 BUSH, LOCATING 2
2 026203J01F000 SEAL-OIL DRAIN PLUG 2
3 026202J01F000 OIL DRAIN PLUG 2
4 026208G03F000 DOWEL PIN 2
5 0B01070601262 BOLT M6X12 4
6
026350Q01F000 FLOAT ASSEMBLY-LOW OIL LEVEL 1
7
015230J03F000 NUT 1
014000Q10F000 COVER ,CRANKCASE 1
0B12016620750 BEARING 6207 1
9 026132K07F000 SEAL-OIL FILL PLUG 2
10 026131K07F000 OIL FILL PLUG 1
11
0B01070804062 BOLT M8X40 7
12
026133Q01F000 OIL SEAL 2
13
014216K07F000 OIL LEVEL DIPSTICK 1
14
026201Q01F000 GASKET-CRANKCASE COVER 1
0B12016620250 BEARING 6202 2
026001Q10F000 CRANKCASE ASSEMBLY 1
17
014202Q01F000 PIN 1
18
026450Q01F000 LOW OIL SWITCH 1
19
014220Q01F000 CLIP CORD 1
20
026125Q01F000 SEAL GASKET, RUBBER 1
21
0B01070602562 BOLT M6X25 2
22 026229Q01F000 OIL SEAL 1
A2
No. Parts No. Description Q
1 030730Q01F000 CYLINDER HEAD ASSEMBLY 1
14
030109Q01F000 GUIDE, INTAKE VALVE 1
15
030207Q01F000 GUIDE, EXHAUST VALVE 1
16
030206Q01F000 SEAT, EXHAUST VALVE 1
17
030110Q01F000 SEAT, INTAKE VALVE 1
2 030504Q01F000 BOLT, CYLINDER HEAD 4
3 030700Q01F000 COVER-ROCKER ARM 1
4
030522Q01F000 SPACER, SEAL 1
5
030538Q01F920 CLAMP 1
6
030502Q01F920 BOLT 1
7
030503Q01F000 GASKET-CYLINDER HEAD 1
8
030520Q01F910 BOLT, INTAKE PIPE 2
9
020301Q01F000 CYLINDER COWLING 1
10 0B01070601262 BOLT M6X12 1
11 030715Q01F000 GASKET-INTAKE PIPE TO HEAD 1
12
030506Q01F910 SPARK PLUG 1
13
030702Q01F000 GASKET-ROCKER ARM COVER 1
18 0B04070600062 NUT M6 2
DATE
27-Feb-06
CRANKCASE ASSEMBLY
8&16
15&23
CYLINDER HEAD ASSEMBLY
CYLINDER HEAD ASSEMBLY INCLUDES VALVE SEATS AND GUIDES.
SEATS (16 & 17) AND GUIDES (14 & 15) CAN NOT BE PURCHASED
SEPARATELY!
REVISION
SPARE PARTS LIST
11HP FG6000MK
5/12
