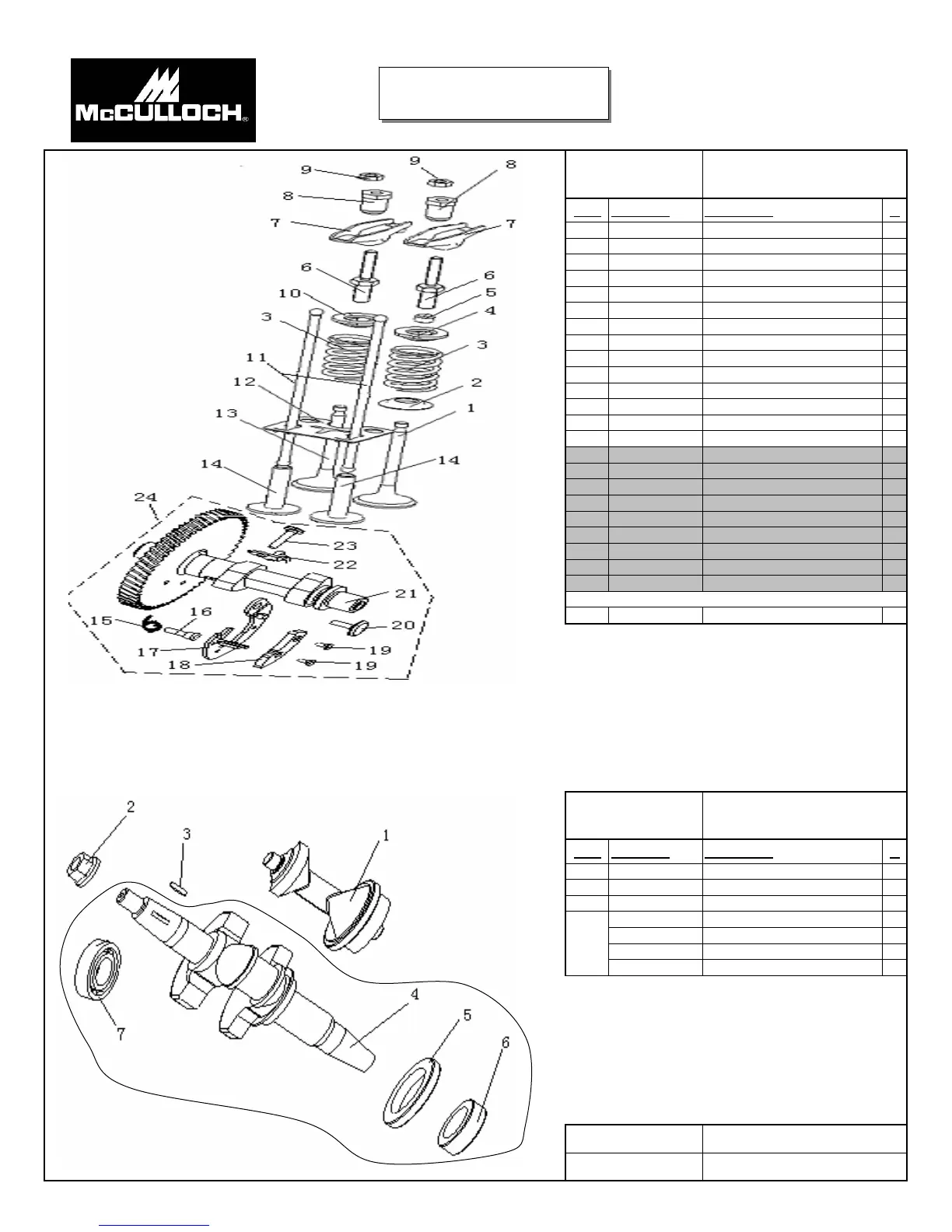

McCulloch FG6000MKUD-C - Page 6

A3
No. Parts No. Description Q
1 030201Q01F000 EXHAUST VALVE 1
2 030105Q01F000 LOWER RETAINER 1
3 030101Q01F930 VALVE SPRING 2
4 030106Q01F000 EXHAUST VALVE SPRING RETAIN
E
1
5 030214Q01F000 VALVE ROTATOR 1
6 030303Q01F000 PIVOT BOLT 2
7 030301Q01F000 VALVE ROCKER ARM 2
8 030313Q01F000 ROCKER ARM PIVOT 2
9 030302Q01F930 PIVOT ADJUSTING NUT 2
10 030203Q01F000 INTAKE VALVE SPRING RETAINE
R
1
11 030230Q01F000 PUSH ROD 2
12 030231Q01F000 PUSH ROD GUIDE PLATE 1
13 030103Q01F000 INTAKE VALVE 1
14 030312Q01F000 VALVE LIFTER 2
15 030605Q01F000 SPRING 1
16 030608Q01F000 PIN I 1
17 030611Q01F000 FLY WEIGHT 1 1
18 030612Q01F000 FLY WEIGHT 2 1
19 030607Q01F000 PIN IV 2
20 030609Q01F000 PIN II 1
21 030401Q01F000 CAMSHAFT 1
22 030600Q01F000 DECOMPRESS LIFTER 1
23 030613Q01F000 PIN III 1
24 030400Q01F000 CAMSHAFT COMP. 1
A4
No. Parts No. Description Q
1 015239Q01F000 BALANCE SHAFT 1
2 015230Q01F910 NUT, FLYWHEEL 1
3 015116Q01F000 WOODRUFF KEY, FLYWHEEL 1
015201Q03F000 CRANKSHAFT 1
015207Q01F000 CRANKSHAFT GEAR 1 1
015237Q01F000 CRANKSHAFT GEAR 2 1
0B12016620750 BEARING 6207 1
DATE
27-Feb-06
4-7
REVISION
CAMSHAFT & VALVES
CAN'T BUY NO. 15-23 SOLELY. (PLS PURCHASE NO. 24)
CRANKSHAFT
ASSEMBLY, V TYPE
SPARE PARTS LIST
11HP FG6000MK
6/12
