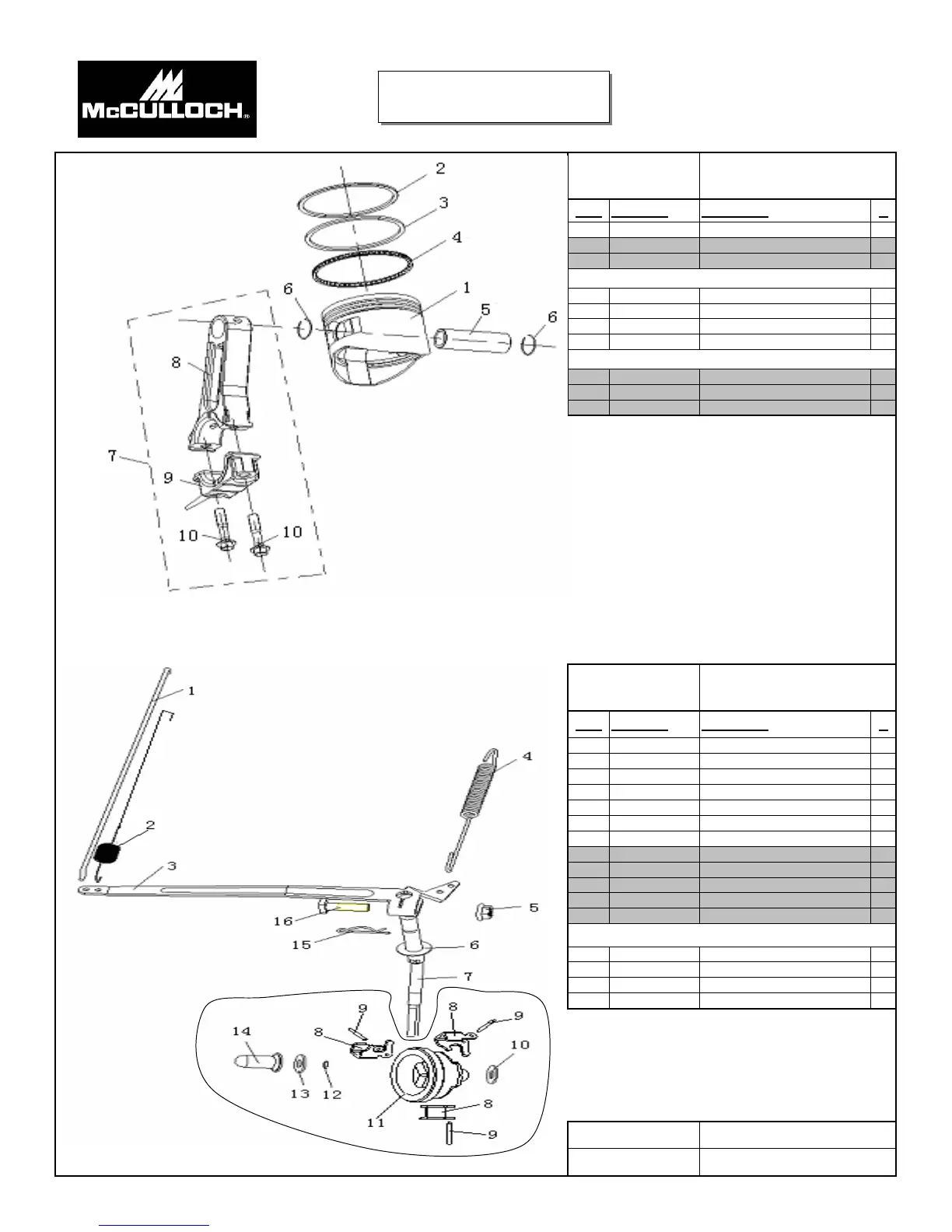

McCulloch FG6000MKUD-C - Page 7

A5
No. Parts No. Description Q
1 015100Q01FF10 PISTON 1
2 015103Q01F940 RING 1ST 1
3 015104Q01F000 RING 2ND 1
4 015300Q01F000 RING SET COMPLETE (ref. 2, 3, 4
)
1
5 015105Q01F000 PIN, PISTON 1
6 015106Q01F930 CIRCLIP 2
7 015130Q01F000 CONNECTING ROD COMPLETE 1
8 015131Q01F000 CONNECTING ROD 1
9 015132Q01F000 CONNECTING ROD CAP 1
10 015133Q01F930 CONNECTING ROD BOLT 2
A6
No. Parts No. Description Q
1 017594Q01F920 GOVERNOR LINK 1
2 017593Q01F000 ANTI-RATTLE SPRING 1
3 017581Q01F920 GOVERNOR LEVER 1
4
017592Q01F000 GOVERNOR SPRING 1
5
0B04070600062 NUT M6 1
6
017584Q01F930 WASHER 1
7
017582Q01F000 GOVERNOR SHAFT & FORK 1
8
017588Q01F000 GOVERNOR WEIGHT 3
9 017591Q01F000 GOVERNOR WEIGHT PIN 3
12
026146L01F000 CLIP 1
13
017585Q01F000 WASHER 1
14
017583Q01F000 PLUNGER 1
11
017587Q01F000 GOVERNOR GEAR COMPLETE 1
10
017586L01F000 WASHER 1
15
017590Q01F930 CLIP 1
16
017589Q01F920 BOLT, SQUARE HEAD 1
DATE
27-Feb-06
CONNECTING ROD &
PISTON
CAN'T BUY NO. 2-3 SOLELY. (PLS PURCHASE NO. 4)
CAN'T BUY NO. 8-10 SOLELY. (PLS PURCHASE NO. 7)
GOVERNOR
COMPONENTS
CAN'T BUY NO. 8, 9, 12-14 SOLELY. (PURCHASE NO. 11)
REVISION
SPARE PARTS LIST
11HP FG6000MK
7/12
