REPAIR PARTS
TRACTOR- -MODEL NO. MC1292RB (96061001801), PRODUCT NO. 960 61 00-18

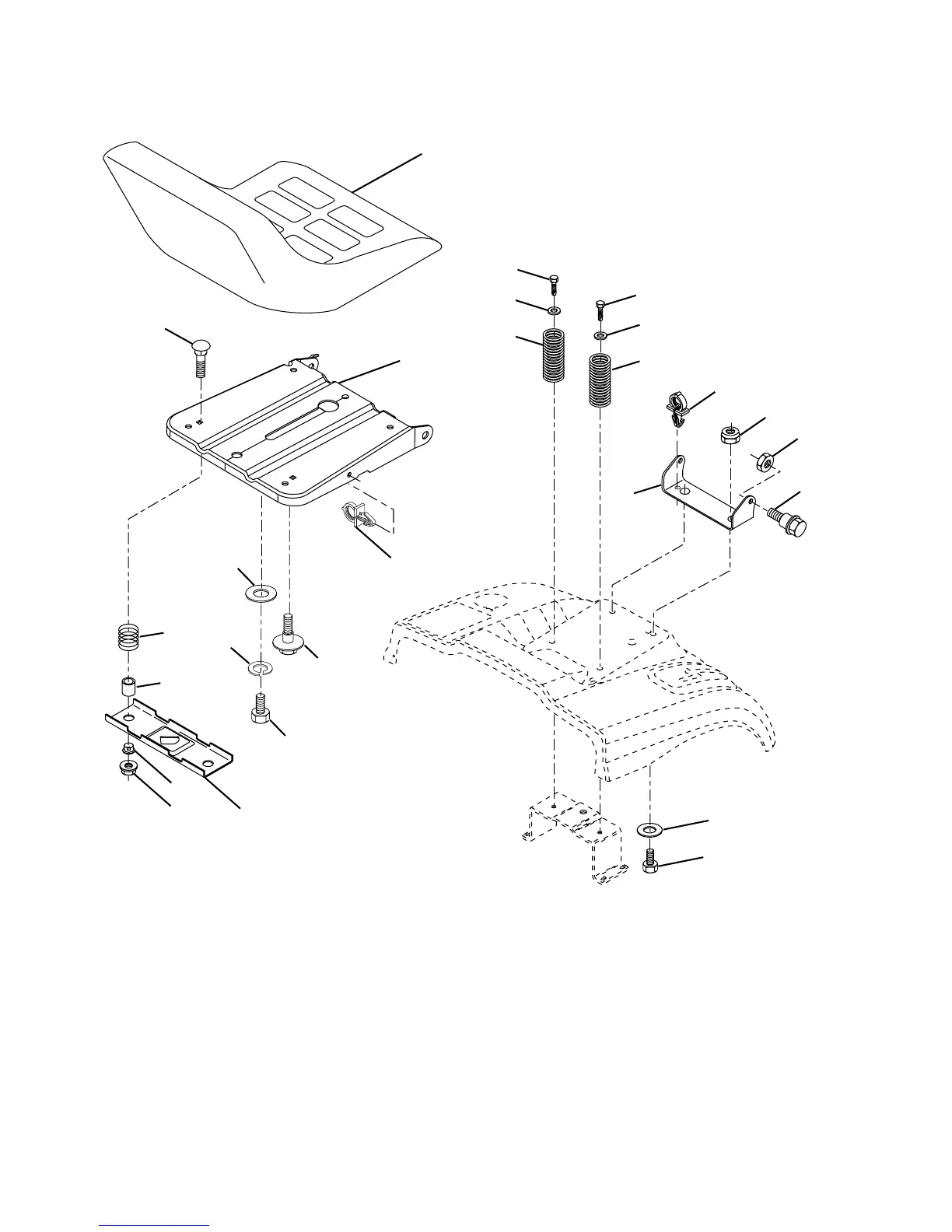

SEAT ASSEMBLY
1 532 17 53-89 Seat
2 532 14 05-51 Bracket Pnt Pivot Seat (blk )
3 871 11 06-16 Bolt Fin Hex 3/8-16 unc x 1
4 819 13 16-10 Washer Flat 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push In Hinged
6 873 80 06-00 Nut Lock Hex 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1-1/2
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 18 24-93 Pan Pnt Seat (blk )
12 532 12 12-46 Bracket Pnt Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 532 13 43-00 Spacer Split
16 532 12 12-50 Spring Cprsn Plate SW 1.310 Ga.
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A
22 873 80 05-00 Nut Hex Lock w/Ins 5/16-18
23 871 11 08-14 Bolt Hex Black
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x 62
26 810 04 08-00 Washer Lock Hvy Hlcl Spr 1/2
To Next Page
