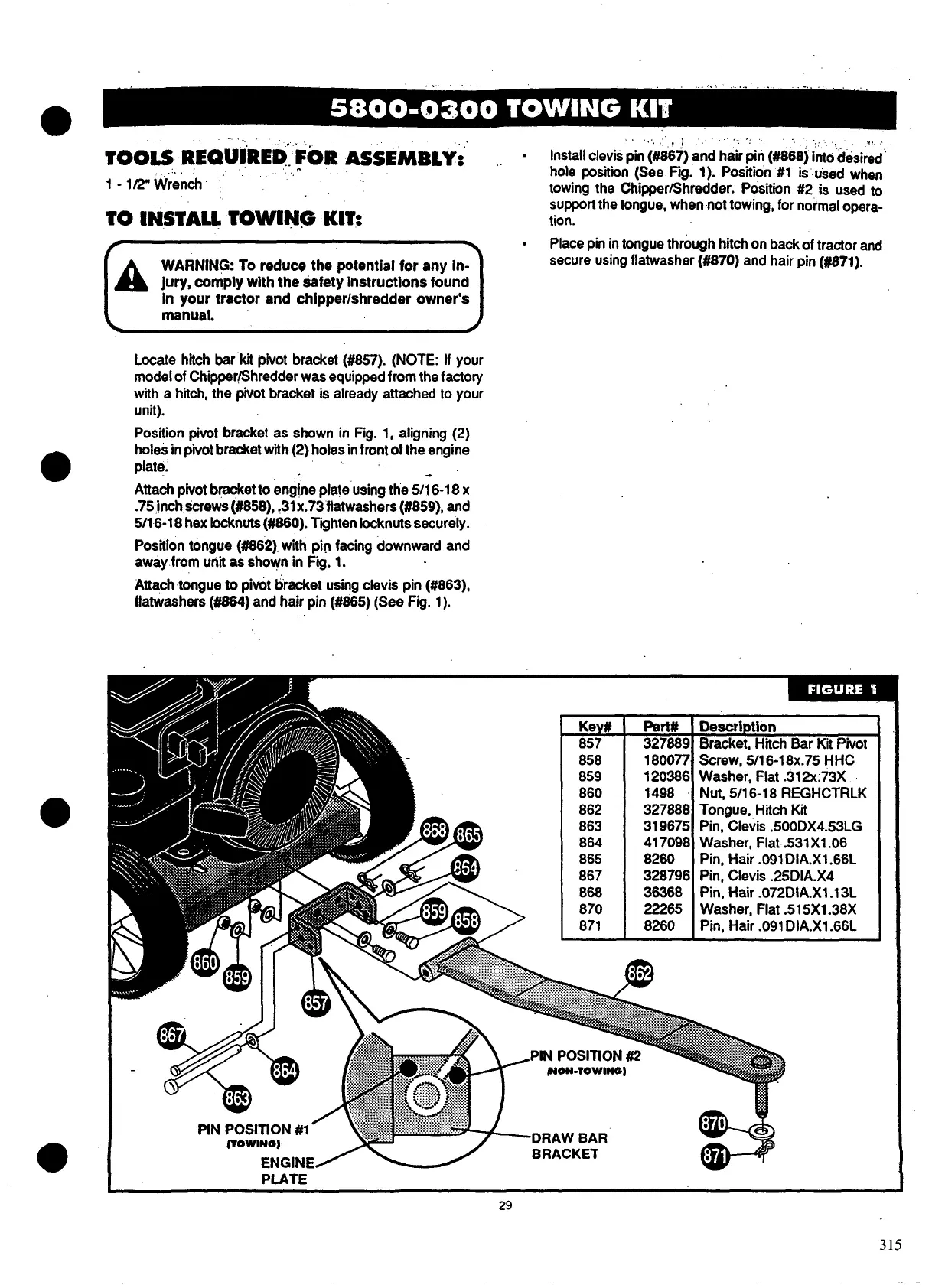

TOOLS,,REQU[RED.:FOR ASSEMBLY:” .. ●
Install clevis pin (#667) and hairpin (#@68~into’desirsd’
hole positiin (See. Fig. 1). Position “#1 is used when
1 -1/2” WrenA ““ ,’ “’ ~ ‘
towing the Chipper/Shredder. Positiin #2 is used to
support the tongue, when not towing, for normal opara-
10 iNSTAL&TOWING KIT:
tion.
A
WARNING: To reduce the potential for any in-
jury, comply with the safety Instructions found
in your tractor and chipper/shredder owner’s
manual.
.
Place pin in tongue through hitch on back of tractor and
secure using flatwasher (#870) and hairpin (#871).
Locate hitch bar kit pivot bracket (#857). (NOTE: If your
model of Chipper/Shredder was equipped from the factory
with a hitch, the pivot bracket is already attached to your
unit).
Position pivot bracket as shown in Fg. 1, aligning (2)
holes in pivot bracket with(2) holes infront of the engine
plate:
Anach pivot bracket to en~ne plate’using the 5/16-18 x
.75inch,screws (#858), .31x.73 flatwashers (#859), and
5/16-1 8 hex locknuts (#660). Tiihten locknuts securely.
Position tongue (#662) with pin facing downward and
away from
unitas shown in FQ. 1.
Attach tongue to pivbt bracket using clevis pin (#863),
flatwashers (#864) and hairpin (#865) (See FQ. 1).
Key# Psrt#
Description
857
327889
Bracket, Hitch Bar Kti Pwot
858 180077
Screw, 5/16-18x.75 HHC
859 120386
Washer, Flat .312x.73X.
860 1498
Nut, 5/16-18 REGHCTRLK
862 327888
Tongue, Hitch Kn
863 319675
Pin, Clevis .500DX4.53LG
864
417098
Washer, Flat .531Xl .06
865
8260
Pin, Hair .091DIA.X1 .66L
867 328796
Pin, Clevis .25DIA.X4
868 36368
Pin, Hair .072DIA.X1 .13L
870 22265
Washer, Flat .515X1 .38X
871 8260
Pin, Hair .091DIA.X1 .66L
PLATE
—
29
315
