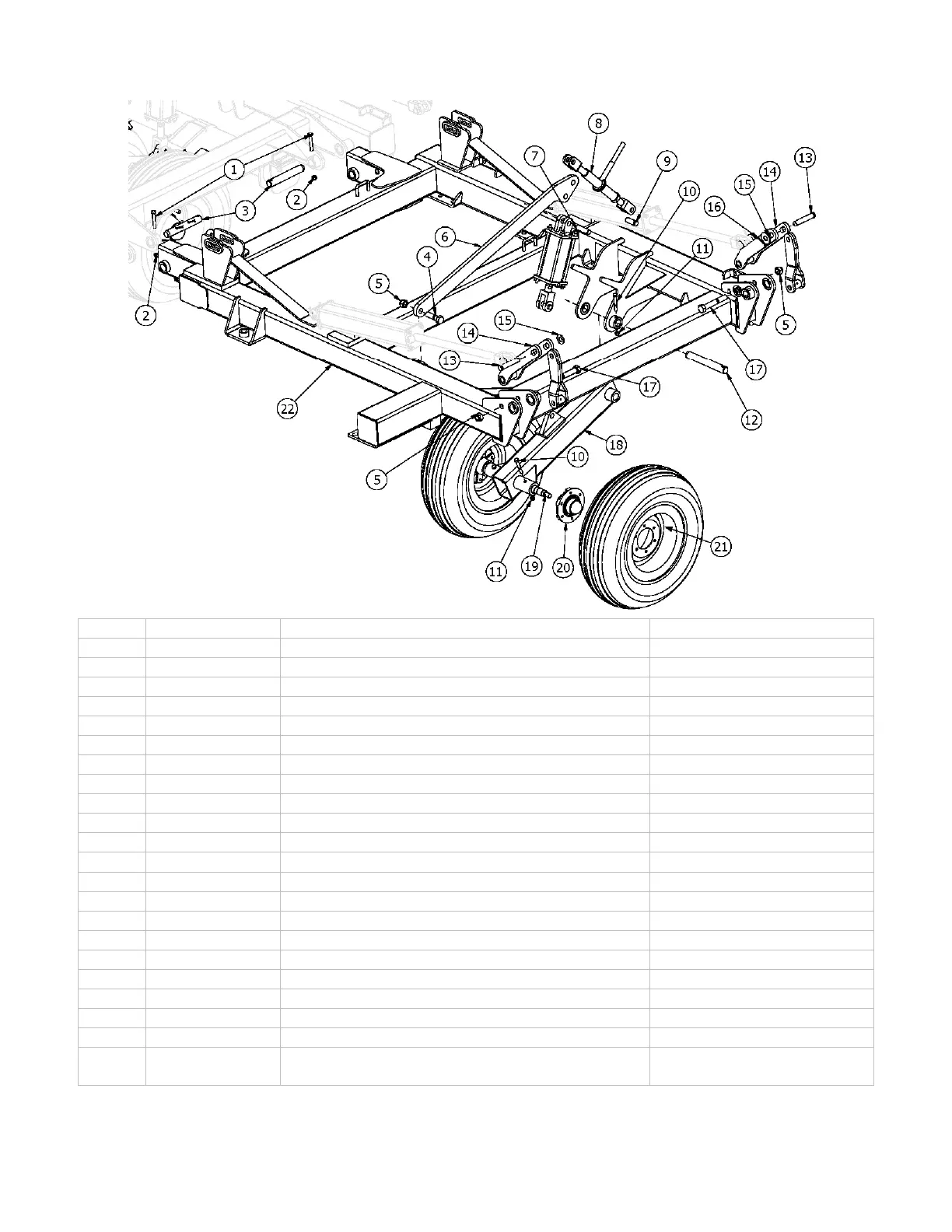

WI NG FRAME, I NSI DE
FOR 4045
Key Part No. Description Notes/ Revisions
1 BHY-5635 9/ 16 - 12 X 3 1/ 2 GRADE 8 BOLT
2 NLT-5612 9/ 16-12 TOP LOCK NUT
3 RT-2107 WI NG HINGE PI N, 1 1/ 2 X 9 5/ 8
4 BHY-1033 1” – 8 X 3 1/ 4 GRADE 8 HEX BOLT
5 NLT-1008 1” – 8 TOP LOCK NUT
6 RD-4624 WI NG AXLE CYLINDER ARM
7 HYO-2103 CYLINDER CLEVIS PI N, 1 X 3
8 HYO-2008 RATCHET JACK, 8” STROKE
9 HD-1149 1 X 2 1/ 2 CLEVIS PI N
10 BHY-5635 9/ 16 - 12 X 3 1/ 2 GRADE 8 BOLT
11 NLT-5612 9/ 16-12 TOP LOCK NUT
12 WDL-2714 WI NG AXLE PI VOT PI N, 1 1/ 2 X 11 1/ 16
13 CL-1005 PIN, CLEVIS, 1 X 5
14 RD-4423 WI NG LINKAGE ASSEMBLY
15 FWP-0100 1” PLAIN FLAT WASHER
16 CP-3620 3/ 16 X 2 COTTER PIN
17 BHY-1065 1” – 8 X 6 1/ 2 GRADE 8 HEX BOLT
18 RD-4490 WI NG AXLE, DUAL
19 WDL-2505 WI NG AXLE SPI NDLE
20 HD-1371 6-HOLE HUB ASSEMBLY
21 HD-1368 RI M, 15X8, 6 BOLT, 2900 LB.
22
22
RD-4632
RD-4633
WI NG FRAME ASSEMBLY, LEFT I NSI DE
WI NG FRAME ASSEMBLY, RIGHT I NSI DE
