MLA210 Digital Lock
User Manual

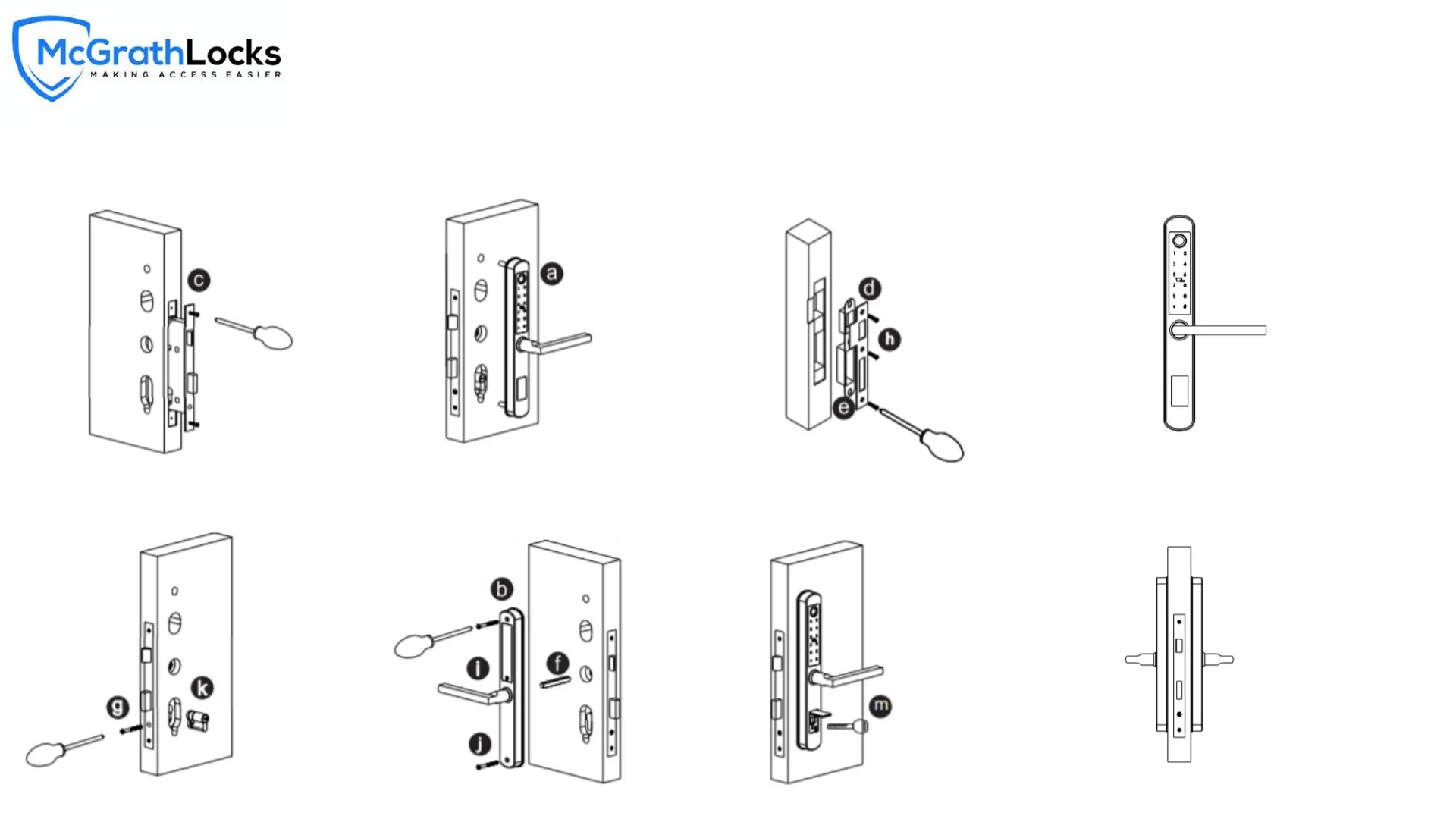

INSTALLATION STEPS :
11
1. Assemble the Mortise
Assemble the mortise (C) into the slot which
is drilled according to the template.
2. Assemble the Cylinder
Fix the cylinder (K) with the long screw
through the hole on the faceplate.
3. Assemble the Front Panel
Tight the front panel on the door(outside).
4. Assemble the back panel
Tight the back panel with front panel with the
two long screws (F).
5. Assemble the Strike and Box
Put the strike box into the slot and fix the strike
with the screws.
6. Test with the mechanical key
Test to unlock the door with the mechanical
key and adjust the position if it is not smooth.
7. Test the Lock
Put 4pcs AAA alkaline batteries into the battery box
and test with factory passcode or APP .
8. Adjust the Lock Panel
After test, please adjust the position of the
lock panel or the screws if it is too tight.
