The MLA210 Digital Lock is a sophisticated 5-in-1 smart door lock designed to provide secure and convenient access to your home. It integrates multiple unlocking methods, including a Bluetooth App, fingerprint recognition, PIN code, RFID card, and a traditional manual key, offering a versatile and reliable entry solution.

Function Description:

The primary function of the MLA210 Digital Lock is to secure your door while offering various modern access methods. It operates via a Bluetooth-enabled app, allowing users to manage access, generate temporary codes, and view unlock records remotely. Fingerprint recognition provides quick and secure entry, while PIN codes offer a traditional digital access method. RFID cards can be programmed for convenient tap-and-go entry, and a manual key serves as a reliable backup. The lock is designed for ease of use, with a touch screen keypad for PIN entry and a free-style handle for comfortable operation.

Important Technical Specifications:

Unlocking Methods: App (Bluetooth), Fingerprint, PIN Code, RFID Card (Mifare 13.56 MHz), Manual Key.
Material: Constructed from durable 304# stainless steel, ABS, and Acrylic, ensuring longevity and resistance to wear.
Color Options: Available in Silver and Black.
Door Thickness Compatibility: Designed for doors with a thickness ranging from 38mm to 55mm.
Communication Mode: Bluetooth 4.0, with Wi-Fi connectivity available via an optional Wi-Fi Bridge for remote access.
Support System: Compatible with Android 4.4 / iOS 7.0 and above.
Battery Life: Offers an impressive 10,000 normal open cycles, equivalent to approximately 12 months of use.
Power Supply: Requires 4pcs AAA Alkaline batteries.
Working Temperature: Operates effectively in temperatures from -20°C to 50°C (-4°F to 149°F for external assembly, 14°F to 131°F for internal assembly).
Working Humidity: Functions reliably in humidity levels from 10% to 95%.
Available Mortise Options: Supports a wide range of European mortise sizes, including 28/85, 35/85, 45/85, 40/85, 50/85, 65/85, and 70/85.
User Capacity: Can store up to 120 user profiles.
Identification Time: Recognizes users in under 0.3 seconds.
Code Length: User-defined 4-8 digit PIN codes.
Keypad Backlight: Yes.
Warranty: Comes with a 12-month warranty.
IP Rating: IP65, indicating protection against dust and water jets.
Finish: Satin Nickel or Black.
Dimensions: Exterior Assembly: 330 x 43 x 22.5 mm; Interior Assembly: 330 x 43 x 22.5 mm.
Weight: Approximately 3 kg.
Unlock Time: 1-1.5 seconds.
Dynamic Current: <200mA.
Static Current: 45uA.
Compatible Smart Home Ecosystem: Works with Alexa and Google Assistant when a Wi-Fi Gateway is connected.
Hardware Type: Lever.
Door Handing: Reversible (Left and Right).

Usage Features:

Easy Installation: The manual provides detailed steps for installation, including line drawing, mortise assembly, cylinder assembly, front panel and back panel assembly, and strike box installation. It also includes instructions for adjusting the handle direction to suit different door configurations (left push, right push, left pull, right pull).

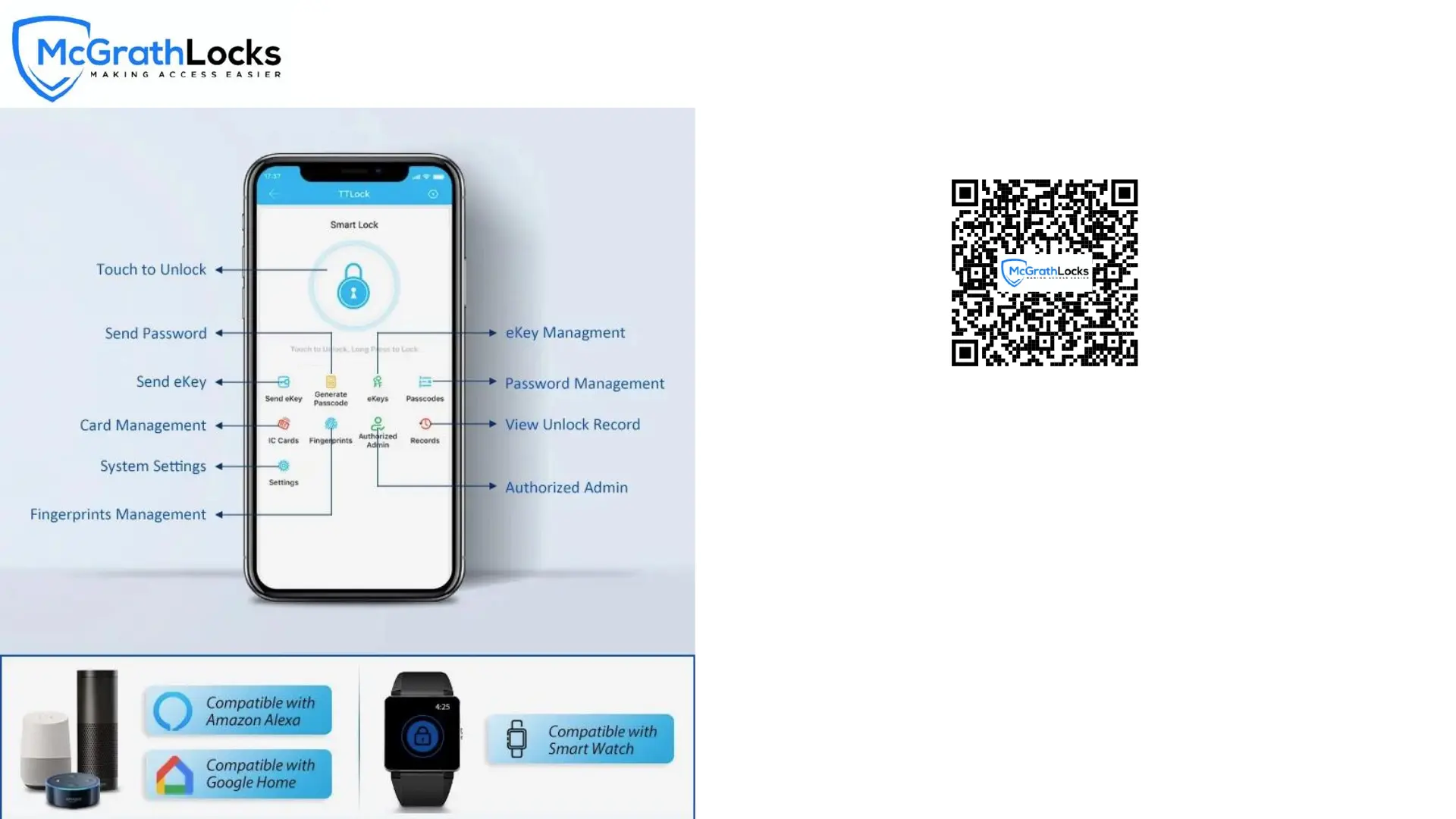

Bluetooth App Control: The TT Lock app allows for comprehensive management of the lock, including unlocking, sending temporary passwords, managing eKeys, viewing unlock records, and authorized administration. The app is compatible with both iOS and Android devices.
Fingerprint Recognition: Provides a fast and secure method of entry, eliminating the need for keys or codes.
PIN Code Entry: Users can set their own 4-8 digit PIN codes via the touch screen keypad.
RFID Card Access: Offers a convenient tap-to-unlock option with RFID cards.
Manual Key Override: A traditional key slot is available for emergency access or as a backup.
Factory Reset: The lock can be reset to its factory default state (passcode 123456) by pressing the reset button for 2 seconds, which also sets the handle to a free state.
Adjustable Handle Direction: The handle direction can be easily changed to accommodate various door orientations, ensuring flexibility during installation.
Smart Home Integration: With an optional Wi-Fi Gateway, the lock can be integrated with Amazon Alexa and Google Assistant for voice control and enhanced smart home functionality.

Maintenance Features:

Battery Management: The lock uses four AAA alkaline batteries. Users are advised not to mix old and new batteries or batteries from different brands.
Cleaning: To maintain the lock's appearance and functionality, it should be cleaned with clean water and a mild cleaner on a soft, non-abrasive cloth. Avoid applying cleaners directly to any part of the lock.
Protective Film: A protective film on the front touch panel can be removed if scratched, ensuring the display remains clear.
Troubleshooting: The manual provides guidance on initial setup, including the lock's default open state before power-on and the automatic switch to private mode after setting an admin and pairing with the app. For any issues not covered in the manual, customer service is available.
Mechanical Key Test: After installation, it is recommended to test the lock with the mechanical key to ensure smooth operation and adjust the position if necessary.
Panel Adjustment: After testing, the lock panel or screws can be adjusted if they are too tight, ensuring optimal performance.

The MLA210 Digital Lock is a robust and user-friendly solution that combines advanced security features with modern convenience, making access easier and more secure for homeowners.
