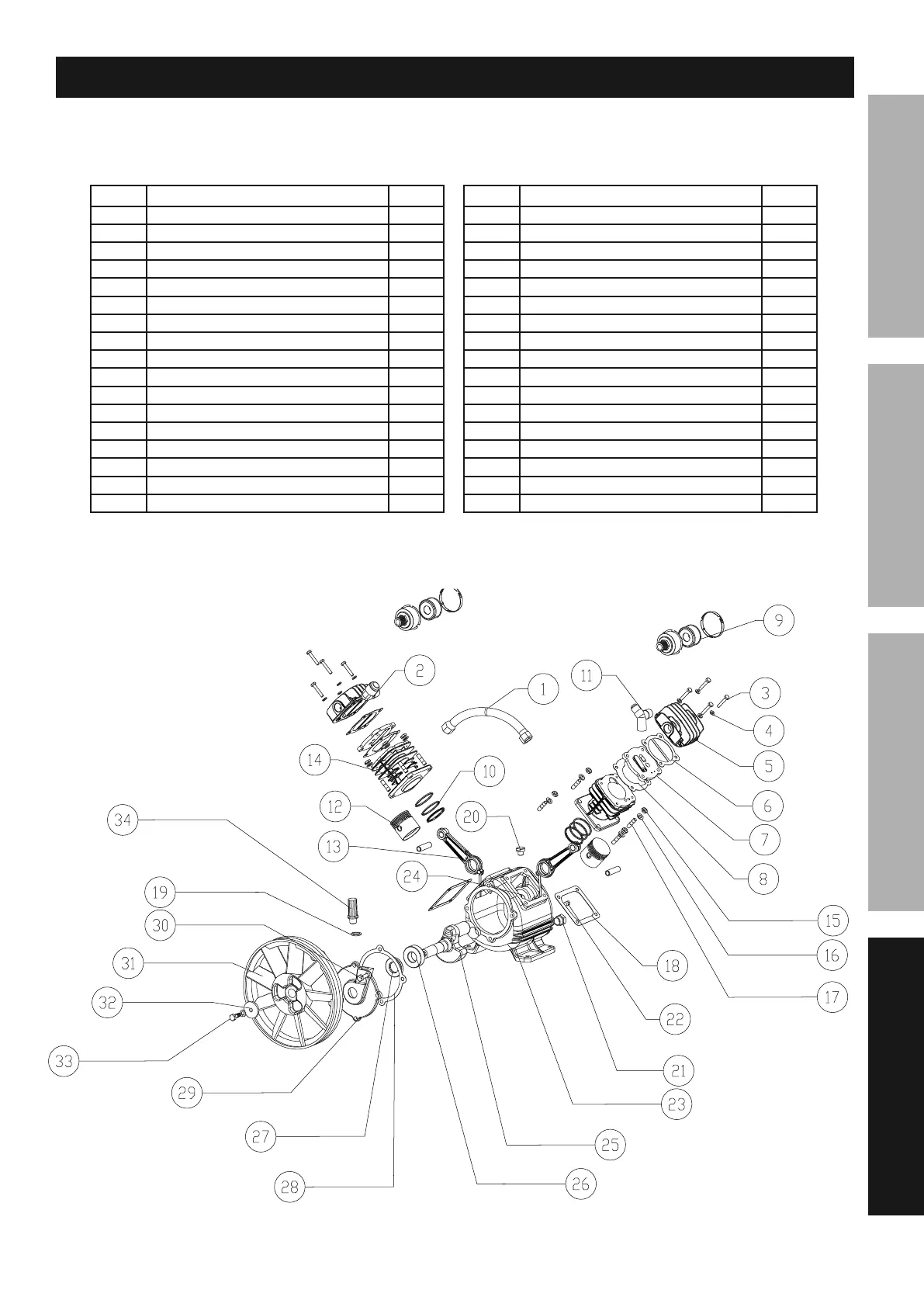

Page 15I(+)/,F7.1F5:)J2,0/1(.0K)*:,50,)F5::)LM===M=NNM<O?ODItem 58494
P"IG'QR"%$'G$"$SGT"#'P)U%P' %$P'"UU"'%V$
T5+/ X,0F+1*/1(. j/4
1 Tube with Compression Nut 1
2 Elbow 1
3 Socket Head Cap Screw, M6x40 8
4 Washer, M6 8
5 Cylinder Head 2
6 Cylinder Head Gasket 2
7 Valve Plate Assembly 2
8 Cylinder Gasket 2
9 Filter 2
10 Ring Set 2
11 Tee Fitting 1
12 Piston 2
13 Rod 2
14 Cylinder 2
15 Nut, M8 8
16 Lock Washer, M8 13
17 Stud Bolt, M8 8
T5+/ X,0F+1*/1(. j/4
18 Crankcase Gasket 2
19 Oil Breather Washer 1
20 Oil Fill Plug 1
21 Oil Sight Glass with O-Ring 1
22 Oil Drain Plug 1
23 Crankcase 1
24 Bearing 6204 1
25 Crankshaft 1
26 Bearing 6205 1
27 Oil Seal 1
28 Gasket Front Cover 1
29 Carrier 1
30 Bolt, M8 4
31 Flywheel 1
32 Flat Washer 1
33 Bolt, M8 1
34 Oil Breather 1
)T5+/0)U10/)5.6)X15E+59
