Page 9I(+)/,F7.1F5:)J2,0/1(.0K)*:,50,)F5::)LM===M=NNM<O?ODItem 58494
P"IG'QR"%$'G$"$SGT"#'P)U%P' %$P'"UU"'%V$

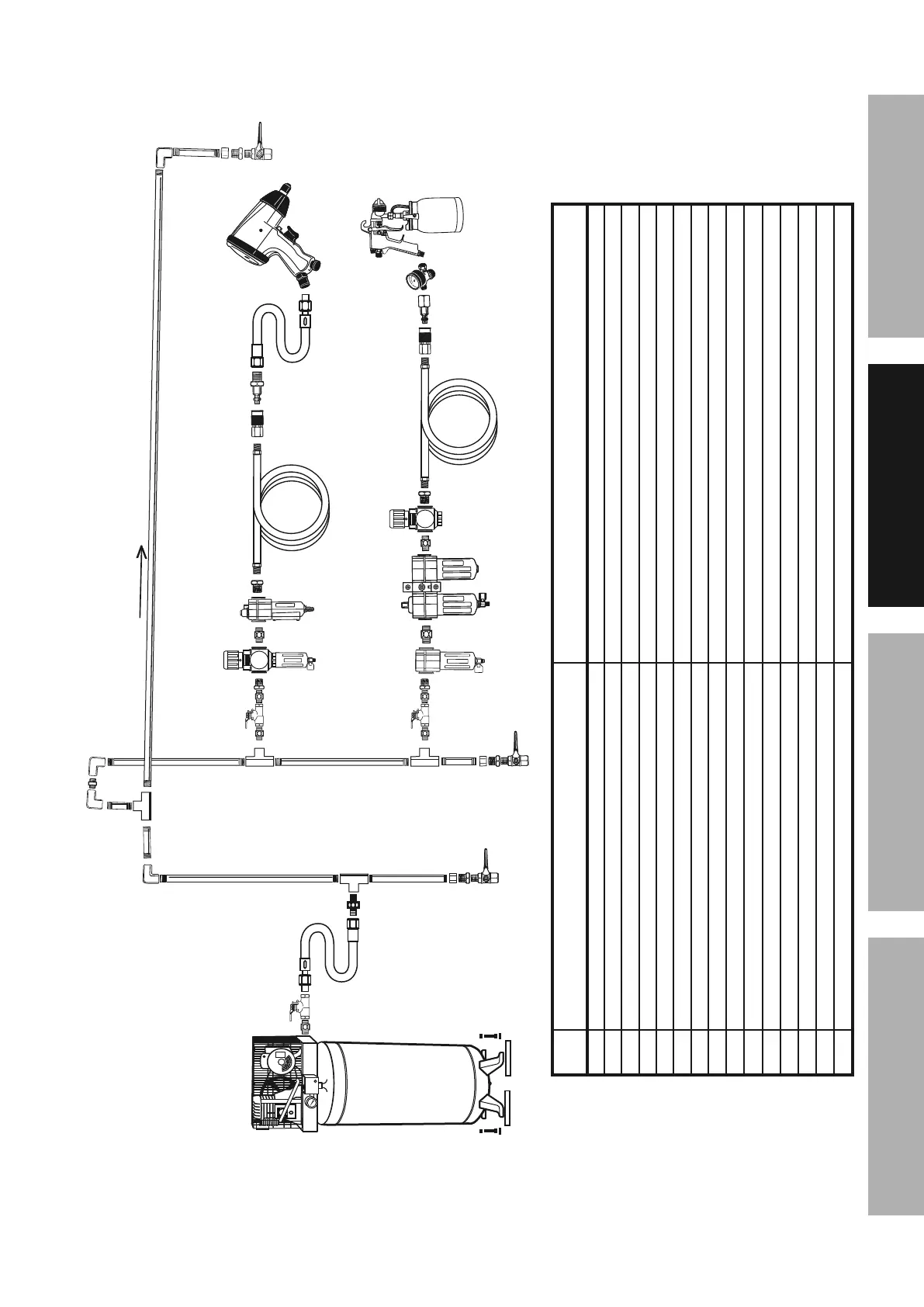

I1E2+,)X;))P/5/1(.5+4)"1+)P2**:4)P,/2*
N
L
L O
M
C C
Non-lubricated Tools
Lubricated Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B
B
A
A
C
D
X,0F+1*/1(. I2.F/1(.
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool
