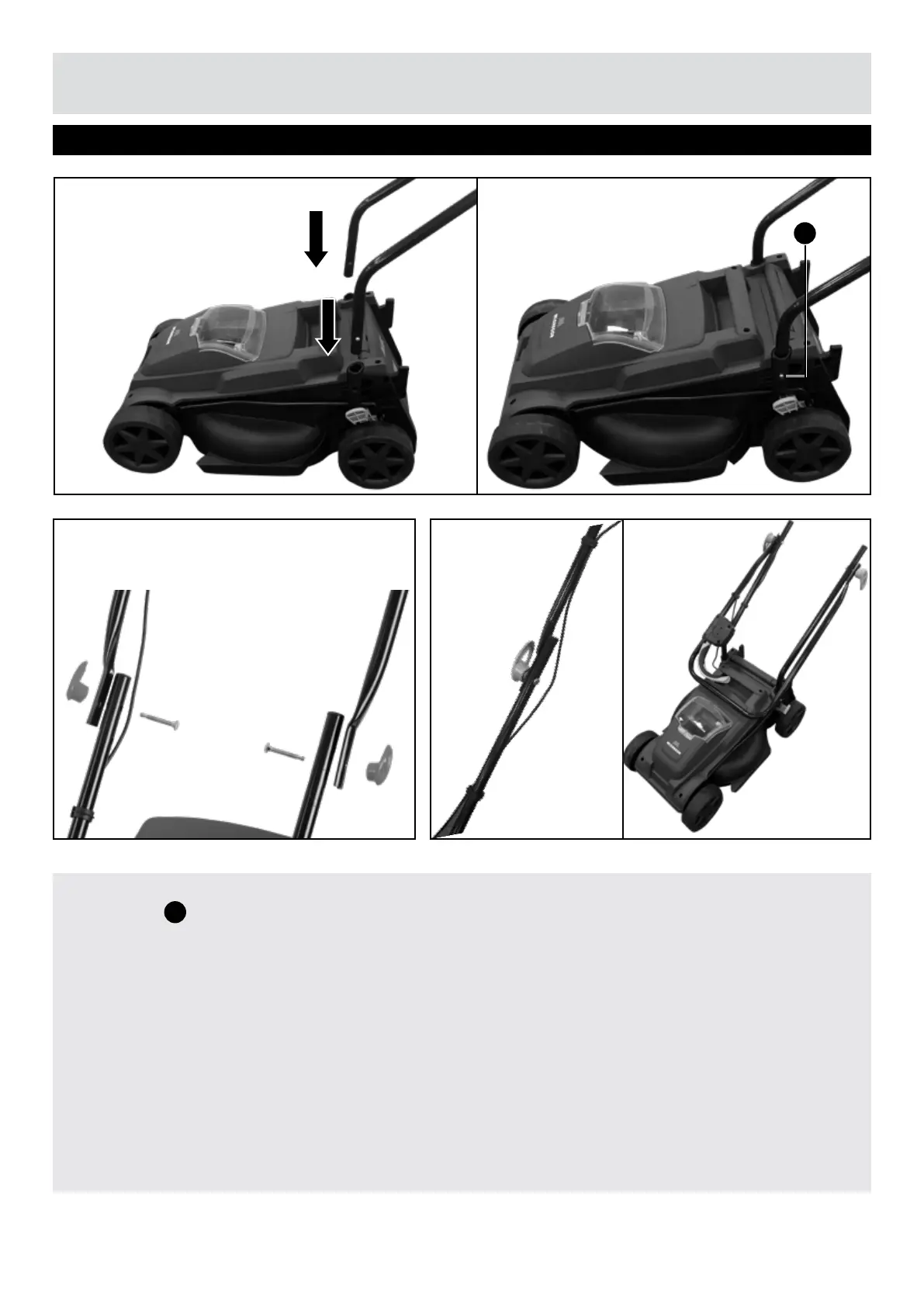

Step 1 - Assembling Handles
Assembly
1
• Insert the left and right lower handles into the slots of the housing. Ensure the locking pin button
(
1
) is secured into place.
NOTE! After assembly of the left and right lower handles, check that they are secure and cannot be
pulled out of the mower deck.
• Fix the top curved handle section to the lower handle bars. Use the bolts and wing nuts provided.
There are two possible height positions. Choose the one most suitable to the operator’s height.
• Clip the cable to the handle bar with the cable clip provided.
When the two wing nuts are loosened, the handle can be folded for easy storage. Ensure the power
cable is not caught between the folding sections.
