McIntosh C1100 - General Information and Connector Details; General Information Overview; Connector and Cable Information

4

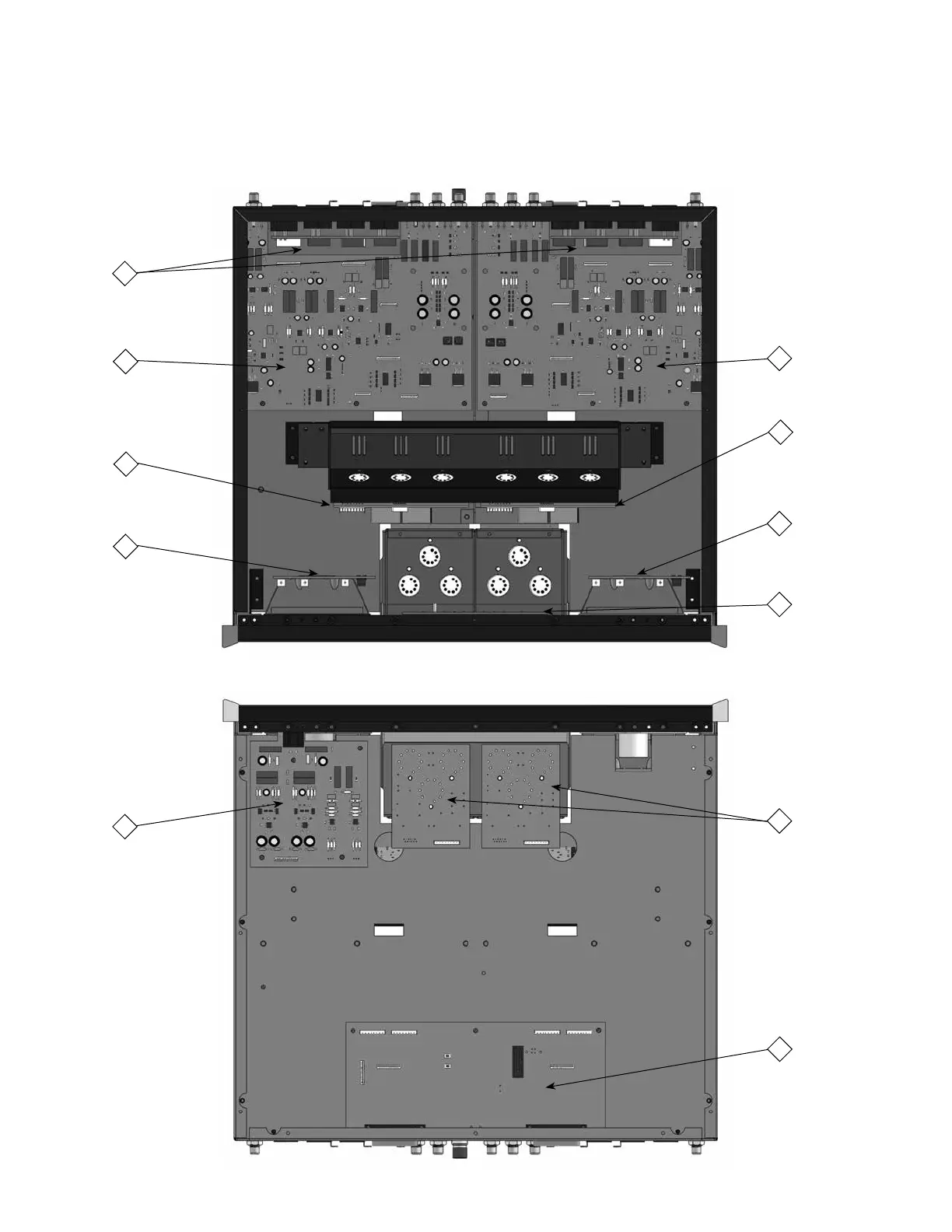

SECTION LOCATIONS
Top View
Bottom View
BALANCED I/O
PCB
4
LEFT
AMPLIFIER
PCB
2
RIGHT
AMPLIFIER
PCB
3
LEFT
PHONO
PCB
5
RIGHT
PHONO
PCB
6
LEFT
METER LIGHT
PCB
10
RIGHT
METER LIGHT
PCB
11
PANEL LIGHT
PCB
12
HEADPHONE
PCB
8
FRONT TUBE
PCB
7
CONTROL
PCB
9
