FRONT PANEL INFORMATION

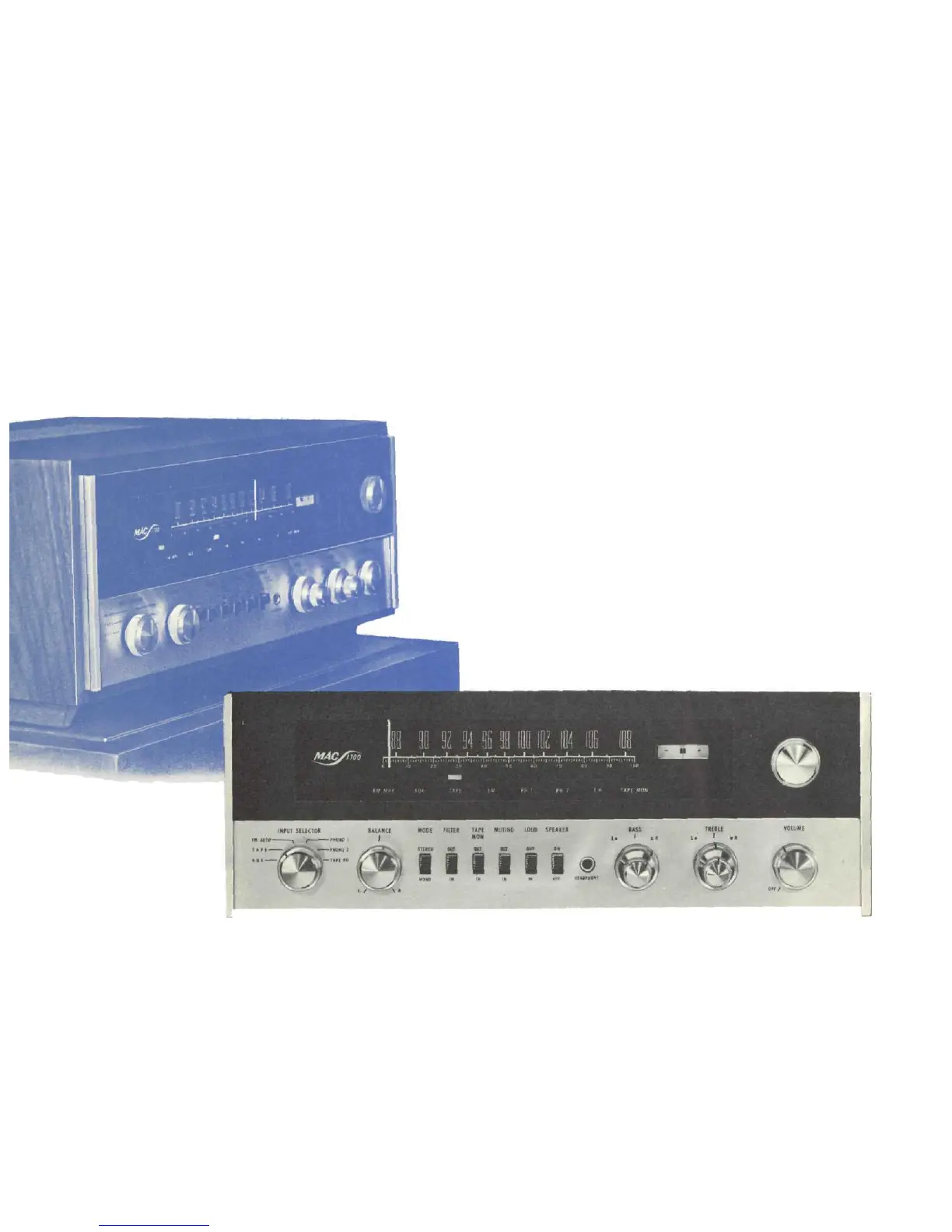

TUNING DIAL SCALES—The MAC 1700 has two dial scales.
The megacycle scale indicates the position of FM stations in the
88 to 108 megacycle FM band. The linear division of the 0-100
logging scale makes it easy to return to a station using a logging
scale number.
INDICATORS—The MAC 1700 has two indicators on the front
panel. One is the tuning meter. When an FM station is correctly
tuned the indicator will be in the black area of the meter. The
action of the TUNING indicator is independent of station signal
strength. The second indicator is the STEREO INDICATOR. The
STEREO INDICATOR will light only when the dial pointer crosses
a station broadcasting multiplex stereo.
VOLUME ON-OFF—Use the VOLUME control to adjust the vol-
ume to a desired listening level. Turn the VOLUME control clock-
wise to increase the volume. Full counterclockwise rotation turns
the unit off.
TREBLE—The TREBLE control is a dual control. The small knob
controls the treble in the left channel. The large knob controls
the treble in the right channel. The two knobs are friction
coupled. They can be adjusted together or separately. Turn
clockwise to increase treble. Turn counterclockwise to decrease
treble.
BASS—The BASS control is a dual control. The small knob con-
trols the bass in the left channel. The large knob controls the
bass in the right channel. The two knobs are friction coupled.
They can be adjusted together or separately. Turn clockwise to
increase bass. Turn counterclockwise to decrease bass.
