MAC 4100 UNIT OUTLINE (DOTTED)

MOUNTING SURFACE

MOUNTING PANEL

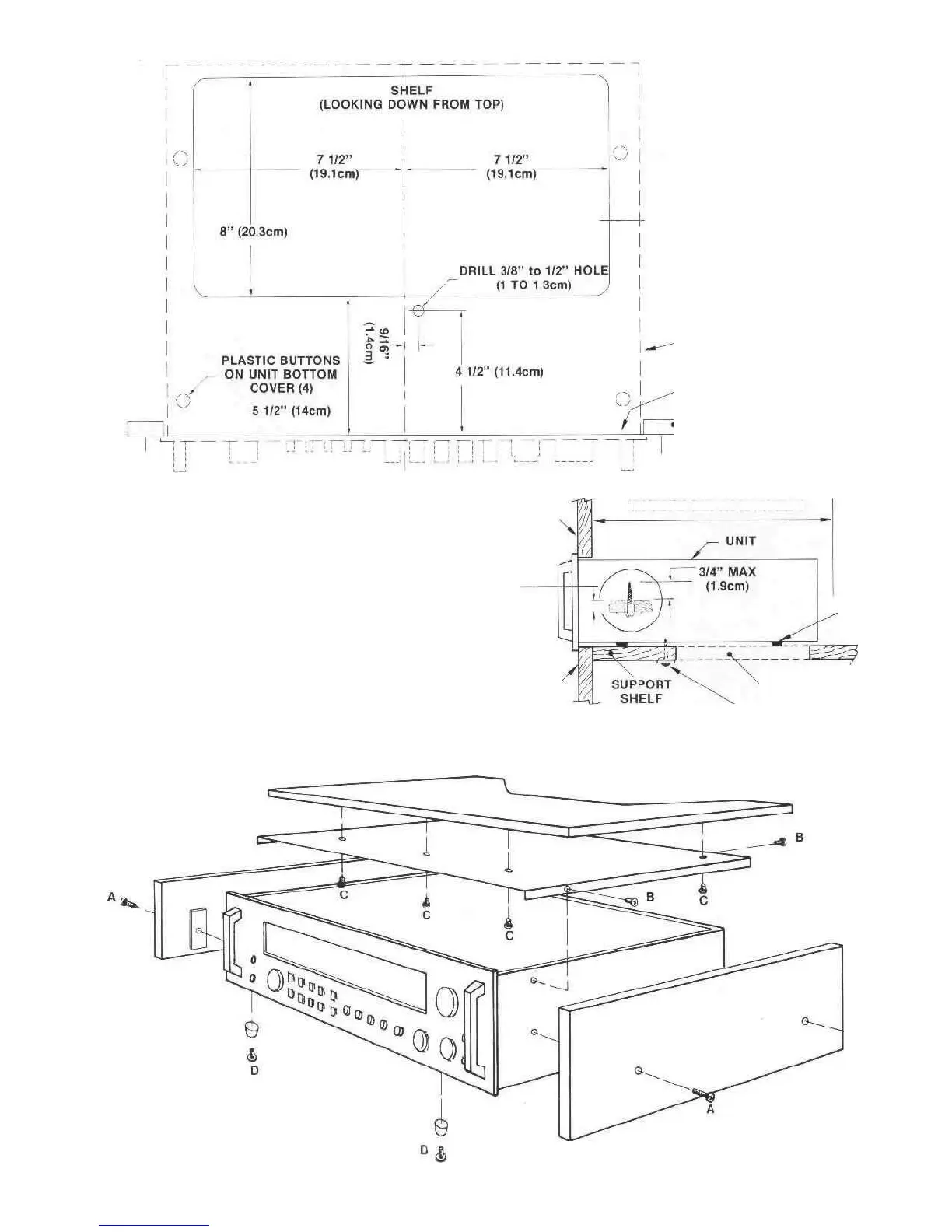

Fig. 2 Custom Cabinet Shelf Mounting Cutout.

MOUNTING

SURFACE

15" (36.1cm)

MINIMUM DEPTH REQUIRED

FOR 1/2" SHELF USE 1 1/4" SCREW

(1.3cm) (3.2cm)

FOR 3/4" SHELF USE 1 1/2" SCREW

(1.9cm) (3.8cm)

MOUNTING

PANEL

PLASTIC

BUTTONS

CUTOUT FOR

VENTILATION

SECURE UNIT

WITH SCREW AND

WASHER

Fig. 3 MAC 4100 Custom Mounting Profile

Fig. 4 MAC 4100 Enclosure Assembly
