1. Connect a Power Control Cable from the MDA1000
Power Control Out Jack to the POWER CONTROL IN
Jack on the McIntosh MCD1000.
Notes: 1. If the MCD1000 CD Transport is not
connected to a McIntosh MDA1000 D/A
Converter and instead connected to a
McIntosh A/V Control Center with digital
inputs, the MCD1000’s Power Control In
should be connected to the appropriate Power
Control Out Jack on the A/V Control Center.
2. When the MCD1000 and MDA1000 are
connected in a non-McIntosh Preamplifier
System, the Power Control Cable should be
connected from the MCD1000 Power Control
Out to the MDA1000 Power Control In.

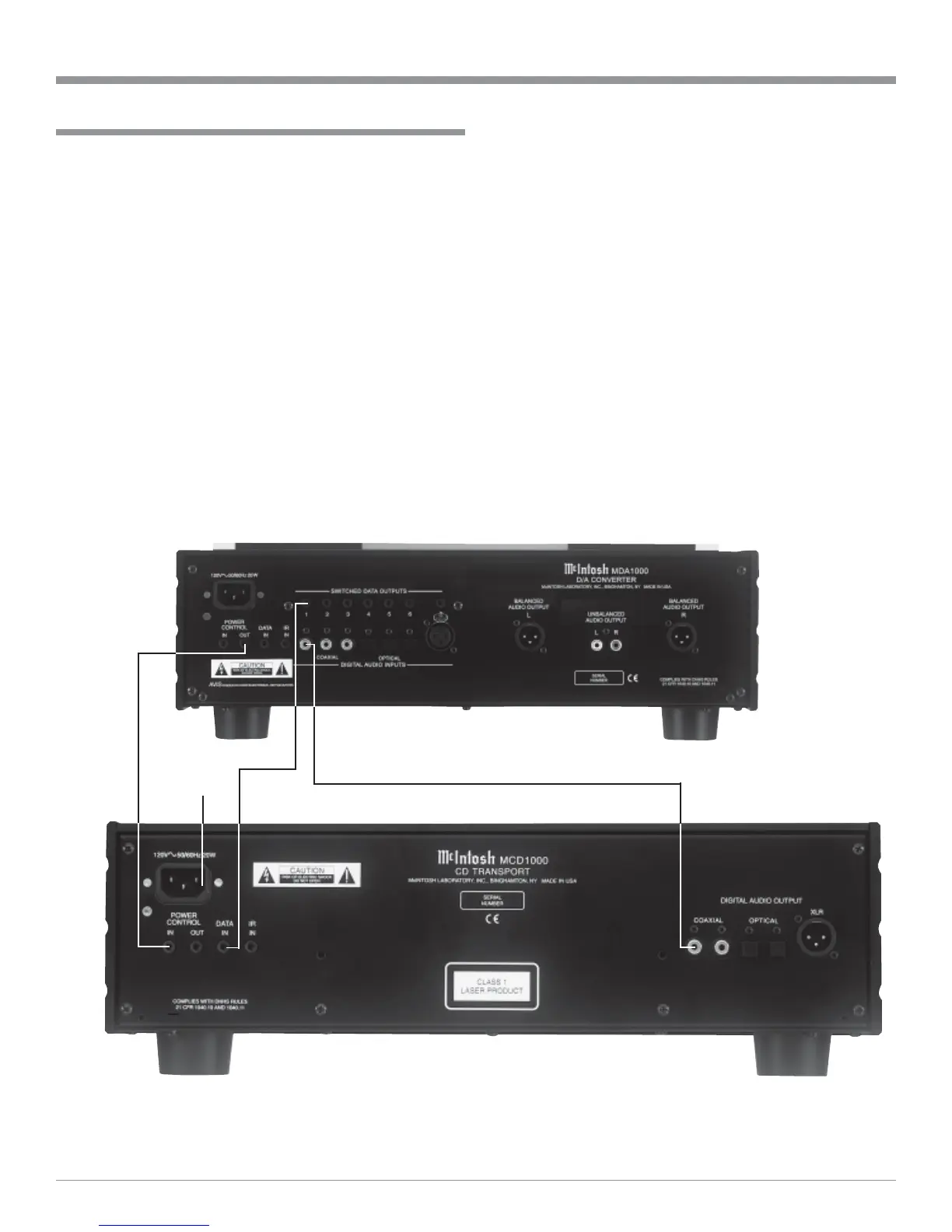

2. Connect a Data Control Cable from the MDA1000
Line 1 Switched Data Output Jack to DATA IN Port on
the McIntosh MCD1000.
McIntosh MDA1000 D/A Converter
To AC Outlet
Note: If the MCD1000 CD Transport is not connected to
a McIntosh MDA1000 D/A Converter and instead
connected to a McIntosh A/V Control Center with
digital inputs, the MCD1000’s Data In should be
connected to the appropriate Data Out Jack on the
A/V Control Center.
3. Connect a Coaxial Digital Cable from the MDA1000
Coaxial 1 Digital Audio Input to either COAXIAL
DIGITAL AUDIO OUTPUT Jack on the MCD1000.
Note: When the MCD1000 CD Transport is connected to
a McIntosh MDA1000 D/A Converter the Digital
Optical Output or the Balanced Digital XRL
Output may be used instead of the Coaxial Digital
Output. If MCD1000 CD Transport is connected to
a McIntosh A/V Control Center with digital inputs
either the Coaxial or Optical Outputs my be used.
4. Connect the MCD1000 Power Cord to a live AC outlet.
