Dimensions
Dimensions
The following dimensions can assist in determining the
best location for your MCD301. There is additional in-
formation on the next page pertaining to installing the
MCD301 into cabinets.
31%02:38
.
17-1/2"
44.45cm
4-5/8"
11.75cm
6"
15.24cm
14-1/2"
36.83cm
15-7/8"
40.32cm
3/16"
0.48cm
4-13/16"
12.22cm
10-1/2"
26.67cm
13-1/4"
33.65cm
17"
43.18cm
5/8"
1.59cm

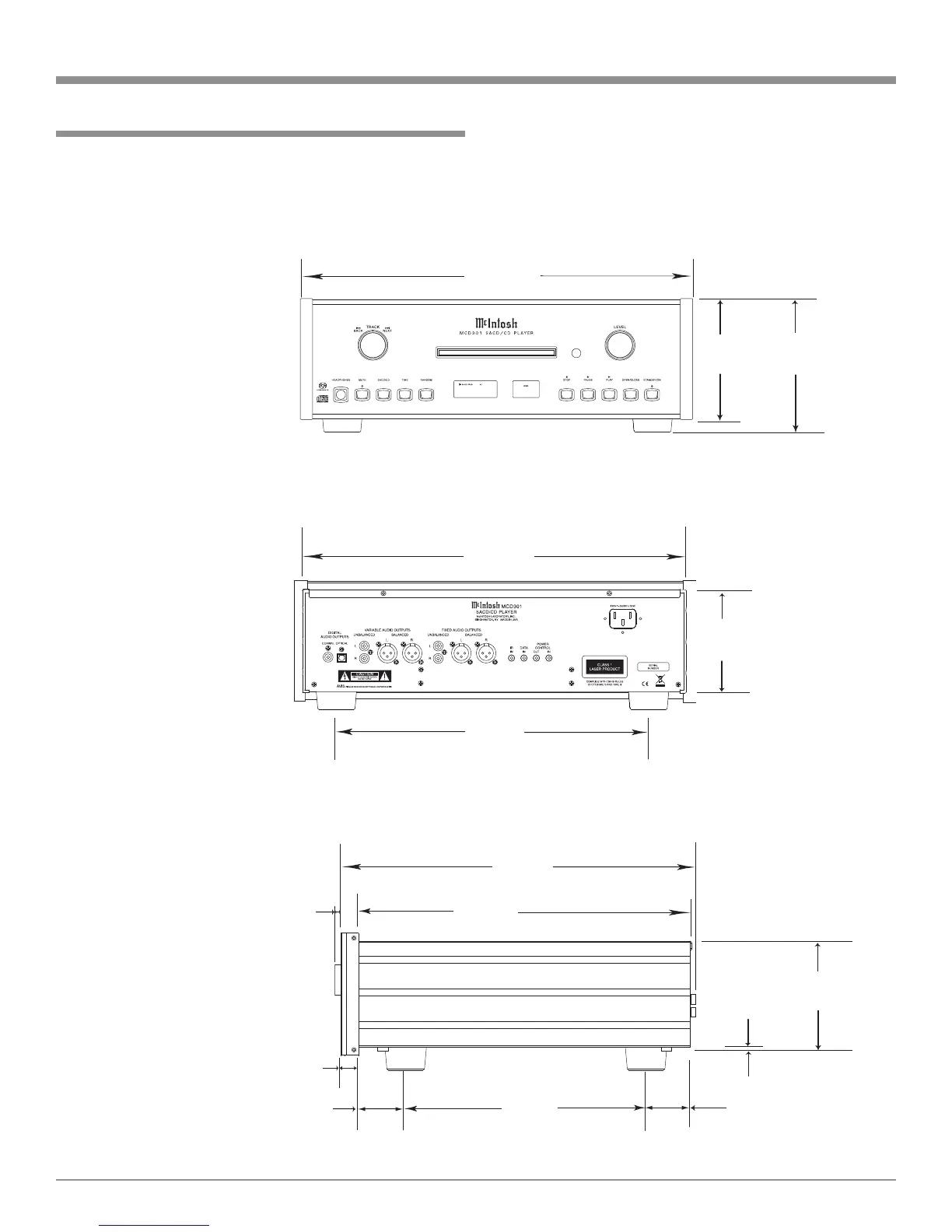

Front View of the MCD301
Rear View of the MCD301
Side View of the MCD301
5-3/8"
13.69cm
13/16"
2.06cm
2"
5.08cm
1-15/16"
4.92cm
