MCD550
REPACKING INSTRUCTIONS
45

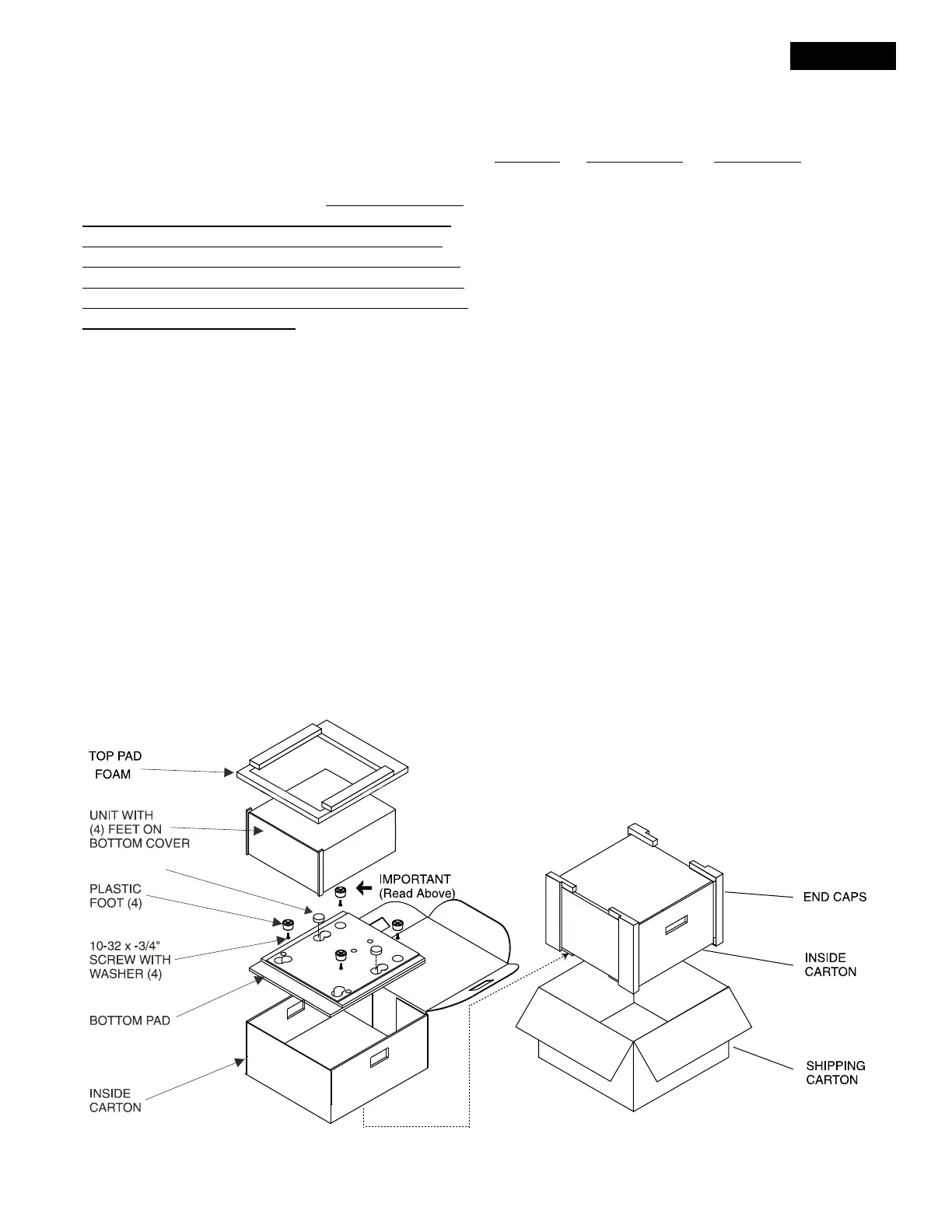

In the event it is necessary to repack the
equipment for shipment, the equipment must be
packed exactly as shown below. It is very important
that the four plastic feet are attached to the bottom of
the equipment. Four 1/4 - 20x2-1/4 inch screws and
washers must be used to fasten the unit securely to the
bottom pad and wood skid. This will ensure the proper
equipment location on the bottom pad. Failure to do this
will result in shipping damage.
Use the original shipping carton and interior
parts only if they are all in good serviceable con-
dition. If a shipping carton or any of the interior
part(s) are needed, please call or write Customer
Service Department of McIntosh Laboratory. Refer
to page 3. Please see the Part List for the correct
part numbers.
Quantity Part Number Description
1 033838 Shipping carton only
4 033837 End cap
1 033836 Inside carton only
1 034414 Inner carton foam
top pad
1 034301 Bottom pad
2 034446 Foam plug
4 017937 Plastic foot
4 400159 #10-32 x 3/4” screw
4 404080 #10 Flat washer
