McIntosh MHT200

113

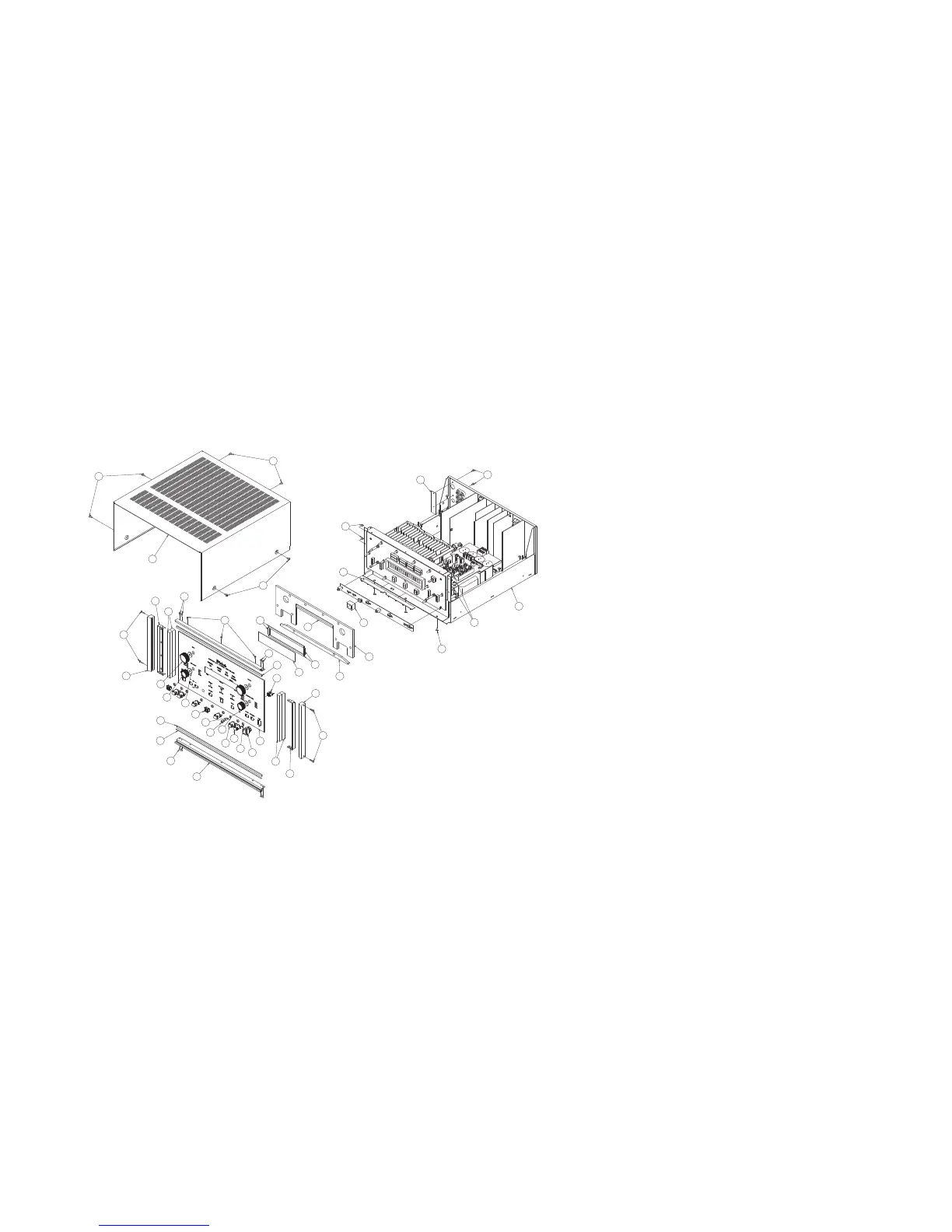

MHT200 EXPLODED VIEW and PARTS LIST
1 016489 GLASS
2 148073 SWITCH DPDT ROCKER
3 017531 PUSHBUTTON ASSY RED
4 017517 PUSHBUTTON ASSY BLK
5 078033 O-RING
6 017938 BEZEL PUSHBUTTON
7 017852 PUSHBUTTON BLK
8 078032 O-RING
9 017741 RECEPTACLE PUSHBUTTON
10 017854 BEZEL HEADPHONE
11 049600 ASSY KNOB 25.5mm
12 104017 WASHER FELT
13 049598 ASSY KNOB 35mm
14 018706 EXTRUSION BOTTOM
15 094016 TAPE FOAM 1/4 X 1/8
16 098113 CORD DIAL .027 BLACK BRAID SILK
17 100149 SCREW MACH 6-32 X 1/4 FL U/H ST
18 018705 EXTRUSION TOP
19 101172 SCREW TC 6-32 X 1/4 PH FL U/C
20 094360 TAPE FOAM 1/2 X 1/2
21 004939 BRACKET EXTRUSION
22 018615 END CAP 9”
23 101042 SCREW TS 4-40 X 1/2 FILLISTER
24 017738 PLEXI FILTER
25 094017 TAPE FOAM 1/4 X1/4
26 017851 PUSHBUTTON DISPLAY PLEXI
27 017850 PLEXIGLAS LOGO/TRIM/SURROUND
28 101054 SCREW TAPTITE 6-32 X 1/4 PH PN BLK
29 005163 TOP COVER
30 101078 SCREW TAP 8-32 X 5/16 PH PN BLK
31 320143 MHT200 CONTROLLER SUBASSY
32 101109 SCREW TAPTITE 6-32 X 5/16 PH PN BLK
33 094443 SENSOR GASKET
34 017218 PCB STIFFENER
35 005078 REAR PANEL PLUG
35
32
34
33
32
15
15
29
30
30
28
31
28
28
25
27
26
15
15
24
17
17
19
20
21
22
23
9
22
23
21
20
16
17
14
8
13
11
12
1
5
3
2
4
10
7
6
(3X)
(8X)
(2X)
(5X)
(4X)
(2X)
(2X)
