McIntosh MHT200

111 112
MHT200
TOP

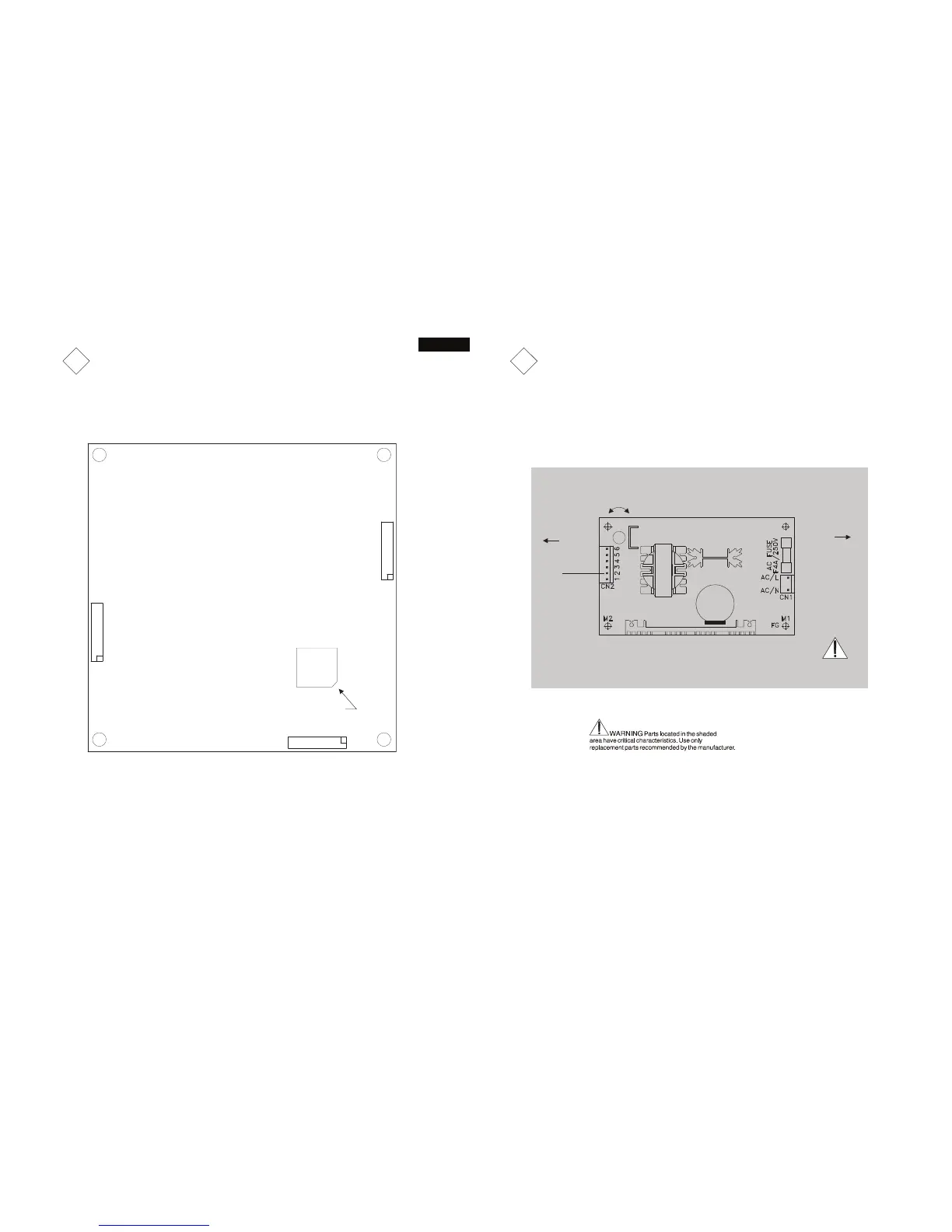

COMPONENT SIDE VIEW
A
B
C
IC1
FLASH
IC
IC1
133506SP = BLANK IC
133507SP = MHT200 V6.44 PROGRAMMED IC
NOTE BEVELED CORNER
TOP
REAR
PANEL
FRONT
PANEL
SET R1 FOR 5.3VDC AT PIN 2 OF CONNECTOR CN2
+5.3VDC
R1
LOWER HIGHER
5.3V
ADJUSTMENT
DSP MODULE 320166
15
BACKUP POWER SUPPLY 320149
16
