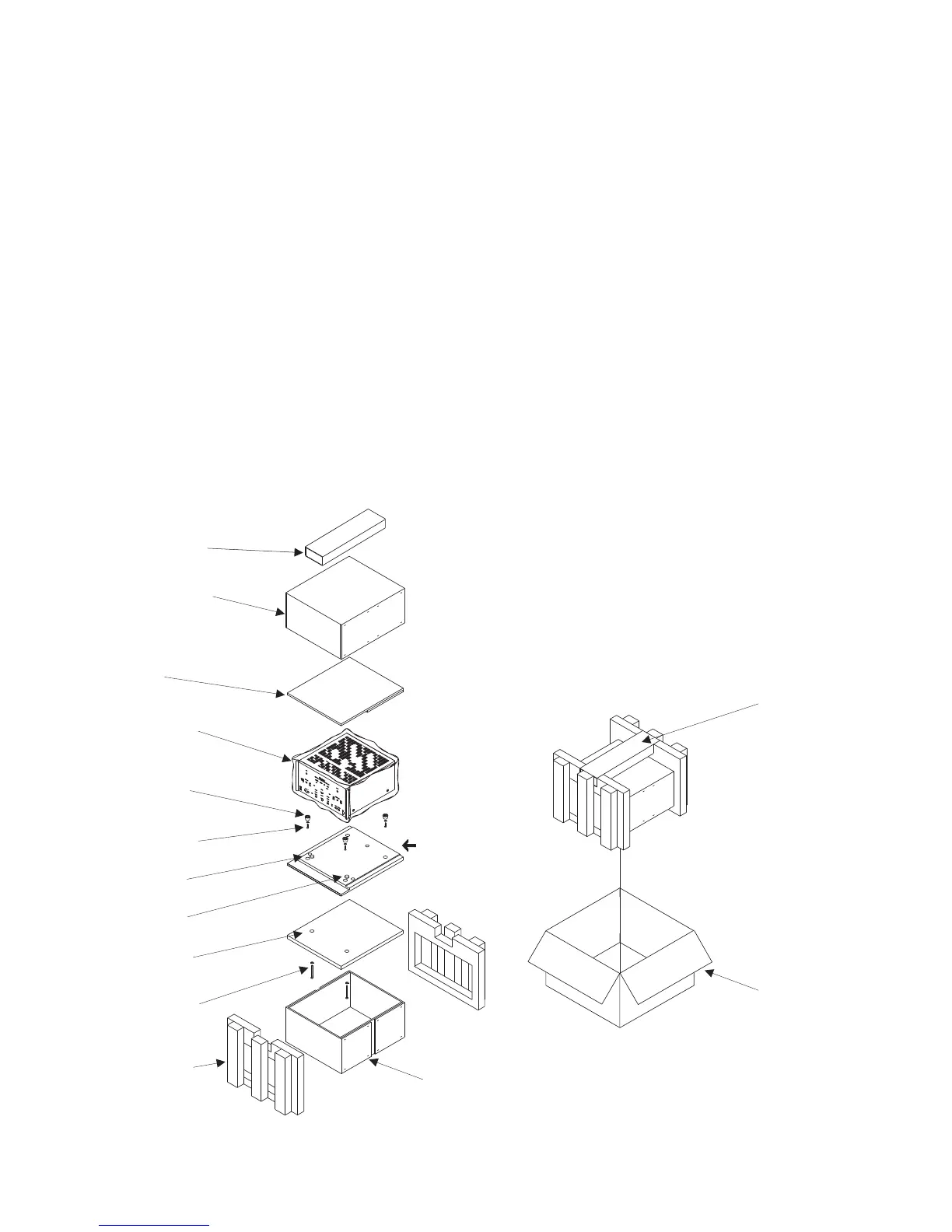

In the event it is necessary to repack the unit
for shipment, the unit must be packed exactly as
shown below.
If a shipping carton or any of the interior parts
is needed, please call or write the Customer Service
Department of McIntosh Laboratory. Order parts from
the accompanying list by part number.
Use the original shipping carton and interior
parts only if they are in good serviceable condition.
IMPORTANT - The four plastic feet must be
attached to the bottom of the unit so they will locate in
the four holes of the bottom pad. Two #10 x 2-1/4"
screws and washers must be used to fasten the unit
securely to the bottom pad and wood skid. Failure to
do this will result in shipping damage.
Qty. Part No. Description
1 033160 Slit scored wrap
1 034198 Inner carton top
1 033725 Top pad
4 017218 Plastic foot (unit)
1 033739 Poly bag
4 100159
4 104083
1 034197 Bottom pad
2 017218 Plastic foot (spacer)
1 034196 Shipping skid
2 101169 #10 x 2-1/4” Wood screw
2 104033 #10 x 1-3/4" Flat washer
2 034159 Foam end caps
1 034158 Shipping carton
1 034199 Inner carton bottom
#10-32 x 3/4" Machine screw
#10 x 7/16" Flat washer
SHIPPING
CARTON
SLIT SCORE
WRAP
INNER
CARTON TOP
TOP
PAD
POLY BAG
WITH UNIT
INSIDE
#10 -32 x 3/4”
SCREW w/
WASHER (4)
BOTTOM
PAD
PLASTIC
FOOT (2)
SHIPPING
SKID
#10 x 2-1/4
SCREW w/
WASHER (2)
FOAM
END CAP (2)
PLASTIC
FOOT (4)
INNER
CARTON BOTTOM
IMPORTANT
(Read Above)
MICROPHONE
REPACKING INSTRUCTION
115
