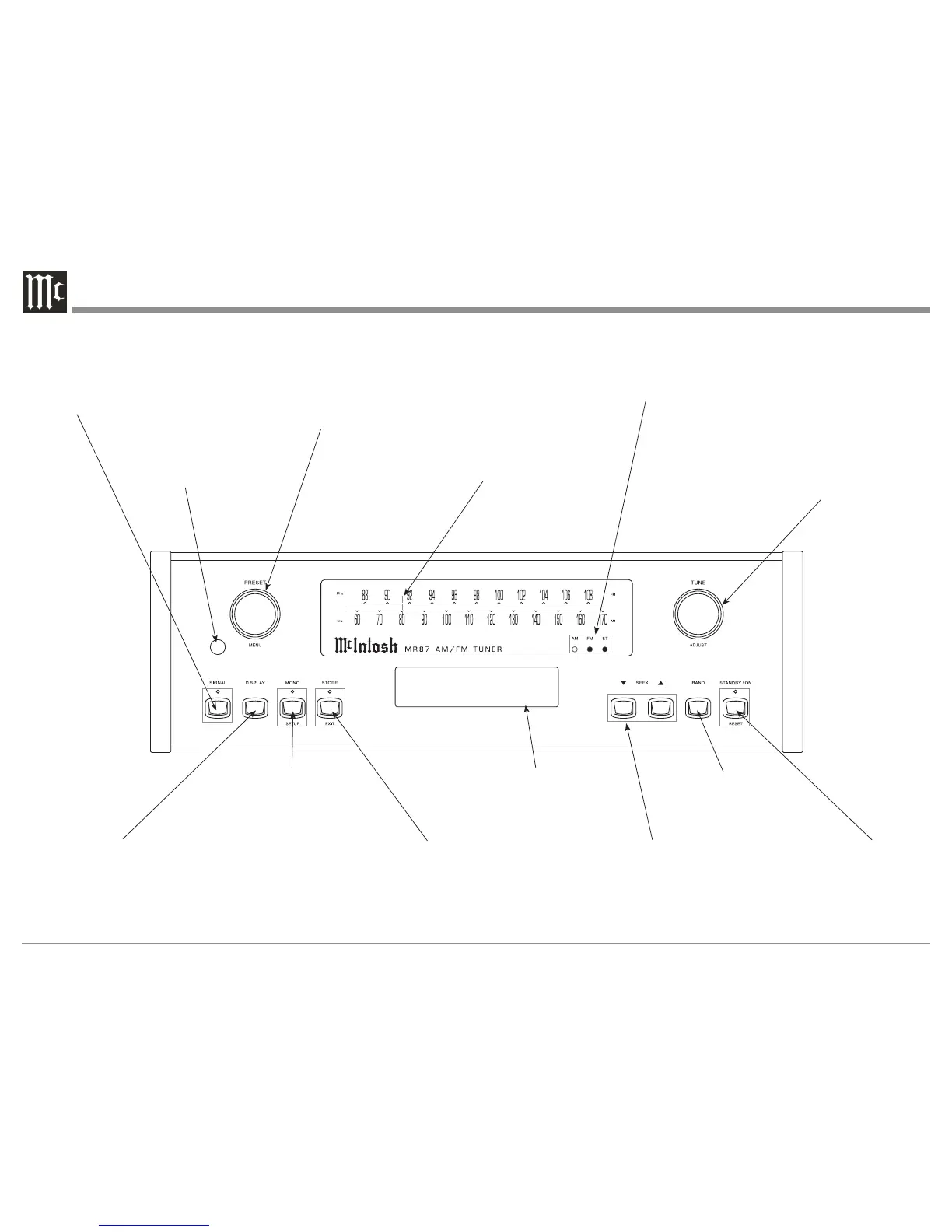

Front Panel Displays, Controls, and Push-buttons
IR Sensor receives
commands from a
Remote Control
PRESET/MENU Control selects
Presets for listening or storing
the desired radio station. Also
used to select various menus
when in the setup mode
SIGNAL Push-button with
indicator, activates display
of multipath interference
and background noise level
Electronic Pointer Indicates
the FM and AM Station
tuning dial location
TUNE/ADJUST Control selects
the desired radio station. Also
used to select various items
when in the setup mode
Indicates the active Tuning Band
AM or FM, also indicates STE-
REO reception
INFORMATION DISPLAY
indicates various Opera-
tional Functions and Setup
Mode Settings
MONO/SETUP Push-button
with indicator, combines
the Left and Right Chan-
nel signals for Monophonic
Sound on FM Stations, used
to enter/exit the Setup Mode
DISPLAY selects from various
information when transmitted by the
Radio Station such as program type,
music format artist/song name and is
shown on the Information Display
STORE/EXIT Push-button
with indicator, used to enter and
clear stations in Preset Men-
mory; it is also used for various
functions in the Setup Mode.
STANDBY/ON
Push-button with in-
dicator, switches the
MR87 ON or OFF
(Standby) and resets
the microprocessors
SEEK Push-buttons,
used to find the next
station
BAND Push-button
is used to select the
AM or FM tuning
band
