McIntosh MTI100 - Page 3

MTI100

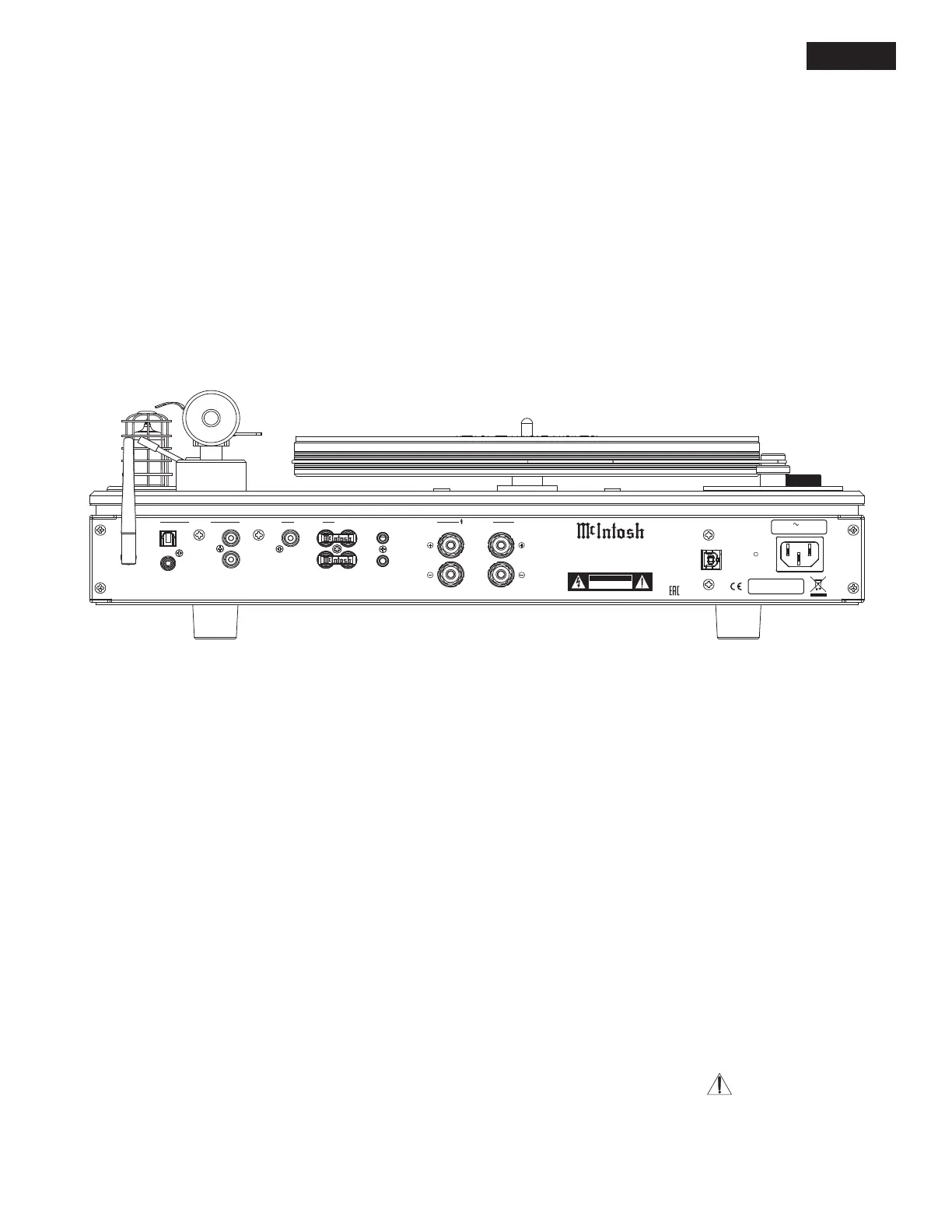

REAR PANEL
3
COAX
OPTICAL
120V 50/60Hz
50W
BLUETOOTH
ANTENNA
L
R
AUX
MAIN
OUT
PWR AMP
IN
CCAAUUTTIIOONN
RRIISSKK OOFF EELLEECCTTRRIICC SSHHOOCCKK
DDOO NNOOTT OOPPEENN
SERIAL
NUMBER
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
OUTPUTS
TRIGGER
OUT
SERVICE PORT
MTI100
INTEGRATED TURNTABLE
McINTOSH LABORATORY, INC., BINGHAMTON, NY
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
OUTPUTS
L
R
INPUTS
DATA
OUT
LR
SUB (MONO)
This device complies with Part 15 of the FCC Rules.
Its operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Contains FCC ID: SSS-BC127-X
Contains IC: 11012A-BC127
CAN ICES-3(B)/NMB-3(B)
CLASS 2 WIRING
1. Unless otherwise noted, all voltages indicated on the
schematics are measured under the following conditions:
a. AC input at rated voltage marked on rear panel.
b. All voltages are +/-10% with respect to ground. A
high impedance (10 megaohm) voltmeter must be used.
2. Unless otherwise specied:
a. Resistor values are in ohms.
b. Capacitor values are microfarads (uF).
c. Inductor values are in microhenries (uH)
3. On PC board drawings, Square pad indicates:
a. Polarized Capacitors - Positive
b. Diodes - Cathode
c. Others - Pin 1
4. WARNING
Parts marked with the symbol have critical
characteristics. Use only replacement parts recom-
mended by the manufacturer.
5. Use McIntosh Remote Control Model HR091.
NOTES
