McIntosh MVP861 - Remote Control Push-Buttons

DISPLAY 050115
5
21 22
MVP861
PARTS LIST

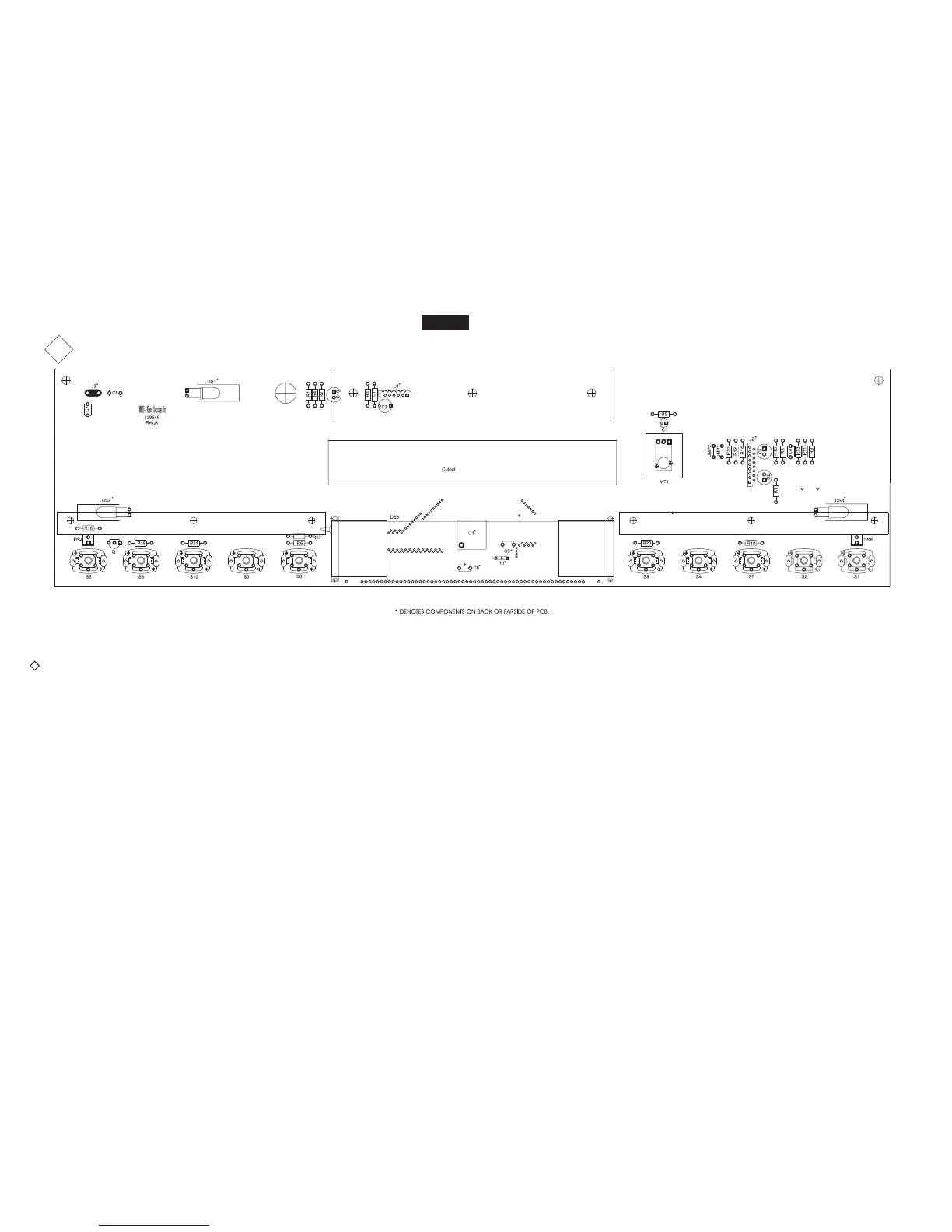

MAIN PCB 050114
C1 CAP MONO 33PF 200V 5%NPO T&R 061307
C2 CAP ELECT 220UF 25V 066507
C3 CAP ELECT 2200UF 25V 20% 066441
C4 CAP MONO 100PF 100V 10% NPO 061300
C5 CAP MONO 100PF 100V 10% NPO 061300
C6 CAP MONO .1uF 50V 20% Z5U 061305
C7 CAP MONO 100PF 100V 10% NPO 061300
C8 CAP MONO .1uF 50V 20% Z5U 061305
C9 CAP MONO 100PF 100V 10% NPO 061300
C10 CAP MONO .1uF 50V 20% Z5U 061305
C11 CAP MONO .1uF 50V 20% Z5U 061305
C12 CAP ELECT 10UF 16V 066555
C13 CAP MONO .1uF 50V 20% Z5U 061305
C14 CAP ELECT 47UF 16V 066380
C15 CAP ELECT 47UF 16V 066380
C16 CAP ELECT 47UF 16V 066380
C17 CAP ELECT 47UF 16V 066380
C18 CAP ELECT 10UF 16V 066555
C19 CAP ELECT 10UF 16V 066555
C20 CAP MONO .1uF 50V 20% Z5U 061305
C21 CAP MONO .1uF 50V 20% Z5U 061305
C22 CAP MONO 560PF 200V 5% 061308
C23 CAP MONO 560PF 200V 5% 061308
C24 CAP MONO 560PF 200V 5% 061308
C25 CAP MONO 560PF 200V 5% 061308
C26 CAP ELECT 47UF 16V 066380
C27 CAP ELECT 47UF 16V 066380
C28 CAP ELECT 10UF 16V 066555
C29 CAP MONO .1uF 50V 20% Z5U 061305
C30 CAP MONO 100PF 100V 10% NPO 061300
C31 CAP MONO 100PF 100V 10% NPO 061300
C32 CAP MPF 0.0022UF 5% 63VDC 064304
C33 CAP MPF 0.0022UF 5% 63VDC 064304
C34 CAP MPF 0.0022UF 5% 63VDC 064304
C35 CAP MPF 0.0022UF 5% 63VDC 064304
C36 CAP MPF 0.0022UF 5% 63VDC 064304
C37 CAP MPF 0.0022UF 5% 63VDC 064304
C38 CAP MPF 0.0022UF 5% 63VDC 064304
C39 CAP MPF 0.0022UF 5% 63VDC 064304
C40 CAP MONO 220PF 100V 10% NPO 061301
C41 CAP MONO 220PF 100V 10% NPO 061301
C42 CAP MONO 220PF 100V 10% NPO 061301
C43 CAP MONO 220PF 100V 10% NPO 061301
C44 CAP PF 0.001UF 5% 63VDC 064300
C45 CAP PF 0.001UF 5% 63VDC 064300
C46 CAP PF 0.001UF 5% 63VDC 064300
C47 CAP PF 0.001UF 5% 63VDC 064300
C48 CAP PF 0.001UF 5% 63VDC 064300
C49 CAP PF 0.001UF 5% 63VDC 064300
C50 CAP PF 0.001UF 5% 63VDC 064300
C51 CAP PF 0.001UF 5% 63VDC 064300
C52 CAP ELECT 47UF 16V 066380
C53 CAP ELECT 47UF 16V 066380
C54 CAP ELECT 47UF 16V 066380
C55 CAP ELECT 47UF 16V 066380
C56 CAP MONO .1uF 50V 20% Z5U 061305
C57 CAP MONO .1uF 50V 20% Z5U 061305
C58 CAP MONO .1uF 50V 20% Z5U 061305
C59 CAP ELECT 10UF 50V 066445
C60 CAP ELECT 10UF 50V 066445
C61 CAP MONO .1uF 50V 20% Z5U 061305
C62 CAP ELECT 47UF 50V 066215
C63 CAP ELECT 220UF 25V 066507
C64 CAP ELECT 220UF 25V 066507
C65 CAP ELECT 220UF 25V 066507
C66 CAP ELECT 220UF 25V 066507
C67 CAP ELECT 47UF 50V 066215
C68 CAP ELECT 220UF 50V 20% 066254
C69 CAP MONO .1uF 50V 20% Z5U 061305
C70 CAP MONO .1uF 50V 20% Z5U 061305
C71 CAP MONO .1uF 50V 20% Z5U 061305
C72 CAP MONO .1uF 50V 20% Z5U 061305
C73 CAP ELECT 47UF 35V 066446
C74 CAP MONO .1uF 50V 20% Z5U 061305
C75 CAP ELECT 3300UF 35V 066509
C76 CAP ELECT 3300UF 35V 066509
C77 CAP MONO .1uF 50V 20% Z5U 061305
C78 CAP MONO .1uF 50V 20% Z5U 061305
C79 CAP MONO .1uF 50V 20% Z5U 061305
C80 CAP MONO .1uF 50V 20% Z5U 061305
C81 CAP MONO .1uF 50V 20% Z5U 061305
C82 CAP MONO .1uF 50V 20% Z5U 061305
C83 CAP MPF 0.033UF 100V 10% 064427
C84 CAP ELECT 220UF 50V 20% 066254
C85 CAP MONO .1uF 50V 20% Z5U 061305
C86 CAP MONO .1uF 50V 20% Z5U 061305
C87 CAP MONO .1uF 50V 20% Z5U 061305
C88 CAP ELECT 47UF 35V 066446
C89 CAP MONO .1uF 50V 20% Z5U 061305
C90 CAP MONO .01UF 50V 20% X7R 061304
C91 CAP MONO 1000PF 50V 10% NPO 061303
Ref. No.
Description Part No.
2
